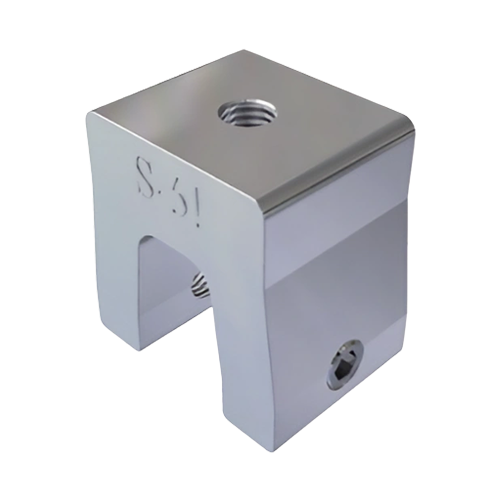

S-5! S-5-R465 Standing Seam Clamp Mini NB (No Bolt)
MPN No: S-5-R465 Mini NB
Expected ship date Jan 15 - 22
In Stock
$9.19
S-5! S-5-R465 Standing Seam Clamp Mini NB (No Bolt)
S-5! S-5-R465 Standing Seam Clamp Mini NB (No Bolt)
Regular price
$9.19
New
300 IN STOCK
S-5! S-5-R465 Standing Seam Clamp Mini NB (No Bolt)
S-5! S-5-R465 Standing Seam Clamp Mini NB (No Bolt)
Available
MPN No: S-5-R465 Mini NB
Regular price
$9.19
Expected ship date Jan 15 - 22
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$9.19
S-5! S-5-R465 Standing Seam Clamp Mini NB (No Bolt)
MPN No:
S-5-R465 Mini NB
Expected ship date Jan 15 - 22
S-5! S-5-R465 Standing Seam Clamp Mini NB (No Bolt)
The S-5-R465 Mini NB is a non-penetrating standing-seam clamp engineered specifically for bulb-shaped ribs such as Zambelli RIB-ROOF® 465, McElroy Mirage II, and similar profiles. The Mini NB variant omits the top bolt (“No Bolt”) and uses opposing round-point setscrews that grip beneath the seam’s top bulb for high holding strength—ideal for rail attachments, cable trays, snow guards, and other light-/medium-duty accessories.
Key Benefits
Profile-Matched Fit: Designed for RibRoof-style seams (e.g., RIB-ROOF 465, Mirage II) for reliable clamping without roof penetrations.
High Holding Strength: Opposing round-point setscrews engage under the top bulb to maximize grip while preserving coatings/warranties.
Compact “Mini” Form: Lighter, lower-profile alternative to the standard R465—perfect for accessories that don’t need the full clamp size.
Special Technology
Round-Point Setscrews: Dimple the seam without piercing—protecting the weathering surface and finishes.
Top M8 Thread (NB = No Bolt): Mini version provides an M8 threaded hole for hardware/rail interfaces; NB ships without the M8 bolt.
Warranty
S-5! Lifetime Limited Warranty (per manufacturer program).
Best Uses
Standing-Seam Metal Roofs (RibRoof-type): Solar rail feet, cable tray, conduit, snow retention, signage, and light equipment mounts.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | S-5-R465 Mini NB |
| Roof / Seam Type | Bulb-shaped standing seams (e.g., Zambelli RIB-ROOF® 465, McElroy Mirage II) |
| Attachment Method | Non-penetrating opposing round-point setscrews (under top bulb) |
| Setscrews | (2) round-point, T-30 Torx (Mini); bit tip typically included with box qty |
| Top Thread | M8 (Mini); NB variant ships without M8 bolt |
| Materials | Aluminum clamp body; stainless steel setscrews |
| Typical Applications | Solar rails, snow guards, cable/conduit, light fixtures, accessories |
| Finish | Mill (natural aluminum) |
| Compatibility Notes | Use only on compatible R465-type seams; verify exact profile before install |
| Weight | 0.26 lb |
| Standards | Factory load-tested; round-point tech preserves panel warranties |
About S-5!:
S-5! is a leading manufacturer of metal roof attachment systems for solar and other rooftop applications. Founded in 1992, the company specializes in non-penetrating clamps and mounts engineered for durability, ease of installation, and long-term roof integrity.
