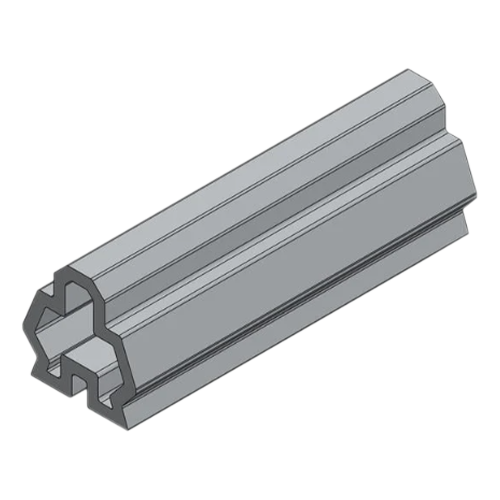

S-5! S-5-KHD 3” Insert
The S-5-KHD 3″ Insert is the retrofit/eave insert for the S-5-KHD heavy-duty standing seam clamp. It slides up into the bulb-shaped snap-together seam to reinforce clamp engagement on distinctive profiles like Lysaght® Klip-Lok® 406, AEP Span Klip-Rib®, McElroy Mirage, and Metal Sales Clip-Loc—delivering high holding strength without roof penetration.
Key Benefits
Retrofit/Eave Ready: Purpose-built for existing roofs; installs at the eave by sliding into the seam (no panel disassembly).
Heavy-Duty Grip: Reinforces the KHD clamp on bulb-shaped seams for snow retention, solar, and other high-load attachments.
Zero Penetrations: Preserves roof warranties by clamping the seam—no holes in panels.
Special Technology
Klip-Rib®/Klip-Lok® Interface: Short insert engages the concealed clip area to increase clamp bearing on compatible profiles.
System Matched: Designed exclusively for the S-5-KHD clamp; use the 6″ insert for new construction, 3″ insert for retrofit/eave installs.
Warranty
S-5! Limited Lifetime Warranty (per distributor listing).
Best Uses
Snow Retention at Eaves: Retrofit installations where only a single row is required/feasible at the eave.
Solar Attachments: Reinforced clamp engagement on Klip-Lok/Klip-Rib-type seams for rail or rail-less systems.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | S-5-KHD-3-INSERT |
| Compatible Clamp | S-5-KHD (Klip-Rib® Heavy Duty) |
| Use Case | Existing construction / eave installs (retrofit) |
| Installation | Slides up into the standing seam; used with KHD clamp |
| Recommended Applications | Snow retention (single row at eave), solar, mechanical attachments |
| Roof Profiles | Lysaght® Klip-Lok® 406, AEP Span Klip-Rib®, McElroy Mirage, Metal Sales Clip-Loc (and similar) |
| Length | 3 inches (short insert) |
| Weight | 0.497 lb |
| Material | Precision-machined aluminum insert |
| New-Construction Variant | 6″ KHD insert (for use on new construction/intermediate seams) |
| Notes | 3″ insert achieves one row of snow retention at the eave |
