S5! S-5-K Grip Mini NB (No Bolt)

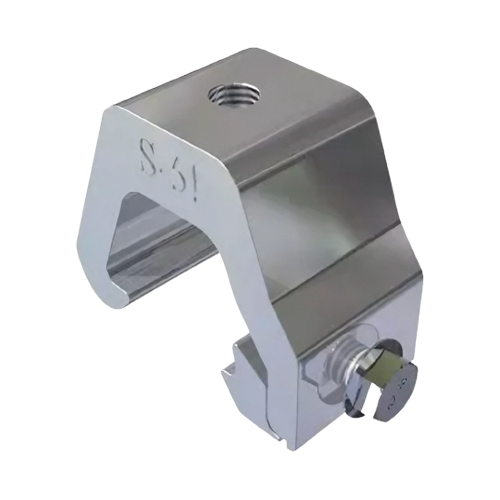

The S-5-K Grip Mini NB is a compact, non-penetrating standing seam clamp engineered for Klip-Lok®/Klip-Rib®/Mirage®/Speed Deck® and similar bulb snap-together metal roof profiles. The Mini uses one side-bolt and profile-specific GXM inserts (sold separately) for a precise, high-holding-power fit—ideal for attaching PV racking (with PVKIT), conduit, walkways, antennas, and other rooftop utilities without penetrating the roof panel.
Key Benefits
Non-Penetrating Attachment: Grips the concealed-fix seam—no roof penetrations, preserving warranties and weather integrity.
Profile-Matched Inserts: Choose GXM-10 or GXM-50 inserts to match specific Klip-Lok/Klip-Rib/Clip-Loc/Saflok profiles for maximum strength.
Compact “Mini” Form: Shorter body with one side-bolt for fast installs and tight spaces.
Rugged Materials: Aluminum clamp body with stainless steel hardware for long-term corrosion resistance.
NB = No Top Bolt: “NB” variant ships without the M8 top bolt; add the desired bolt length if needed.
Special Technology
Center-Seam Load Path: Mounting bolt seats over the seam centerline to reduce moment arm and increase load resistance.
Insert-Driven Geometry: Interchangeable GXM inserts conform to bulb seam shapes (e.g., KLIP-LOK® 406/700, Klip-Rib®, Clip-Loc, Saflok), boosting clamp-to-seam engagement.
Warranty
Manufacturer’s standard S-5! hardware warranty.
Best Uses
PV & Utilities on Bulb Seams: Pair with S-5! PVKIT or adapter brackets to attach solar rails and accessories on Klip-Lok/Klip-Rib style roofs. (Use standard K Grip or KHD for heavy snow-retention duties.)
Specifications Table
| Specification | Data |
|---|---|
| Part Number | S-5-K Grip Mini NB |
| Product Type | Non-penetrating standing seam clamp (Mini) |
| Roof Seam Compatibility | Bulb snap-together concealed-fix seams (e.g., Klip-Lok®, Klip-Rib®, Clip-Loc, Speed Deck®, Mirage®, Saflok) with proper insert |
| Insert Options (Mini) | GXM-10 (KLIP-LOK® 406, Klip-Rib®, Mirage, Clip-Loc, Saflok 410/700, etc.); GXM-50 (KLIP-LOK® Classic 700 / 700 Hi-Strength®, Speed Deck Ultra®, KingKlip® 700, etc.) |
| Attachment | One side-bolt (Mini); top M8 seam bolt purchased separately (NB = no top bolt) |
| Material | High-tensile aluminum clamp body; A2/300-series stainless hardware |
| Penetrations | None (seam-grip clamp) |
| Dimensions | 2.15 x 1.73 x 2.15 inch |
| Weight | 0.26 lb |
| Typical Applications | PV KIT/rails, conduit, antennas, walkways, light mechanicals (not for most snow-retention assemblies) |
| Notes | Profile-specific insert required; verify load tables for your exact panel/profile and spacing |
