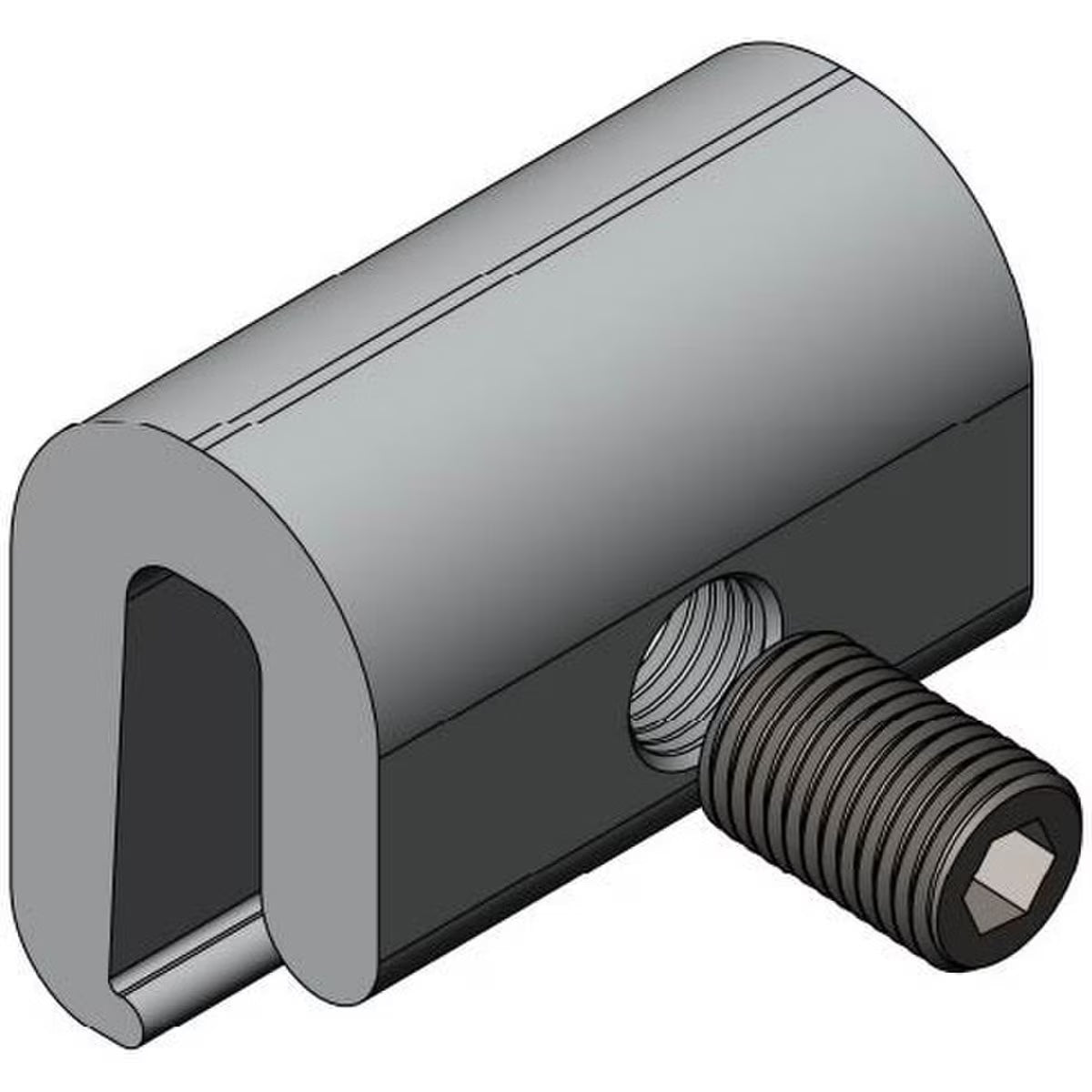

S-5! External Seam Clamp for Ultra-Dek WindClamp™ UD
WindClamp™ UD is an external seam clamp engineered to boost the wind-uplift resistance of standing-seam metal roofs—specifically MBCI® Ultra-Dek® and similarly dimensioned profiles. Installed at specified intervals, it helps prevent common failure modes like male-to-female seam separation and panel separation from mounting clips, bringing existing roofs closer to current wind-design requirements.
Key Benefits
Increase Wind Resistance: Independent testing shows failure pressures can increase substantially (as much as 300%, depending on profile, gauge, and purlin spacing).
Cost-Effective Retrofit: Exterior installation avoids interior disruption and can be far less costly than structural changes or roof replacement.
Code & Insurance Alignment: Helps older buildings align with updated wind provisions (e.g., ASCE 7-16 / FM 1-31 considerations).
Quick Installation: Slide over the seam and tighten the setscrew to the specified tension—fast, repeatable, and minimally invasive.
Special Technology
Profile-Specific Geometry: UD model sized for Ultra-Dek® seams to resist seam “unzipping” and clip disengagement.
Setscrew Locking: Integral setscrew secures the clamp to the seam while preserving thermal-cycling integrity.
Warranty
Manufacturer’s standard S-5! warranty.
Best Uses
Existing Ultra-Dek® Roofs: Retrofit uplift enhancement at edges, corners, and zones of higher suction.
New Construction: Integrate WindClamps in the initial design to reduce required panel gauge/clip counts and save material cost.
Specifications Table
| Specification | Data |
|---|---|
| Model | WindClamp™ UD |
| Intended Profiles | MBCI® Ultra-Dek® and similarly dimensioned standing-seam profiles |
| Overall Length | 1.50 in (38.1 mm) |
| Overall Height | 0.90 in (22.9 mm) |
| Seam Slot Width | 0.31 in (7.8 mm) |
| Weight | 0.082 lb |
| Attachment Method | External seam clamp with integral setscrew (tighten to specified tension) |
| Primary Function | Increase wind-uplift resistance; mitigate male-to-female seam separation and clip disengagement |
| Install Location | Exterior retrofit; place along seams at engineered intervals |
| Materials / Finish | Not specified (see S-5! documentation for metallurgical compatibilities) |
| Standards & Guidance | Supports compliance upgrades relative to ASCE 7-16 / FM 1-31 design criteria |
| Notes | Use profile-appropriate WindClamp model (UD for Ultra-Dek®; DL for Double-Lok®; 2X for MR-24®/SSR, etc.) |
About S-5!:
S-5! is a leading manufacturer of metal roof attachment systems for solar and other rooftop applications. Founded in 1992, the company specializes in non-penetrating clamps and mounts engineered for durability, ease of installation, and long-term roof integrity.
