S-5! CorruBracket 500T PV
MPN No:
CorruBracket 500T PV
Expected ship date Jun 11 - 18
S-5! CorruBracket 500T PV
The CorruBracket™ 500T is a structural aluminum crest-mount bracket for corrugated metal roofs (16–18 mm profiles). It fastens on the crest—not in the water-carrying valleys—to help prevent leaks and can attach directly to the sheet for medium-duty uses or into the underlying substrate for heavy-duty loads. A factory-applied EPDM gasket and S-5!’s reservoir design protect the seal from UV for long-term reliability.
Key Benefits
Crest-Mounted, Valley-Free: Keeps penetrations out of the drainage plane to reduce leak risk.
Fast, Clean Install: Six pre-punched holes; secure with screws or rivets—no messy sealant required.
Durable Sealing: Factory-applied EPDM gasket, concealed from UV by the patented reservoir.
Versatile Mounting: Works for PV via rail or DirectAttached™ methods, plus many rooftop accessories.
Special Technology
UV-Shielded Gasket Reservoir: Extends seal life by protecting EPDM from sunlight.
Structural Aluminum Body: Compatible with most common metal roofing materials; independent lab data available for load-critical designs.
Warranty
Manufacturer’s standard S-5! warranty.
Best Uses
Corrugated Metal Roofs (16–18 mm): PV mounting (rail or DirectAttached™), plus accessories like conduits, walkways, and equipment supports.
Specifications Table
| Specification | Data |
|---|---|
| Product | CorruBracket™ 500T |
| Roof Compatibility | Corrugated metal, 16–18 mm profiles; mounts on crest (straddles valley) |
| Attachment | Six pre-punched holes; fasten with screws or rivets (sheet or substrate) |
| Material | Structural aluminum bracket |
| Sealing | Factory-applied EPDM rubber gasket (UV-shielded reservoir) |
| Threaded Boss | M8-1.25 (top, for mounting hardware) |
| Footprint (approx.) | 3.81" × 3.00" (96.8 × 76.2 mm) base |
| Bracket Height (approx.) | 1.58" (40.1 mm) overall profile height |
| Weight | 0.13 lb |

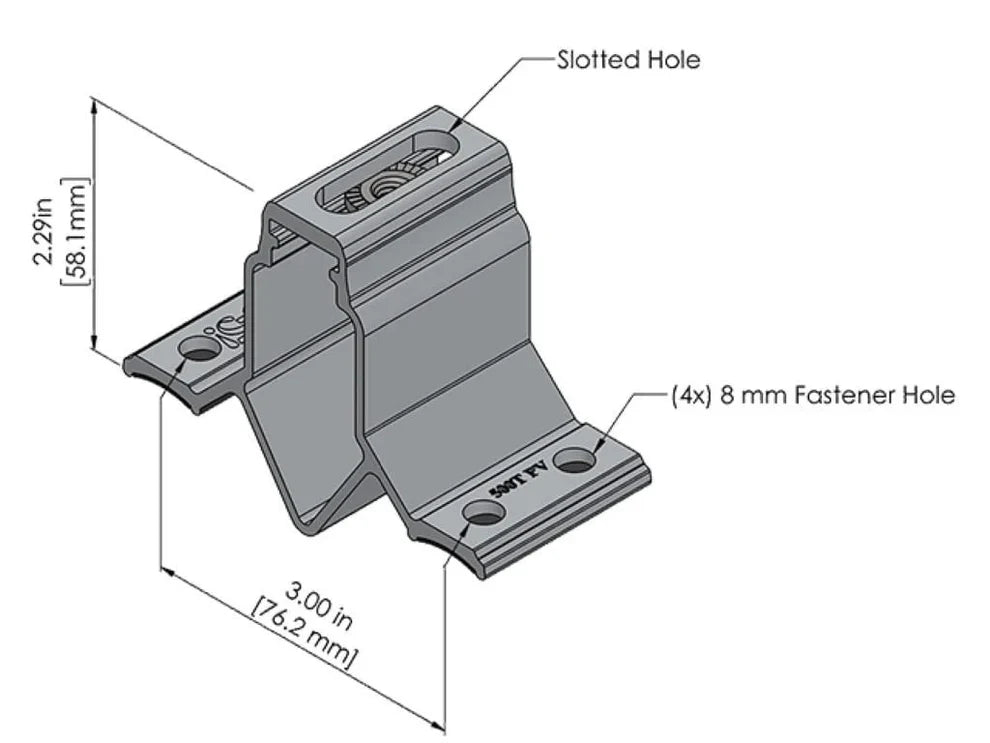

| Typical Edge Dimensions | Key edges 0.58"–0.84"; see drawing for full detail |
| Use Cases | PV via rail or DirectAttached™, accessories (signs, walkways, antennas, etc.) |
| Notes | Mini version available (two-hole base) for accessory attachments |
About S-5!:
S-5! is a leading manufacturer of metal roof attachment systems for solar and other rooftop applications. Founded in 1992, the company specializes in non-penetrating clamps and mounts engineered for durability, ease of installation, and long-term roof integrity.
