S-5! S-5-H90 Mini NB (No Bolt)
S-5! S-5-H90 Mini NB (No Bolt)
Available
MPN No: S-5-H90 Mini NB
Regular price
$5.22
Expected ship date Jan 16 - 23
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$5.22
S-5! S-5-H90 Mini NB (No Bolt)
MPN No:
S-5-H90 Mini NB
Expected ship date Jan 16 - 23
S-5! S-5-H90 Mini NB

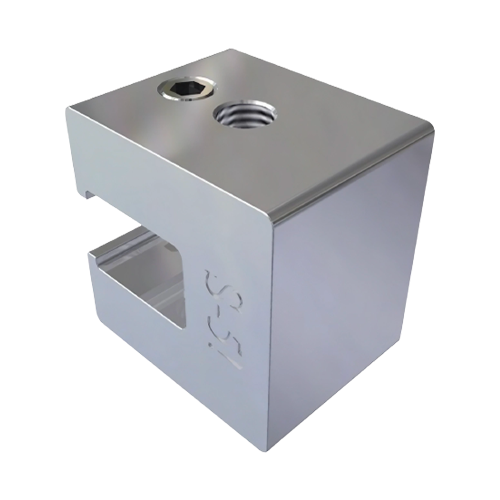

The S-5-H90 Mini NB is a compact, one-piece aluminum clamp engineered for standing seam metal panels with horizontal seams. Rotated 90° (bolt-hole side up), it slips over the seam and tightens with a single round-point setscrew; the top threaded hole accepts accessory bolts for attaching conduit, walkways, antennas, and other rooftop hardware. (Mini clamps are not for S-5! snow retention systems.)
Key Benefits
Horizontal-Seam Solution: Purpose-built geometry to engage seams that run horizontally across the roof.
Quick, Non-Penetrating Attach: Patented round-point setscrew dimples (does not pierce) the seam to preserve roof warranties.
Accessory-Friendly: One top threaded hole for fastening brackets and equipment; ideal for general rooftop attachments.
Special Technology
Setscrew Design: 3/8-24 round-point setscrew grips without puncturing the seam material.
All-Metal Roof Compatibility: Structural aluminum clamp with stainless hardware suits common metal roofing alloys (excluding copper).
Warranty
Manufacturer’s standard S-5! warranty; tested load-to-failure on multiple horizontal standing-seam profiles.
Best Uses
Rooftop Accessories: Signs, walkways, satellite dishes, antennas, lighting, lightning protection, solar array attachments, conduit/condensate supports, and general mechanical bracing (not for ColorGard®/SnoRail™/SnoFence™).
Specifications Table
| Specification | Data |
|---|---|
| Model | S-5-H90 Mini NB |
| Clamp Type | One-piece standing seam clamp (horizontal seams), “Mini” size |
| Overall Size (approx.) | 1.50″ × 1.50″ × 1.20″ (L × W × H) |
| Seam Engagement Window | ~0.54″ opening height; ~0.90″ throat depth (per drawing) |
| Setscrews | (1) 3/8-24 × 0.80″ round-point setscrew |
| Threaded Mount Hole (top) | M8-1.25 (with hex flange bolt shown in cut sheet; NB variants may omit bolt) |
| Additional Threads | 3/8-24 threaded hole (side) |
| Material / Hardware | Structural aluminum clamp; stainless steel hardware |
| Roof Material Compatibility | All common metal roofing materials (excluding copper) |
| Install Notes | Rotate 90°, slip on seam, tighten setscrew; affix accessory to top threaded hole |
| Restrictions | Not for S-5! ColorGard®, SnoRail™ or SnoFence™ snow retention |
