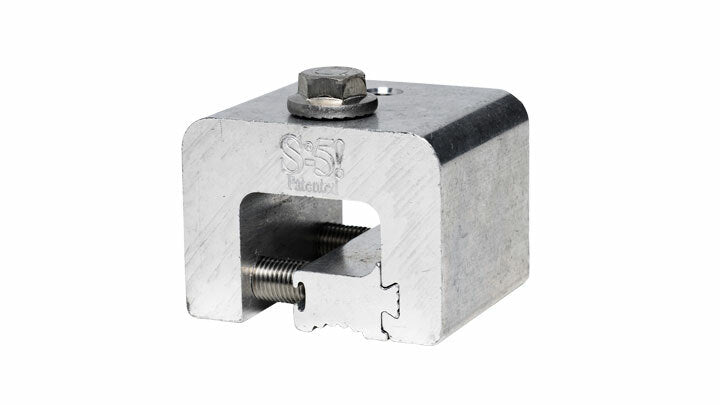

S-5! S-5-H Metal Roof Clamp

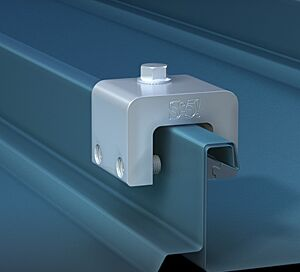

The S-5-H is a heavy-duty metal roof clamp specifically engineered for standing seam metal roofs with horizontal seams. Unlike traditional clamps, the S-5-H is designed to attach directly to a horizontal seam located on the vertical leg of the panel, providing a secure and reliable mounting point without penetrating the roof surface.

Its two-piece design allows installation anywhere along the seam length, making it a versatile solution for solar PV systems and other demanding rooftop applications.

Key Features

• Designed for standing seam metal roofs with horizontal seams

• Non-penetrating attachment preserves roof warranties

• Two-piece clamp design allows placement anywhere along the seam

• Patented round-point setscrews dimple the seam without puncturing

• Structural aluminum construction for strength and corrosion resistance

• Stainless steel hardware included

• M8 threaded mounting interface for rails and accessories

Ideal Applications

• Solar PV mounting systems

• Snow retention systems

• Walkways and rooftop safety equipment

• Conduit and cable management

• Mechanical and structural rooftop attachments

Installation Notes

• Installs directly onto the horizontal seam without drilling

• Setscrews are tightened to specified torque values for maximum holding strength

• Designed for compatibility with most common metal roofing materials (excluding copper)

• Follow manufacturer installation guidelines for proper performance

Material & Construction

• Clamp Material: Structural aluminum

• Setscrews: Stainless steel, round-point

• Mounting Hardware: Stainless steel

Why Choose the S-5-H

The S-5-H Metal Roof Clamp provides a dependable, non-penetrating solution for attaching solar and heavy-duty rooftop systems to standing seam roofs with horizontal seams. Its unique design, proven durability, and flexibility in placement make it a trusted choice for commercial and residential metal roof installations.
