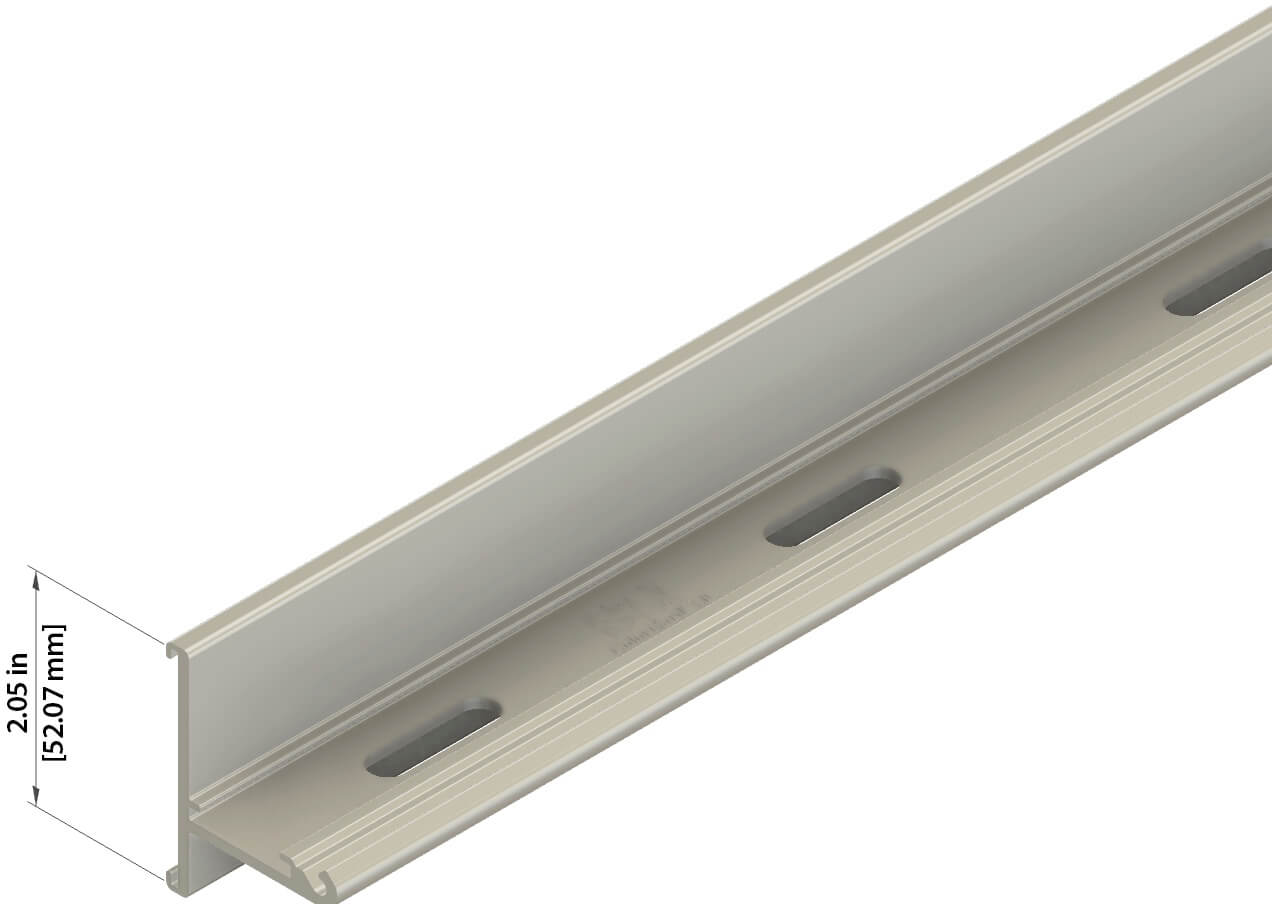

S-5! ColorGard 2.0 Punched Crossmember for Metal Roof Snow Retention

Snow Retention Rail Component for Standing Seam and Exposed-Fastened Metal Roofs

ColorGard 2.0 | Punched Crossmember | Metal Roof Snow Retention | Made in USA
The S-5! ColorGard 2.0 Punched Crossmember is a horizontal rail component for the ColorGard 2.0 snow retention system. Engineered to help control the movement of accumulated snow and ice on metal rooftops, the crossmember works with compatible S-5! attachment hardware to create a continuous snow retention assembly.

The next-generation ColorGard 2.0 system features a redesigned installation process, internal splices, and compatibility with VersaClip 2.0 and SnoClip 2.0 components. Its streamlined design helps installers complete snow retention projects more efficiently while maintaining the clean appearance of metal roofing.

Product Highlights

• ColorGard 2.0 system component: Horizontal crossmember used in continuous metal roof snow retention assemblies.
• Punched crossmember configuration: Designed for use with the corresponding ColorGard 2.0 attachment system.
• Reduces snow-slide risks: Helps control sudden movement of accumulated snow and ice.
• Internal splice design: Connects adjacent crossmembers to form continuous rail sections.
• Reduced field cutting: Redesigned assembly allows cutting primarily at the ends of the installation.
• VersaClip 2.0 compatible: Simplifies crossmember installation without preassembly.
• SnoClip 2.0 compatible: Optional accessories help reduce snow migration beneath the rail.
• Metal roof versatility: Suitable for engineered systems on standing seam and exposed-fastened roofing.
• Color-matching capability: Accepts roofing-material ColorStrip for a coordinated appearance.
• Corrosion-resistant construction: Designed for long-term rooftop service.
• New construction and retrofit applications: Supports both new and existing metal roof projects.
• Made in USA: Manufactured by S-5!.

Manufacturer: S-5!

Product Series: ColorGard 2.0

Product: Punched Crossmember

Product Category: Metal Roof Snow Retention Components

Engineered Snow Retention for Metal Roofing

Metal roofing offers excellent durability and weather resistance, but its smooth surface can allow accumulated snow and ice to slide suddenly from the roof.

The S-5! ColorGard 2.0 system is designed to reduce the risk of these sudden snow releases by retaining snow on the roof and helping manage its movement.

The punched crossmember forms the continuous horizontal barrier within the assembly, working with appropriately selected S-5! clamps, attachment components, and optional snow-retention accessories.

Benefits of a Continuous Snow Retention System

• Helps reduce sudden rooftop snow and ice slides.
• Supports protection of walkways, entrances, landscaping, and property below roof edges.
• Provides a continuous snow retention barrier along designated roof areas.
• Maintains the architectural appearance of metal roofing.
• Supports project-specific snow retention designs.

ColorGard 2.0: Redesigned for Faster Installation

The ColorGard 2.0 system introduces improvements intended to simplify assembly and reduce installation time.

Unlike the previous generation, the redesigned system does not require installers to preassemble the ColorGard rail and VersaClip before accessing the roof.

Instead, components can be installed progressively using a streamlined lay-and-play approach.

Installation Improvements

• No crossmember preassembly: VersaClip 2.0 is installed as the crossmember is positioned.
• Internal splices: Adjacent crossmember sections connect through the redesigned splice.
• Reduced cutting: Field cutting is generally limited to the ends of the completed assembly.
• Flexible installation: Supports adjustments and retrofit modifications.
• Standardized fastening: ColorGard 2.0 system fasteners use a T30 Torx drive.

Internal Splice System for Continuous Protection

The ColorGard 2.0 internal splice connects adjacent crossmember sections to form a continuous snow retention rail.

The splice incorporates a central dimple that establishes a gap between connected sections, accommodating expansion and contraction as temperatures change.

Internal Splice Benefits

• Connects neighboring ColorGard 2.0 crossmembers.
• Supports continuous snow retention assemblies.
• Allows thermal expansion and contraction.
• Works with the redesigned VersaClip installation method.
• Reduces the need for field cutting at intermediate connections.

The manufacturer identifies the internal splice as included with ColorGard 2.0 crossmembers.

Compatible with VersaClip 2.0

VersaClip 2.0 is an attachment component used to secure the ColorGard crossmember within the snow retention assembly.

With the redesigned system, VersaClip can be positioned as the crossmember is installed rather than requiring advance assembly.

The VersaClip 2.0 design also allows placement over internal splice locations, simplifying the layout of continuous rail sections.

VersaClip 2.0 Advantages

• Installs during crossmember placement.
• Eliminates the need for advance rail-and-clip assembly.
• Can be positioned over splice locations.
• Supports efficient installation on new and existing metal roofs.

Optional SnoClip 2.0 Snow Retention Accessories

SnoClip 2.0 accessories can be added to the ColorGard system to help reduce snow and ice movement beneath the crossmember.

The manufacturer identifies two accessory configurations:

• SnoClip 2.0 II
• SnoClip 2.0 III

SnoClip components can be installed during the initial snow retention assembly or added after the crossmember has been installed.

Each SnoClip is positioned on the crossmember and secured using its fastener to engage the SnoClip foot against the roofing surface.

Color-Matched Appearance with ColorStrip

ColorGard 2.0 is designed to complement the appearance of metal roofing systems.

The crossmember accepts an optional ColorStrip made from matching roofing material, allowing the snow retention assembly to coordinate with the roof's existing color and finish.

ColorStrip Features

• Provides a coordinated appearance with the metal roof.
• Uses a 2-inch (50.8mm) wide strip of roofing material.
• Can be sourced from the roofing material manufacturer.
• Helps maintain the original roofing finish and color match.

ColorStrip is not included with the crossmember.

Designed for Standing Seam and Exposed-Fastened Metal Roofs

The ColorGard 2.0 system supports snow retention applications on a wide range of metal roofing profiles.

S-5! uses site-specific engineering and roof-profile testing to determine appropriate attachment configurations and snow retention layouts.

Common Applications

• Standing seam metal roofing
• Exposed-fastened metal roofing
• Residential metal roofs
• Commercial metal roofing
• Industrial and agricultural buildings
• New construction projects
• Existing roof retrofits
• Snow retention above building entrances and pedestrian areas

S-5! reports load testing across more than 500 metal roof profiles for its snow retention attachment solutions.

Product Specifications

ColorGard 2.0 System Components

The punched crossmember is one component of a complete ColorGard 2.0 snow retention system.

Installation Overview

The redesigned ColorGard 2.0 system uses a straightforward installation sequence.

1. Position roof attachments: Install compatible S-5! attachment components according to the engineered roof layout.
2. Place the crossmember: Position ColorGard 2.0 along the planned snow retention line.
3. Connect rail sections: Insert the internal splice to join neighboring crossmembers.
4. Install VersaClip 2.0: Position and secure VersaClip components as the rail is installed.
5. Add SnoClip accessories: Install SnoClip 2.0 components where specified by the system design.
6. Install ColorStrip: Add matching roofing material strips if a color-matched appearance is desired.

The ColorGard 2.0 system uses a T30 Torx drive for clamp set screws, attachment bolts, and SnoClip fasteners.
