S-5! S-5 KHD Clamp- Compatible with Most Metal Roofs Includes Hardware
S-5 KHD

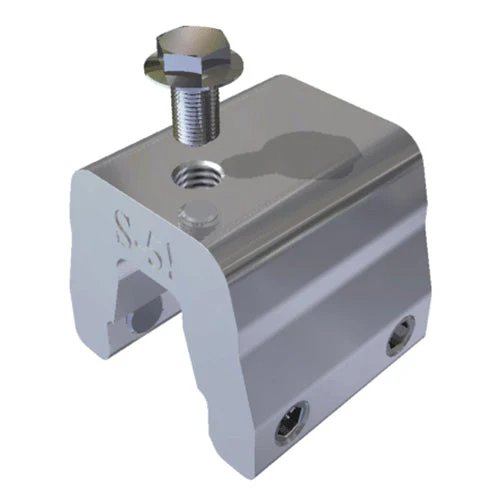

S-5! S-5 KHD Clamp- Compatible with Most Metal Roofs Includes Hardware
Key Features
- Maximum Strength & Durability – The strongest clamp in the S-5!® family, designed for heavy-duty applications.
- Zero-Penetration Technology – Attaches securely without piercing metal roofing, preserving roof warranties.
- Optimized for Specific Metal Roof Profiles – Compatible with Lysaght® Klip-Lok® 406, McElroy Mirage, Metal Sales Clip-Loc, and AEP Span Klip-Rib®.
- Integrated Insert for Extra Hold – Ensures superior retention strength, reducing the number of required attachment points.
- Stainless Steel Hardware Included – Comes with four 3/8-24 x 0.50” round-point setscrews and one M8-1.25 x 16 mm hex flange bolt.
- Independently Tested for Unmatched Holding Strength – Lab-tested on various roofing profiles for superior performance.
Applications
- Snow Retention Systems – Prevents snow and ice from sliding off metal roofs.
- Solar Panel Attachments – Securely mounts photovoltaic systems without compromising the roof.
- HVAC & Mechanical Attachments – Supports heavy-duty rooftop equipment.
- Other Roof-Mounted Accessories – Ideal for signage, walkways, and safety systems.
Installation
The S-5-KHD clamp is designed for both new and retrofit construction. For new installations, simply snap the insert into place before the roof panel is installed. Once the panel is secured, position the S-5-KHD clamp above the insert and tighten the setscrews to the specified torque. For retrofit applications, consult the full installation guide at
Advanced Technology & Engineering
Constructed from structural aluminum, the S-5-KHD clamp provides unmatched holding strength while preventing damage to the roof. The patented setscrew design slightly dimples the seam without penetration, maintaining the integrity of metal roofing.
About S-5!®
S-5!® is the industry leader in metal roof attachment solutions, providing innovative, non-penetrating clamps and brackets for solar, snow retention, and accessory installations. With a commitment to quality and reliability, S-5!® clamps are trusted worldwide for their superior strength and durability.
Specifications
| Parameter | Details |
|---|---|
| Part Number | S-5-KHD |
| Material | Structural Aluminum |
| Compatible Roof Profiles | Lysaght® Klip-Lok® 406, McElroy Mirage, Metal Sales Clip-Loc, AEP Span Klip-Rib® |

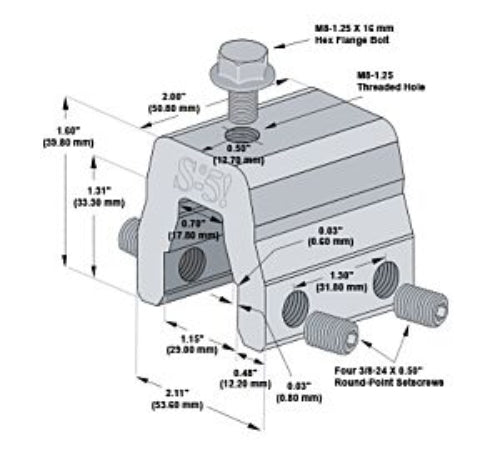

| Dimensions | 2.11” x 2.00” x 1.60” |
| Setscrews | Four 3/8-24 x 0.50" round-point stainless steel setscrews |
| Bolt | M8-1.25 x 16 mm hex flange bolt |
| Mounting | Non-penetrating clamp with intermediate seam insert |
| Recommended Torque | 160-180 in-lbs for 22ga steel, 130-150 in-lbs for thinner metals |
