Pallet

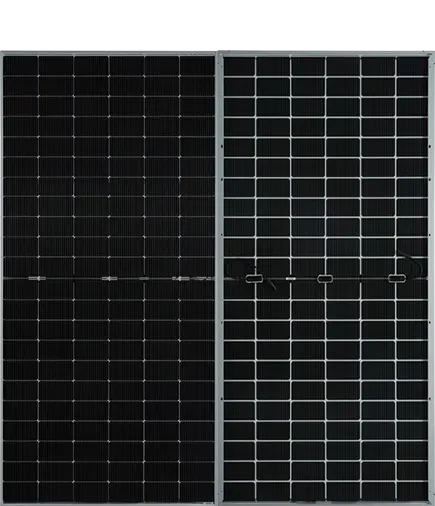

Runergy 615W (Pallet of 36) N-Type Bifacial Dual Glass Solar Panels HY-DH132N11-615W

Runergy 615W (Pallet of 36) N-Type Bifacial Dual Glass Solar Panels HY-DH132N11-615W

Regular price $8,199.99
$0.37/watt
Sale price
$227.77/per panel
New
LESS THAN 50
Leave a Review

Runergy

Pallet

Runergy 615W (Pallet of 36) N-Type Bifacial Dual Glass Solar Panels HY-DH132N11-615W

Runergy 615W (Pallet of 36) N-Type Bifacial Dual Glass Solar Panels HY-DH132N11-615W

Available
MPN No: HY-DH132N11-615W
Regular price $8,199.99
$0.37/watt
Sale price
$227.77/per panel

PLT (36 pcs)
1
2
3
4
5
6

ShippingĀ calculated at checkout. About shipping

delivery icon
Expected ship date Aug 04 - 11

Ships from U.S. Warehouse

Trusted by Thousands

Expert U.S. Support

delivery icon

We offer multiple secure payment options for your convenience

American Express Apple Pay Diners Club Discover Google Pay JCB Mastercard PayPal Venmo Visa
delivery icon

We offer multiple secure payment options for your convenience

American Express Apple Pay Diners Club Discover Google Pay JCB Mastercard PayPal Venmo Visa
Data Sheet

View full details
Regular price $8,199.99

Runergy 615W (Pallet of 36) N-Type Bifacial Dual Glass Solar Panels HY-DH132N11-615W

Shipping Notice for 600W+ Solar Panels

All solar panels rated 600W and above exceed liftgate size restrictions and cannot be unloaded via liftgate. Residential deliveries require the customer to provide appropriate unloading equipment (forklift, skid steer, or equivalent) at the delivery location. Failure to provide equipment may result in unloading by hand or re-delivery fees assessed by the carrier.


Ā

The Runergy HY-DH132N11 615W is a premium high-efficiency N-Type bifacial dual-glass solar module engineered for commercial, industrial, and utility-scale photovoltaic systems.

Built using advanced 182 Ɨ 210 mm N-Type cell technology with a 132 half-cell architecture, this module delivers exceptional energy production, outstanding reliability, and module efficiency of up to 22.8%.

Its bifacial dual-glass construction captures additional energy from reflected sunlight on the rear side of the module, increasing total system yield while reducing the levelized cost of energy (LCOE).


Key Technology

  • 615W High Power Output
    Delivers exceptional energy production for high-performance photovoltaic installations.

  • Advanced N-Type Cell Technology
    Provides higher efficiency, lower degradation, and improved long-term performance compared to conventional cell technologies.

  • Bifacial Dual Glass Construction
    Captures reflected sunlight from the rear side to maximize overall energy generation.

  • 132 Half-Cell Architecture
    Reduces internal electrical losses while improving module reliability and shade tolerance.

  • Excellent Low-Light Performance
    Produces more energy during cloudy weather and lower irradiance conditions.

  • Outstanding Anti-Degradation
    Highly resistant to LID, LeTID, and PID degradation for superior lifetime performance.

  • Heavy-Duty Mechanical Design
    Rated for 5400Pa front snow load, 2400Pa rear wind load, and tested for 35mm hail impact resistance.

  • 30-Year Linear Performance Warranty
    Less than 1% first-year degradation and less than 0.4% annual degradation thereafter.


Best Uses

  • Commercial Rooftop Solar Systems
    Provides maximum energy production for commercial facilities.
  • Ground-Mounted Solar Farms
    Bifacial technology increases total system energy yield.
  • Industrial Solar Installations
    Ideal for manufacturing plants, warehouses, and logistics centers.
  • Agricultural Renewable Energy Projects
    Reliable clean energy solution for farms and rural applications.
  • Large-Scale Photovoltaic Systems
    Designed for demanding high-output solar projects requiring long-term reliability.

Warranty

  • Product Warranty: 12 Years
  • Linear Power Warranty: 30 Years
  • First-Year Degradation: Less than 1%
  • Annual Degradation: Less than 0.4%

Product Specifications

Specification Details
Manufacturer Runergy
Model HY-DH132N11 615W
Product Type N-Type Bifacial Dual Glass Solar Module
Maximum Power (Pmax) 615W
Module Efficiency 22.8%
Cell Technology Mono N-Type 182 Ɨ 210 mm
Cell Configuration 132 Half-Cells (6 Ɨ 22)
Power Tolerance 0 to +5W
Optimum Operating Voltage (Vmp) 41.06V
Optimum Operating Current (Imp) 14.98A
Open Circuit Voltage (Voc) 48.71V
Short Circuit Current (Isc) 15.87A
Bifaciality 80% ±5%
Maximum System Voltage 1500V DC (IEC/UL)
Maximum Series Fuse Rating 35A
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Temperature Coefficient (Pmax) -0.29%/°C
Temperature Coefficient (Voc) -0.25%/°C
Temperature Coefficient (Isc) 0.045%/°C
Front Glass 2.0mm AR-Coated Heat-Strengthened Glass
Rear Glass 2.0mm Heat-Strengthened Glass
Frame Silver-Anodized Aluminum
Frame Thickness 30mm
Junction Box IP68 Rated, 3 Bypass Diodes
Output Cable +400/-200mm, 12 AWG
Connector RY01 or Similar
Dimensions 93.78 Ɨ 44.65 Ɨ 1.18 in
Weight 71.43 lbsĀ
Mechanical Load Rating 5400Pa Front / 2400Pa Rear
Hail Resistance 35mm Hail at 27.2 m/s
Fire Rating IEC Class A / UL Type 29
Container Quantity 36 Modules per Pallet; 576 Modules per 40' HQ (US)
Certifications IEC61215, IEC61730, UL61730, IEC61701, IEC62716, IEC60068, ISO9001, ISO14001, ISO45001

Ā

About Runergy:

Runergy is a global manufacturer of advanced photovoltaic products specializing in high-efficiency N-Type solar cell technology and premium bifacial solar modules. Through continuous innovation, advanced manufacturing, and stringent quality control, Runergy delivers dependable solar solutions that maximize energy production, long-term durability, and overall project value for commercial and utility-scale renewable energy installations.


High-Efficiency N-Type Solar Technology for Maximum Energy Production

The Runergy HY-DH132N11 615W combines advanced N-Type cell technology, bifacial dual-glass construction, exceptional mechanical durability, and industry-leading long-term performance into a premium high-output solar module. Designed to maximize lifetime energy production while minimizing degradation, it is an excellent choice for today's demanding commercial and utility-scale photovoltaic systems.Ā
