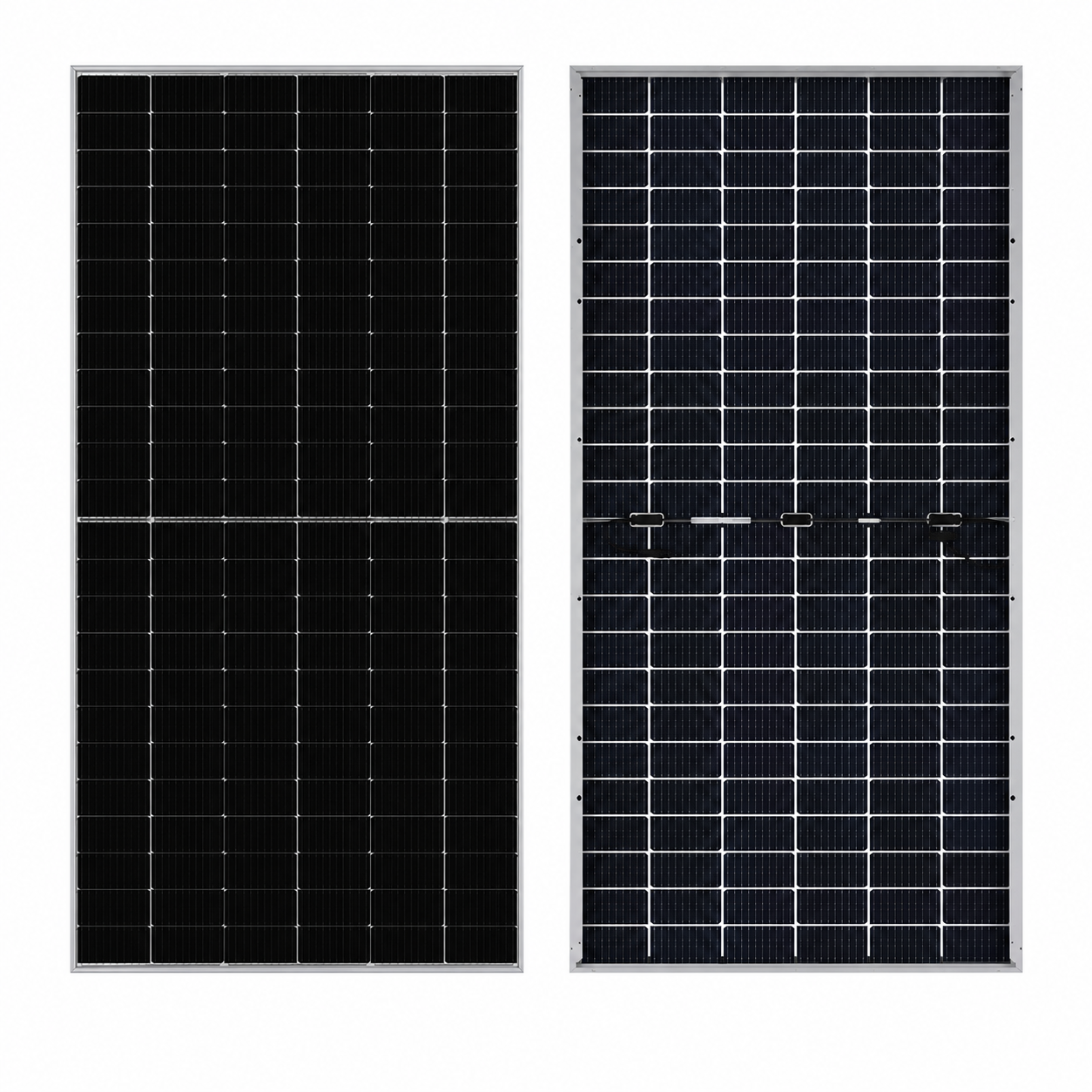

Runergy 535W (Pallet of 36) P-Type Bifacial Dual Glass Solar Panels HY-DH144P8 535W
MPN No: HY-DH144P8 535W
Expected ship date Aug 04 - 11
In Stock
$5,499.50
Pallet
Runergy 535W (Pallet of 36) P-Type Bifacial Dual Glass Solar Panels HY-DH144P8 535W
Runergy 535W (Pallet of 36) P-Type Bifacial Dual Glass Solar Panels HY-DH144P8 535W
Regular price
$5,499.50
$0.28/watt
Sale price
$152.76/per panel
New
LESS THAN 50
Pallet
Runergy 535W (Pallet of 36) P-Type Bifacial Dual Glass Solar Panels HY-DH144P8 535W
Runergy 535W (Pallet of 36) P-Type Bifacial Dual Glass Solar Panels HY-DH144P8 535W
Available
MPN No: HY-DH144P8 535W
Regular price
$5,499.50
$0.28/watt
Sale price
$152.76/per panel
Expected ship date Aug 04 - 11
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$5,499.50
Runergy 535W (Pallet of 36) P-Type Bifacial Dual Glass Solar Panels HY-DH144P8 535W
MPN No:
HY-DH144P8 535W
Expected ship date Aug 04 - 11
≥ 36
Runergy 535W (Pallet of 36) P-Type Bifacial Dual Glass Solar Panels HY-DH144P8 535W
B30/-525/+125mm/QC4.10 plus
The Runergy HY-DH144P8 535W Grade A is a high-performance P-Type bifacial dual-glass solar module.
Its bifacial dual-glass construction captures additional reflected sunlight from the rear side of the module, increasing total system energy production while improving overall project economics.
Designed for long-term durability, the module provides excellent weak-light performance, extended mechanical strength, and proven long-term reliability.
This Grade A version features a 30mm anodized aluminum frame, -525/+125mm output cables, and QC4.10 Plus connectors.
Key Technology
-
535W High Power Output
Provides dependable energy production for commercial and utility-scale solar projects. -
P-Type Mono PERC Technology
Offers excellent conversion efficiency and proven long-term field reliability. -
Bifacial Dual Glass Design
Captures reflected sunlight from the rear side to increase total energy yield. -
144 Half-Cell Architecture
Reduces electrical losses while improving module performance and reliability. -
Excellent Weak-Light Performance
Produces higher energy output during cloudy weather, mornings, and evenings. -
Extended Mechanical Strength
Certified to withstand heavy snow loads up to 5400Pa and wind loads up to 2400Pa. -
High Reliability Construction
Dual-glass design improves moisture resistance and long-term durability. -
30-Year Linear Performance Warranty
Provides dependable long-term energy production with controlled annual degradation.
Best Uses
-
Commercial Rooftop Solar Systems
Reliable high-output module for commercial photovoltaic installations. -
Ground-Mounted Solar Farms
Bifacial technology increases lifetime system energy production. -
Industrial Solar Projects
Ideal for manufacturing facilities, warehouses, and logistics centers. -
Agricultural Renewable Energy Systems
Excellent solution for farms and rural power generation. -
Large-Scale Solar Installations
Designed for dependable long-term operation in demanding environments.
Warranty
- Product Warranty: 12 Years
- Linear Power Warranty: 30 Years
- First-Year Degradation: Less than 2%
- Annual Degradation: Less than 0.45%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Runergy |
| Model | HY-DH144P8 535W Grade A |
| Product Type | P-Type Bifacial Dual Glass Solar Module |
| Maximum Power (Pmax) | 535W |
| Module Efficiency | 20.7% |
| Cell Technology | Mono PERC 182mm |
| Cell Configuration | 144 Half-Cells (6 × 24) |
| Power Tolerance | 0 to +5W |
| Optimum Operating Voltage (Vmp) | 41.47V |
| Optimum Operating Current (Imp) | 12.90A |
| Open Circuit Voltage (Voc) | 49.45V |
| Short Circuit Current (Isc) | 13.79A |
| Bifaciality | 70% ±10% |
| Maximum System Voltage | 1500V DC (IEC/UL) |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Temperature Coefficient (Voc) | -0.26%/°C |
| Temperature Coefficient (Isc) | 0.048%/°C |
| Front Glass | 2.0mm Semi-Tempered AR Glass |
| Rear Glass | 2.0mm Semi-Tempered Glass |
| Frame | 30mm Silver-Anodized Aluminum |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Output Cable | -525/+125mm, 12 AWG |
| Connector | QC4.10 Plus |
| Dimensions | 89.69 × 44.65 × 1.18 in |
| Weight | 70.55 lbs |
| Mechanical Load Rating | 5400Pa Front / 2400Pa Rear |
| Fire Rating | IEC Class A |
| Container Quantity | 36 Modules per Pallet; 720 Modules per 40' HQ |
| Certifications | IEC61215, IEC61730, UL61730, IEC61701, IEC62716, IEC60068, ISO9001, ISO14001, ISO45001 |
About Runergy:
Runergy is a leading global manufacturer of photovoltaic products, producing high-efficiency solar cells and advanced bifacial modules for residential, commercial, and utility-scale applications. Its products are engineered for long-term durability, dependable performance, and maximum energy production under a wide range of environmental conditions.
Reliable P-Type Bifacial Performance for High-Output Solar Installations
The Runergy HY-DH144P8 535W Grade A combines proven Mono PERC technology, bifacial dual-glass construction, excellent mechanical durability, and dependable long-term performance into a high-value solar module designed for demanding commercial and utility-scale photovoltaic projects.
