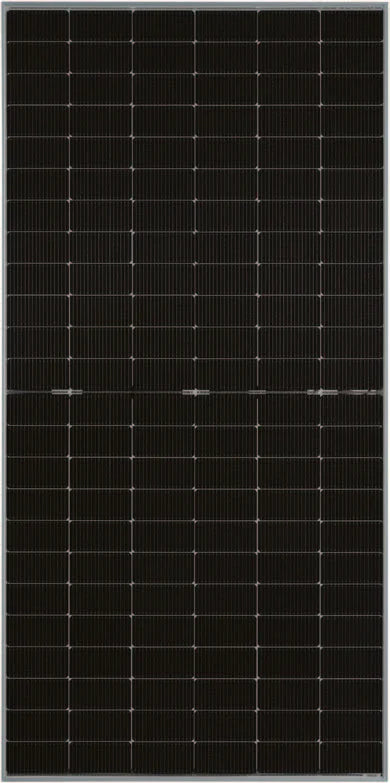

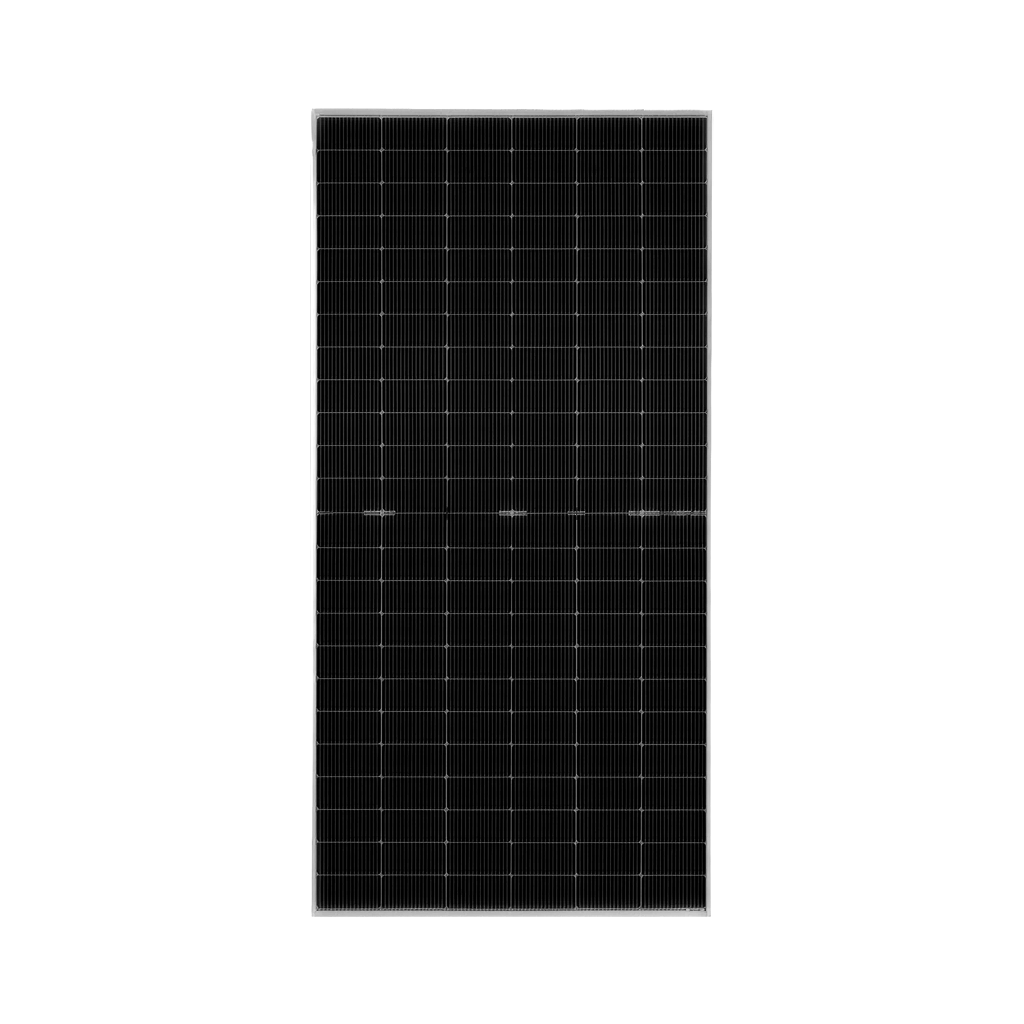

Name: Runergy 535W (Pallet of 31) Mono PERC Bifacial Solar Panel HY-DH144P8-535
Brand: Hyperion Runergy
SKU: USSSP202-378
Price: 5699.0 USD
Availability: InStock

Runergy 535W Mono PERC Bifacial Solar Panels

Pallet of 31 | Dual Glass | HY-DH144P8-535

535W per Panel | 16.585kW DC per Pallet | 20.7% Module Efficiency
Build your solar array with 31 Runergy 535W panels featuring Mono PERC half-cell technology and bifacial dual-glass construction. Sold by the full pallet.

This Pallet Includes

31 × Runergy HY-DH144P8-535 solar panels
535W front-side rated output per panel
16,585W / 16.585kW total front-side rated DC capacity

Listed configuration: B35 / -525mm +125mm / QC4.10 plus.

Inverters, batteries, racking, and other installation equipment are sold separately.

High-Output Solar for Larger Projects

The Runergy HY-DH144P8-535 delivers 535W of rated output using 144 Mono PERC half-cells. With 20.7% module efficiency and a bifacial design, it offers a practical option for commercial rooftops, ground-mounted arrays, agricultural installations, and larger residential projects.

Each pallet provides 16.585kW of front-side rated DC capacity. The large-format modules combine a 35mm frame with glass on both sides to protect the cells and support long-term outdoor use.

The rear surface captures reflected sunlight, allowing additional energy production when the installation provides suitable rear-side exposure.

Product Highlights

535W front-side rated power per panel
31 panels per pallet for 16.585kW of rated DC capacity
20.7% module efficiency
P-type Mono PERC technology with 182mm cells
144 half-cell configuration in a 6 × 24 layout
Bifacial design captures direct and reflected sunlight
Dual-glass construction with 2.0mm front and rear glass
0 to +5W power tolerance
IP68-rated junction box with three bypass diodes
12-year product warranty
30-year linear power output warranty

Perfect For

Commercial rooftop solar installations
Ground-mounted solar arrays
Agricultural buildings and farm solar projects
Large residential systems with suitable mounting space
Solar carports and compatible canopy structures
Utility-scale projects with an approved system design
Grid-connected and off-grid systems with compatible equipment

Bifacial Energy Production

The 535W nameplate rating measures front-side output under standard test conditions. Reflected sunlight reaching the rear surface can contribute additional production beyond that front-side rating.

Rear-side gains depend on mounting height, row spacing, shading, and ground reflectivity. Elevated installations with open rear exposure and reflective surroundings can make better use of the bifacial design.

The datasheet lists a 70% ±10% bifaciality factor. This describes the rear side’s response relative to the front under comparable illumination; it does not mean the panel produces 70% more energy.

Dual-Glass Construction for Outdoor Installations

The HY-DH144P8 series uses 2.0mm semi-tempered glass on both sides, with an anti-reflective coating on the front glass. An IP68-rated junction box houses three bypass diodes.

The manufacturer lists front-side loading of 5,400Pa and rear-side loading of 2,400Pa. Applicable load capacity depends on the approved mounting arrangement and installation instructions.

The module’s operating temperature range is -40°F to 185°F, supporting installations across a wide range of climates.

Product Specifications

Specification	Details
Manufacturer	Runergy
Model	HY-DH144P8-535
Listed Configuration	B35 / -525mm +125mm / QC4.10 plus
Rated Power per Panel	535W at STC
Panels per Pallet	31
Total Rated Power per Pallet	16,585W / 16.585kW DC at STC
Module Efficiency	20.7%
Cell Technology	P-type monocrystalline PERC, 182mm cells
Cell Configuration	144 half-cells, 6 × 24 layout
Module Design	Bifacial, dual glass
Power Tolerance	0 to +5W
Maximum Power Voltage (Vmp)	41.47V
Maximum Power Current (Imp)	12.90A
Open-Circuit Voltage (Voc)	49.45V
Short-Circuit Current (Isc)	13.79A
Maximum System Voltage	1,500V DC, subject to system and installation requirements
Maximum Series Fuse Rating	30A
Bifaciality Factor	70% ±10%
Dimensions per Panel	2278 × 1134 × 35mm / approximately 89.69 × 44.65 × 1.38 in
Weight per Panel	32.7kg / approximately 72.1 lb
Front Glass	2.0mm semi-tempered glass with anti-reflective coating
Rear Glass	2.0mm semi-tempered glass
Junction Box	IP68, three bypass diodes
Output Cable Size	4mm² IEC / 12 AWG UL
Listed Cable Configuration	Negative lead 525mm / positive lead 125mm; confirm supplied configuration before selecting extensions
Listed Connector Configuration	QC4.10 plus; confirm supplied connector before selecting mating equipment
Operating Temperature	-40°C to 85°C / -40°F to 185°F
Power Temperature Coefficient	-0.35%/°C
Voc Temperature Coefficient	-0.27%/°C
Isc Temperature Coefficient	+0.05%/°C
Manufacturer-Listed Front Load	5,400Pa, subject to approved mounting configuration
Manufacturer-Listed Rear Load	2,400Pa, subject to approved mounting configuration
Fire Resistance	IEC Class A
Standards Listed on Datasheet	IEC 61215, IEC 61730, UL 61730, IEC 61701, IEC 62716, IEC 60068
Product Warranty	12 years, subject to manufacturer terms
Linear Power Output Warranty	30 years, subject to manufacturer terms
Purchase Quantity	Full pallet of 31 panels

Mounting and Equipment Compatibility

Each panel measures approximately 89.69 × 44.65 inches and weighs 72.1 pounds. Choose racking that accommodates the panel dimensions, 35mm frame, approved clamp locations, and site-specific structural loads.

Inverter and charge controller selection must account for string voltage, operating current, short-circuit current, and installation temperatures. Additional current from rear-side production should also be considered in the system design.

This listing includes solar panels only. Racking, inverters, batteries, extension cables, and other installation materials are sold separately. Confirm the supplied cable lengths and connector type before ordering accessories.

Frequently Asked Questions

How many panels are included in this pallet?

The pallet includes 31 Runergy HY-DH144P8-535 panels rated at 535W each. Total front-side rated DC capacity is 16,585W / 16.585kW.

Are these N-type or P-type solar panels?

These are P-type Mono PERC panels. The HY-DH144P8 series uses 182mm monocrystalline cells in a 144 half-cell configuration.

What is the efficiency of the 535W model?

The 535W model has a module efficiency of 20.7%. The datasheet’s 21.3% maximum efficiency applies to the 550W model in the same series.

Does bifacial production add to the 535W rating?

Yes. The 535W rating measures front-side output under standard test conditions. Reflected sunlight reaching the rear surface can provide additional production, depending on mounting height, spacing, shading, and surrounding surfaces.

Can these panels be installed on a roof?

Yes, when the roof structure, racking, and installation design accommodate the module’s dimensions and weight. These are large-format panels, so available roof space and handling requirements should be evaluated during planning.

Can I use these panels in an off-grid system?

Yes, with a compatible inverter or charge controller and an appropriately designed system. Confirm the equipment’s voltage and current limits before selecting the number of panels per string.

Will these panels work with my inverter?

Compatibility depends on your inverter and string design. Each panel has a 41.47V maximum power voltage, 49.45V open-circuit voltage, 12.90A operating current, and 13.79A short-circuit current at standard test conditions. Cold-weather voltage increases and bifacial current gains must also be considered.

What does B35 / -525mm +125mm / QC4.10 plus mean?

This is the configuration identifier supplied for this listing, indicating the 35mm frame version, specified negative and positive cable lengths, and QC4.10 plus connector configuration. Confirm the supplied configuration before purchasing extension cables or mating connectors.

What warranty comes with these panels?

The manufacturer lists a 12-year product warranty and a 30-year linear power output warranty. The datasheet specifies 2% first-year degradation and 0.45% annual degradation thereafter, subject to the applicable warranty terms.

Are racking and installation accessories included?

No. This listing includes 31 solar panels. Racking, mounting hardware, inverters, batteries, and additional installation materials are sold separately.

Can I purchase fewer than 31 panels?

This listing is sold by the full pallet of 31 panels. Contact our team for help finding products with smaller minimum quantities.
