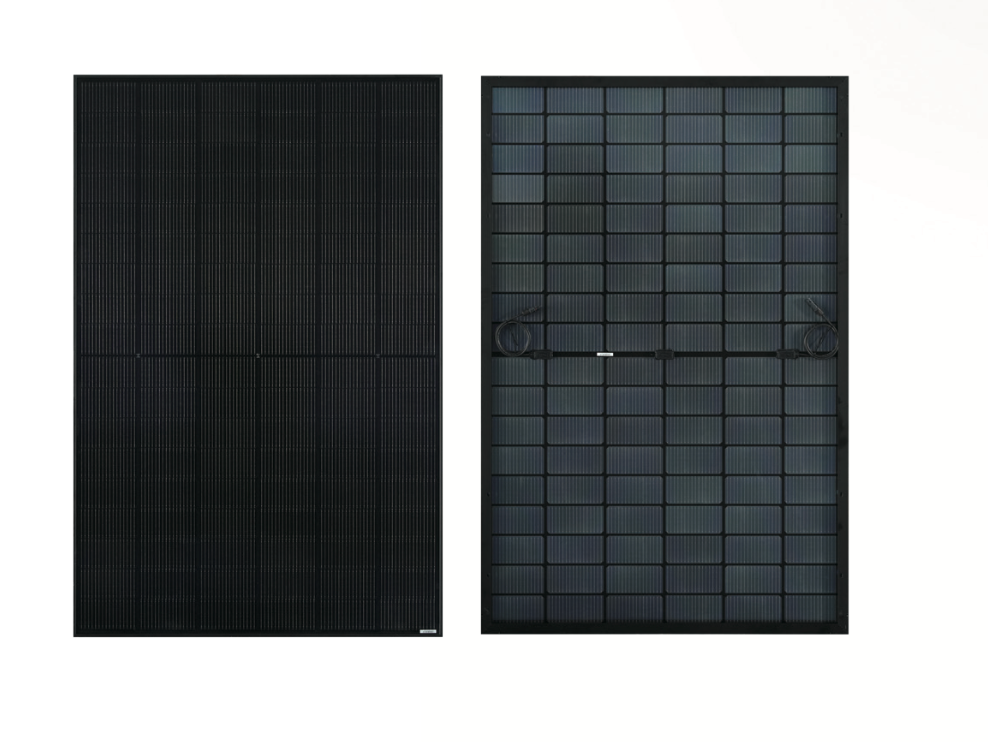

Runergy 450W N-Type Bifacial Dual Glass All Black Solar Panel HY-DH108N8B-450
MPN No: HY-DH108N8B-450
Expected ship date Feb 04 - 11
In Stock
199.99
-20%
$159.99
Sale
Runergy 450W N-Type Bifacial Dual Glass All Black Solar Panel HY-DH108N8B-450
Runergy 450W N-Type Bifacial Dual Glass All Black Solar Panel HY-DH108N8B-450
Regular price
$199.99
-20%
$159.99
$0.36/watt
20% OFF
New
1333 IN STOCK
Sale
Runergy 450W N-Type Bifacial Dual Glass All Black Solar Panel HY-DH108N8B-450
Runergy 450W N-Type Bifacial Dual Glass All Black Solar Panel HY-DH108N8B-450
Available
MPN No: HY-DH108N8B-450
Regular price
$199.99
-20%
$159.99
$0.36/watt
Expected ship date Feb 04 - 11
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$199.99
-20%
$159.99
Runergy 450W N-Type Bifacial Dual Glass All Black Solar Panel HY-DH108N8B-450
MPN No:
HY-DH108N8B-450
Expected ship date Feb 04 - 11
Sale
Runergy 450W N-Type Bifacial Dual Glass All Black Solar Panel HY-DH108N8B-450
The HY-DH108N8B-450 is a 450 W, 108 half-cell (182 mm) n-type TOPCon module with dual 2.0 mm glass and a black/silver anodized 30 mm frame. With up to 23.0% module efficiency, 1,500 Vdc system rating, and robust mechanical loading (5400/3600 Pa), it’s built for high energy yield and long service life on residential and C&I rooftops.
Key Benefits
High Efficiency: Up to 23.0% module efficiency on the 450 W bin.
n-Type Reliability: Low LID/LeTID and better low-light/thermal behavior versus p-type.
Durable Double-Glass: 2.0 mm front + 2.0 mm rear glass for weathering resistance and PID mitigation.
Extended Assurances: 25-year product and 30-year linear power warranties.
Special Technology
n-Type TOPCon Half-Cells: 108 (6×18) half-cells with multi-busbar design for lower resistive loss.
Bifacial Design: Bifaciality 80% ± 5% enables rear-side energy gain with reflective surfaces.
Warranty
25-Year Product Warranty · 30-Year Linear Power Warranty.
Best Uses
Residential & C&I Rooftops: High-power, compact module for limited roof area with long-life dual-glass construction.
Specifications Table
| Specification | Data |
|---|---|
| Model | HY-DH108N8B-450 |
| Cell / Layout | Mono n-Type 182 mm · 108 half-cells (6×18) |
| Rated Power (STC) | 450 W |
| Module Efficiency | 23.0% |
| Vmp / Imp | 33.22 V / 13.55 A |
| Voc / Isc | 39.79 V / 14.00 A |
| Power Tolerance | 0 ~ +5 W |
| Max System Voltage | 1500 Vdc (IEC/UL) |
| Max Series Fuse | 30 A |
| Mechanical Dimensions (L × W × H) | 67.80 × 44.65 × 1.18 in |
| Weight | 53.35 lb |
| Front / Back Cover | 2.0 mm AR-coated heat-strengthened glass / 2.0 mm heat-strengthened glass |
| Frame | Black/Silver anodized aluminum, 30 mm |
| Junction Box / Connector | IP68 (3 bypass diodes) / EVO2 or similar |
| Cables | ±1200 mm, 4 mm² (IEC) / 12 AWG (UL) |
| Mechanical Load | Front 5400 Pa (112 lb/ft²) · Rear 3600 Pa (75 lb/ft²) |
| Bifaciality | 80% ± 5% |
| Operating Temperature | −40 °C to +85 °C (−40 °F to +185 °F) |
| NMOT / NOCT | 42 ± 2 °C / 45 ± 2 °C |
| Temperature Coefficients | Pmax −0.29%/°C · Voc −0.25%/°C · Isc +0.045%/°C |
| Fire Rating | IEC Class A / UL Type 29 |
| Packing | 36 pcs/pallet; 756 pcs/40′ HQ |
| Warranties | 25-Year Product · 30-Year Linear Power |
About Runergy:
Runergy is a global leader in high‑efficiency photovoltaic innovation. Founded in 2013, it delivers vertically integrated solar solutions—from polysilicon to N‑type modules—with >63 GW cell capacity, Tier‑1 BNEF status, and a 2 GW U.S. plant in Alabama supporting clean‑energy expansion.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the HY-DH108N8B-450 panel?
The HY-DH108N8B-450 panel produces 450 watts of power, making it a high-efficiency choice for both residential and commercial solar installations.
Q: Are HY-DH108N8B-450 panels suitable for areas with low sunlight?
Yes, HY-DH108N8B-450 panels are engineered to perform efficiently even in low-light conditions such as hazy or cloudy weather, as well as during early mornings and late afternoons.
Q: What kind of warranty is offered for the HY-DH108N8B-450 panel?
The HY-DH108N8B-450 includes a 25-year product warranty and a 30-year linear power output warranty, ensuring long-term reliability and consistent energy production.
Q: Are these panels compatible with different mounting systems?
Yes, HY-DH108N8B-450 panels are compatible with a wide range of standard roof-mounted and ground-mounted solar racking systems, making installation simple and flexible.
Q: How durable are HY-DH108N8B-450 panels in harsh weather conditions?
These panels are built to withstand extreme environmental conditions, including heavy snow loads, strong winds, and high temperatures. The anti-reflective tempered glass enhances durability while maximizing energy output.
Q: Can HY-DH108N8B-450 panels help me save on energy costs?
Absolutely. With a high 450W output, these panels generate more electricity per square foot, helping reduce utility bills and shorten the overall payback period of your solar investment.
Q: How many panels do I need for my home?
This depends on your energy consumption and available installation space. As a general guideline, a home or business using approximately 10,000 kWh per year would typically require 22 to 25 HY-DH108N8B-450 panels. A certified installer can provide a precise system design.
Q: How many panels are in each pallet?
Each pallet includes 36 high-efficiency HY-DH108N8B-450 panels, offering convenience and value for larger-scale solar projects.
