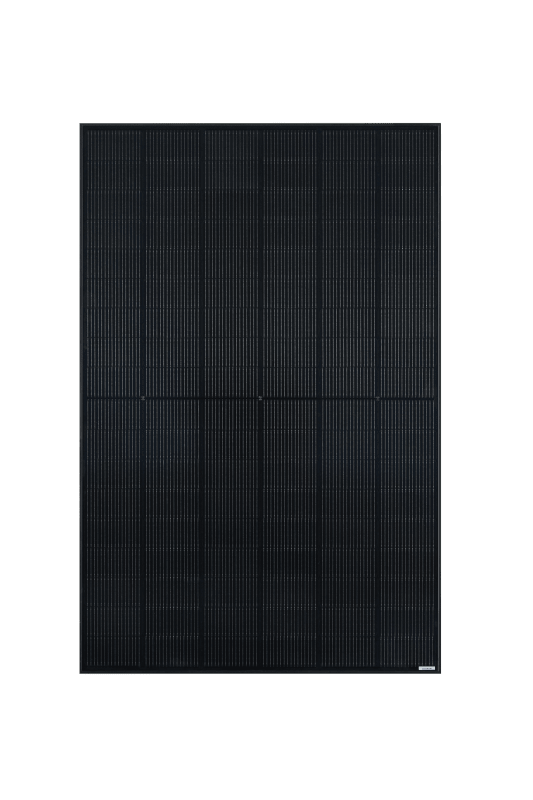

Runergy 440W N-Type Bifacial Dual Glass Solar Panel HY-DH108N8B-440
Runergy 440W N-Type Bifacial Dual Glass Solar Panel HY-DH108N8B-440
Runergy 440W N-Type Bifacial Dual Glass Solar Panel HY-DH108N8B-440
Runergy 440W N-Type Bifacial Dual Glass Solar Panel HY-DH108N8B-440
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Runergy 440W N-Type Bifacial Dual Glass Solar Panel HY-DH108N8B-440
HY-DH108N8B-440
Runergy 440W N-Type Bifacial Dual Glass Solar Panel HY-DH108N8B-440
The Runergy HY-DH108N8B-440 is a high-performance monocrystalline N-Type solar panel built with bifacial, dual-glass architecture and advanced 182mm half-cell technology. Delivering up to 22.5% efficiency and rear power gains up to 25%, this module is designed for superior durability, power output, and long-term reliability in residential, commercial, and utility-scale projects.
Key Benefits
High Power Output: Rated at 440W with 22.5% module efficiency using advanced N-Type cell design.
Bifacial Gain: Rear-side power enhancement of up to 25% for increased total energy yield.
Low Degradation: <1% in year one, <0.4% annual—supported by 30-year linear warranty.
Robust Build: Dual 2.0mm tempered glass layers ensure longevity, resistance, and low LID/LeTID.
Certified Quality: Complies with IEC/UL, ISO, and fire classification Type 29 for safety and reliability.
Special Technology
N-Type Half-Cell Architecture: Enhanced thermal and low-light performance.
Glass-Glass Structure: Improves structural strength, PID resistance, and weather durability.
1500V Compatibility: Supports high-voltage systems with lower BOS cost per watt.
Warranty
25-year product workmanship warranty and 30-year linear performance warranty (87.4% power output at year 30).
Best Uses
Utility-Scale Projects: Optimized for trackers and large PV arrays.
Commercial Rooftops: Excellent power density and temperature behavior.
Residential Applications: Sleek design with high bifacial energy yield potential.
Bifacial Design, N-Type Half-Cells, and Dual Glass Structure Explained
These advanced features define the high-efficiency performance and extended durability of the Runergy HY-DH108N8B-440 solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
N-Type Half-Cell Architecture
The panel utilizes N-Type monocrystalline cells with a half-cut layout, offering superior efficiency and thermal performance compared to traditional P-Type cells. N-Type cells are inherently more resistant to light-induced degradation (LID) and offer improved electron mobility, resulting in higher efficiency and longer operational stability. The half-cell configuration minimizes resistive losses and enhances energy yield even under partial shading.
Dual-Glass Structure
Encased between two layers of tempered glass, this panel provides exceptional mechanical strength and environmental protection. The dual-glass architecture enhances resistance to moisture, UV exposure, and extreme weather conditions like high winds and heavy snow. This design minimizes degradation and extends module lifespan, making it ideal for demanding installations requiring long-term reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | HY-DH108N8B-440 |
| Cell Type | Monocrystalline N-Type 182mm |
| No. of Cells | 108 (6×18) |
| Module Power (STC) | 440 W |
| Module Efficiency | 22.5% |
| Open Circuit Voltage (Voc) | 39.16 V |
| Short Circuit Current (Isc) | 13.88 A |
| Voltage at Max Power (Vmp) | 33.21 V |
| Current at Max Power (Imp) | 13.25 A |
| Rearside Power Gain | Up to 25% |
| Bifaciality | 80% ±10% |
| Max System Voltage | 1500V (IEC/UL) |
| Max Series Fuse Rating | 30 A |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Nominal Operating Temp (NOCT) | 42 ± 2°C |
| Temperature Coeff. (Pmax) | -0.29% / °C |
| Temperature Coeff. (Voc) | -0.25% / °C |
| Temperature Coeff. (Isc) | +0.045% / °C |
| Dimensions (L × W × H) | 67.80 × 44.65 × 1.18 in |
| Weight | 53.35 lbs |
| Front/Back Glass | 2.0mm AR-coated semi-tempered |
| Frame | Anodized aluminum alloy |
| Connector | PV-KST4-EVO2 / PV-KBT4-EVO2 |
| Junction Box | IP68 rated, 3 bypass diodes |
| Cable | 12 AWG (±47.24 in) |
| Max Load (Front/Back) | 5400 Pa / 2400 Pa |
| Certifications | IEC 61215 / 61730, UL 61730, ISO 9001 / 14001 / 45001 |
| Fire Rating | IEC Class A / UL Type 29 |
| Warranty | 25-Year Product / 30-Year Power Output |
About Runergy:
Runergy is a global leader in high‑efficiency photovoltaic innovation. Founded in 2013, it delivers vertically integrated solar solutions—from polysilicon to N‑type modules—with >63 GW cell capacity, Tier‑1 BNEF status, and a 2 GW U.S. plant in Alabama supporting clean‑energy expansion.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the HY-DH108N8B-440 panel?
The HY-DH108N8B-440 panel produces 440 watts of power, making it a highly efficient choice for both residential and commercial installations.
Q: Are HY-DH108N8B-440 panels suitable for areas with low sunlight?
Yes, HY-DH108N8B-440 panels are designed to perform efficiently even in low-light conditions such as hazy, cloudy skies and early mornings or late afternoons.
Q: What kind of warranty does Hoymiles offer for the HY-DH108N8B-440 panel?
Hoymiles offers a 25-year product warranty and a 30-year linear power output warranty, ensuring the panel delivers reliable performance over time.
Q: Are these panels compatible with different mounting systems?
Yes, HY-DH108N8B-440 panels are compatible with a wide variety of standard mounting systems, making installation straightforward for both roof-mounted and ground-mounted systems.
Q: How durable are HY-DH108N8B-440 panels in harsh weather conditions?
The HY-DH108N8B-440 panels are built to withstand extreme weather, including heavy snow, strong winds, and high heat. Their design also includes anti-reflective glass, which enhances their durability and efficiency.
Q: Can HY-DH108N8B-440 panels help me save on energy costs?
Absolutely! The high efficiency of the HY-DH108N8B-440 panel allows you to generate more electricity per square foot, which can reduce your energy bills and shorten the payback period on your solar investment.
Q: How many panels do I need for my home?
This depends on your energy usage and available space. As a general guide, for a residence or business using about 10,000 kWh/year, you would need approximately 23 to 26 Hoymiles HY-DH108N8B-440 panels. Consult with a certified installer to get a precise estimate.
Q: How many panels are in each pallet?
Each pallet includes 36 high-efficiency HY-DH108N8B-440 panels. By purchasing full pallets, you ensure both value and convenience for larger installations.
