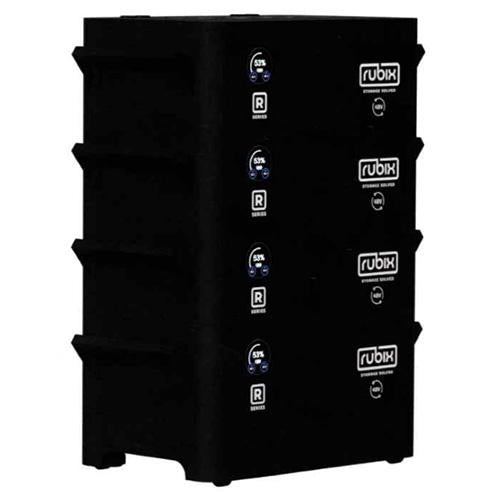

Rubix Battery 24 Volt 560 AH R-Series Lithium RRS-25560

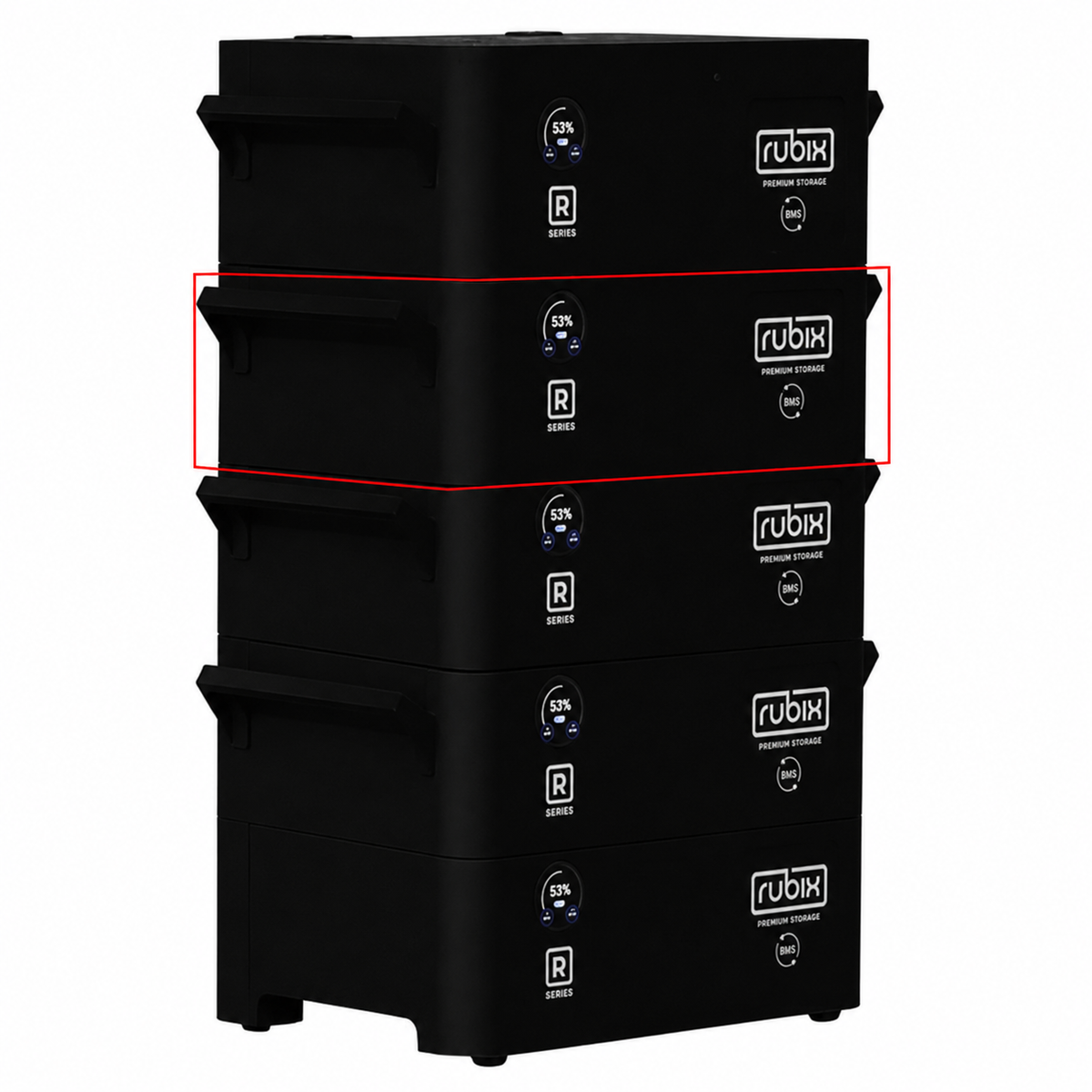

Includes: base, lid and caster Includes: one 24V 560AH (RRS-25560) stackable module
The Rubix R-Series RRS-25560 is a high-capacity lithium iron phosphate (LiFePO₄) battery engineered for scalable residential and commercial energy storage systems. Featuring a 25.6V nominal platform with 560Ah capacity, the RRS-25560 delivers 14.3 kWh of usable energy per module and supports large parallel configurations for high-demand applications.
Key Technology
-
14.34kWh High-Capacity Storage
560Ah capacity at 25.6V provides substantial energy per module, reducing system complexity. -
LiFePO₄ Prismatic Cell Chemistry
Delivers enhanced safety, long cycle life, and thermal stability for daily cycling applications. -
High Discharge & Inverter Start Capability
Supports up to 200A continuous discharge with 800A inverter start-up capability for demanding loads. -
Advanced BMS with Active Balancing
Integrated battery management system protects against voltage, temperature, and current extremes while maintaining cell balance.
Best Uses
-
Residential Solar + Storage
Ideal for high-capacity home energy storage and backup power systems. -
Commercial & Light Industrial Storage
Supports large parallel battery banks up to 64 batteries (917.5kWh total). -
Off-Grid & Hybrid Inverter Systems
Designed for stable operation with inverter-driven loads. -
Indoor Energy Storage Installations
IP50-rated, non-vented design intended for indoor use.
Safety & Monitoring
-
Integrated 250A breaker
-
BMS low/high voltage, temperature, and current protection
-
Pressure-vented cells for enhanced safety
-
Touchscreen LCD displays SOC, pack voltage, current, and fault logging
Warranty & Lifecycle
-
Cycle Life: 3,000 cycles @ 100% DoD / 4,500 cycles @ 80% DoD / 7,000 cycles @ 50% DoD
-
Retained Capacity: 80% at end of rated cycle life
-
Transport Certification: UN38.3
Product Specifications
| Specification | Details |
|---|---|
| Model | RRS-25560 |
| Nominal Voltage | 25.6 V |
| Capacity | 560 Ah |
| Energy Capacity | 14.336 kWh |
| Max Continuous Discharge | 200 A (5.12 kW) |
| Recommended Discharge | 180 A (5.12 kW) |
| Inverter Start Capability | 800 A |
| Recommended Absorb Voltage | 28.4 V |
| Max Absorb Voltage (Solar) | 28.8 V |
| Float Voltage | 27.2 V |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Max Batteries in Parallel | 64 |
| IP Rating | IP50 (Indoor use) |
| Operating Temperature | 32°F to 120°F |
| Dimensions (Battery) | 35.94 × 19.53 × 9.45 in |
| Weight (Battery) | 271 lbs |
About Rubix Battery:
Rubix Battery is a U.S.-based solar energy storage company that designs and manufactures premium lithium (LiFePO₄) battery systems for residential, commercial, and off-grid use. Formed from the merger of MillerTech and ARK Battery, Rubix focuses on scalable, stackable batteries with long cycle life, advanced management systems, and strong warranties to support reliable solar power storage.
High-Density Storage Built for Scalable Energy Systems
The Rubix RRS-25560 combines large per-module capacity, long cycle life, and advanced safety controls into a robust LiFePO₄ platform designed for serious energy storage deployments—from whole-home backup to large parallel commercial systems.
