Rubix 5.12 kWh Battery 24 Volt | 200AH | Stack Series Lithium LifePO4 Battery RS25200
MPN No: RS-25200
Expected ship date Feb 01 - 08
In Stock
$1,693.90
Rubix 5.12 kWh Battery 24 Volt | 200AH | Stack Series Lithium LifePO4 Battery RS25200
Rubix 5.12 kWh Battery 24 Volt | 200AH | Stack Series Lithium LifePO4 Battery RS25200
Regular price
$1,693.90
New
LESS THAN 50
Rubix 5.12 kWh Battery 24 Volt | 200AH | Stack Series Lithium LifePO4 Battery RS25200
Rubix 5.12 kWh Battery 24 Volt | 200AH | Stack Series Lithium LifePO4 Battery RS25200
Available
MPN No: RS-25200
Regular price
$1,693.90
Expected ship date Feb 01 - 08
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$1,693.90
Rubix Battery 24 Volt | 200AH | 5.12 kWh Stack Series Lithium LifePO4 Battery RS25200

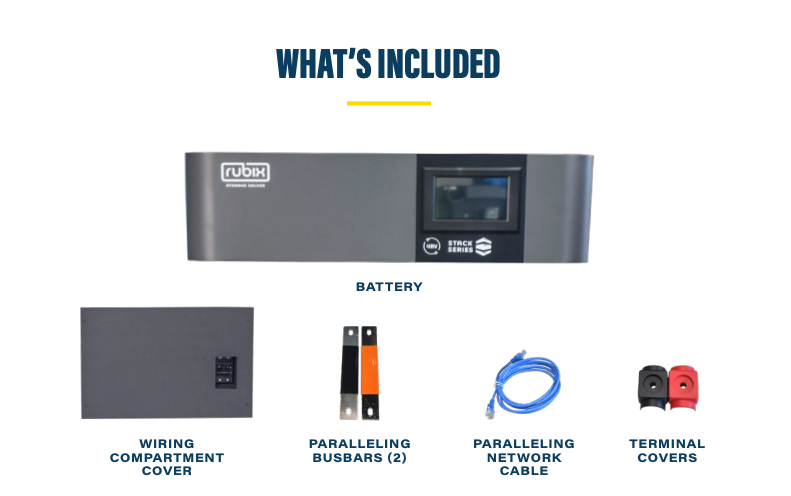

Includes one battery that can be stacked.

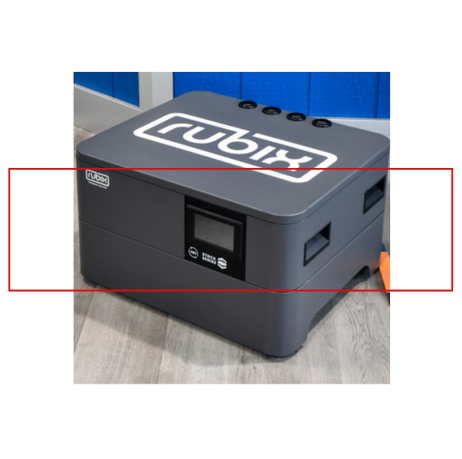

Does not include base and cover. Purchase here.

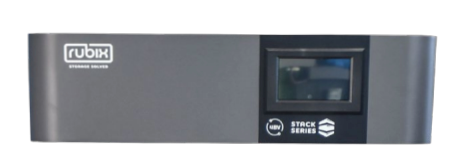

The Rubix RS25200 (24V200AH) Stack Series Battery is a modular 24-volt lithium iron phosphate (LiFePO₄) energy storage solution designed for residential backup, off-grid systems, and scalable solar applications. Delivering 200Ah of capacity and 5.12kWh of usable energy per module, the RS25200 (24V200AH) allows homeowners and installers to build flexible battery banks that grow with energy needs.
Key Technology
-
5.12kWh Modular Energy Storage
Each 24V module provides 200Ah of capacity, allowing systems to scale from small backup solutions to large battery banks. -
LiFePO₄ Battery Chemistry
Lithium iron phosphate cells deliver enhanced safety, thermal stability, and long service life compared to traditional lithium-ion chemistries. -

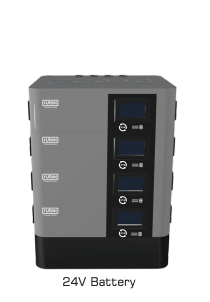

Stackable System Architecture
Supports up to 6 batteries per stack, making future expansion simple and cost-effective. -
Integrated Battery Management System (BMS)
Built-in protections for voltage, temperature, and current ensure reliable and safe operation.
Best Uses
-
Residential Solar Energy Storage
Ideal for pairing with 24V inverter systems to store solar energy for night-time or outage use. -
Backup Power Systems
Provides dependable energy during grid outages with expandable capacity. -
Off-Grid & Remote Power
Well-suited for cabins, workshops, and remote properties requiring reliable energy storage. -
Expandable Battery Banks
Start with a single module and add capacity over time as energy demands increase.
Safety & Monitoring
-
Integrated 250A breaker
-
Pressure-vented LiFePO₄ cells
-
Touchscreen LCD displays SOC, voltage, current, individual cell voltages, and fault logs
Warranty & Lifecycle
-
Cycle Life: 3,000 cycles @ 100% DoD / 4,500 cycles @ 80% DoD / 7,000 cycles @ 50% DoD
-
Design Life: 14+ years
-
Battery Certification: UL 9540A (pending)
-
Transport Certification: UN38.3
Product Specifications
| Specification | Details |
|---|---|
| Model | RS25200 (24V200AH) |
| Nominal Voltage | 25.6 V (24V class) |
| Capacity | 200 Ah |
| Energy Capacity | 5.12 kWh |
| Max Continuous Discharge | 150 A (3.84 kW) |
| Peak Discharge (3 sec) | 400 A (10.2 kW) |
| Max Continuous Charge | 140 A (3.58 kW) |
| Recommended Absorb Voltage | 28.4 V |
| Float Voltage | 27.2 V |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Max Batteries per Stack | 6 |
| IP Rating | IP50 (Indoor use) |
| Operating Temperature | 32°F to 120°F |

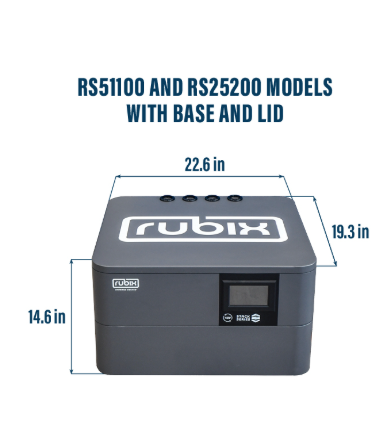

| Dimensions | 22.6 × 19.3 × 6.2 in |
| Weight | 108 lbs |
About Rubix Battery:
Rubix Battery is a U.S.-based solar energy storage company that designs and manufactures premium lithium (LiFePO₄) battery systems for residential, commercial, and off-grid use. Formed from the merger of MillerTech and ARK Battery, Rubix focuses on scalable, stackable batteries with long cycle life, advanced management systems, and strong warranties to support reliable solar power storage.
Modular 24V Storage Built for Safety and Scalability
The Rubix RS-24200 combines long-life LiFePO₄ chemistry, integrated safety features, and a stackable design into a reliable 24-volt energy storage solution—perfect for homeowners and installers looking for flexible, future-ready battery systems.
