≥ 36

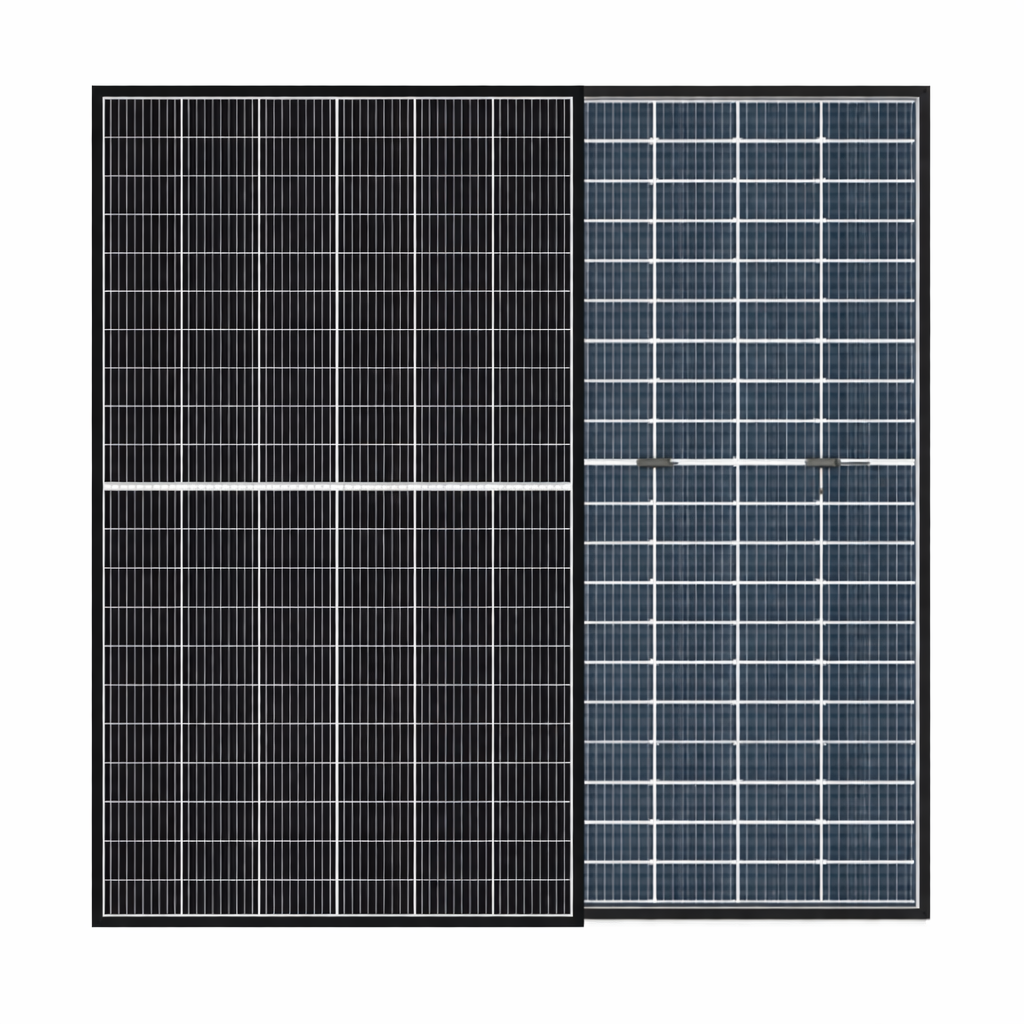

Resun 430W (Pallet of 36) Mono Half-Cut Bifacial 108 Cells RS8V430M-DG
MPN No: RS8V430M-DG
Expected ship date Jun 10 - 17
In Stock
$3,799.00
Pallet
Resun 430W (Pallet of 36) Mono Half-Cut Bifacial 108 Cells RS8V430M-DG
Resun 430W (Pallet of 36) Mono Half-Cut Bifacial 108 Cells RS8V430M-DG
Regular price
$3,799
$0.24/watt
Sale price
$105.52/per panel
LESS THAN 50
Pallet
Resun 430W (Pallet of 36) Mono Half-Cut Bifacial 108 Cells RS8V430M-DG
Resun 430W (Pallet of 36) Mono Half-Cut Bifacial 108 Cells RS8V430M-DG
Available
MPN No: RS8V430M-DG
Regular price
$3,799
$0.24/watt
Sale price
$105.52/per panel
Expected ship date Jun 10 - 17
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3,799
Resun 430W (Pallet of 36) Mono Half-Cut Bifacial 108 Cells RS8V430M-DG
MPN No:
RS8V430M-DG
Expected ship date Jun 10 - 17
≥ 36
Resun 430W (Pallet of 36) Mono Half-Cut Bifacial 108 Cells RS8V430M-DG
The RS8V430M-DG is a high-efficiency bifacial, double-glass photovoltaic module engineered for superior energy yield and long-term reliability. Featuring mono half-cut cells, a robust dual-glass design, and bifacial gain potential of up to 80% on the rear side, this module is ideal for high-performance residential solar projects.
Key Technology
-
430W High-Power Output
Delivers strong performance with module efficiency up to 22.02% under STC conditions. -
Bifacial Double-Glass Design
Dual-glass construction enables rear-side energy gain of 7–25% depending on installation conditions. -
108 Half-Cut Mono Cells
Improves performance under partial shading and reduces internal resistance losses. -
Excellent Anti-PID Performance
Designed to withstand high system voltages up to 1500V DC with strong insulation properties.
Best Uses
-
Residential Rooftop Systems
Ideal for homeowners seeking high-efficiency solar solutions. -
Distributed Generation Installations
Suitable for on-site solar systems requiring reliable performance and compact design.
-
High-Performance Residential Systems
Ideal for homeowners seeking maximum output and long service life.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Resun Solar |
| Model | RS8V430M-DG |
| Rated Power (STC) | 430 W |
| Module Efficiency | 22.02% |
| Open Circuit Voltage (Voc) | 38.60 V |
| Max Power Voltage (Vmp) | 32.15 V |
| Short Circuit Current (Isc) | 14.18 A |
| Max Power Current (Imp) | 13.38 A |
| Cell Type | Mono-crystalline, half-cut |
| Module Dimensions | 67.8 × 44.65 × 1.18 in |
| Weight | 52.47 lb |
| Front / Rear Glass | 2.0 + 2.0 mm tempered glass |
| Frame | Anodized aluminum |
| Junction Box | IP68, 3 bypass diodes |
| Maximum System Voltage | 1000V / 1500V DC |
| Max Series Fuse Rating | 30 A |
| Wind / Snow Load | 2400 Pa / 5400 Pa |
| Certifications | IEC 61215 / IEC 61730, UL Listed |
| Warranty | 12-Year Product / 30-Year Linear Power |
About Resun:
Resun is a global solar technology company specializing in high-quality photovoltaic panels and renewable energy solutions. Committed to innovation, sustainability, and reliability, Resun delivers efficient solar products for residential, commercial, and utility-scale projects worldwide.
Why Buy From US Solar Supplier
US Solar Supplier is an American-founded company based in Kentucky dedicated to offering top-quality solar components from trusted manufacturers. We provide competitive pricing, dependable inventory, and products backed by warranties you can trust.
Our inventory is updated daily with the latest solar technologies, and our experienced team is ready to assist with product selection, system design, and installation guidance.
Need Assistance?
Have questions before you order? Call 1-800-230-7004 to speak with our knowledgeable support team. We’re here to help with product details, compatibility questions, or purchasing support.
