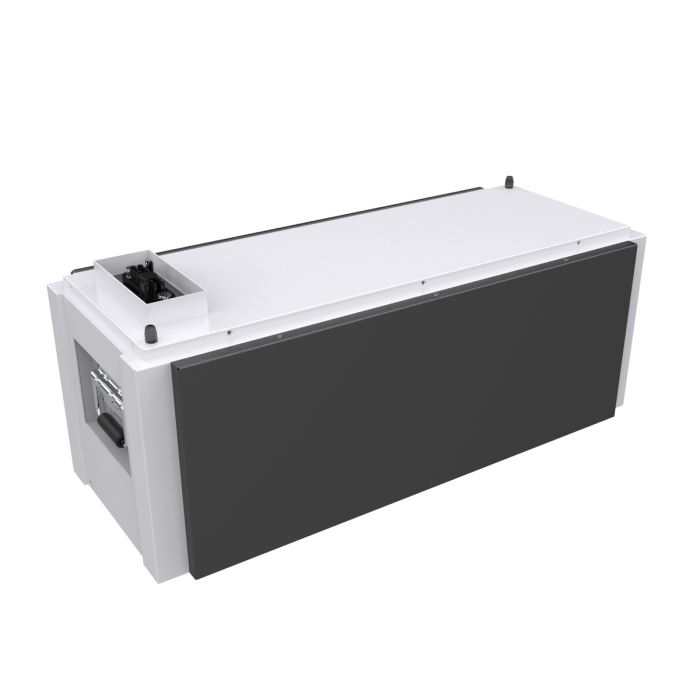

The Renon R-EM51100-XTL01 is a high-performance 5.12kWh lithium iron phosphate (LiFePO4) battery module designed specifically for the Renon Xtreme LV modular energy storage platform. Engineered for residential and light commercial energy storage applications, this battery module delivers exceptional safety, long cycle life, and reliable performance for self-consumption, peak shaving, backup power, and off-grid applications.
Built using advanced LiFePO4 cell technology and integrated battery management functionality through the Xtreme LV Master Control Module, the R-EM51100-XTL01 enables scalable energy storage configurations ranging from 10.24kWh to 30.72kWh per stack while supporting up to 15 complete systems operating in parallel for larger installations.
Key Technology
-
Advanced LiFePO4 Battery Chemistry
Provides exceptional thermal stability, high safety performance, and long operational life. -
5.12kWh Modular Energy Capacity
Allows flexible system sizing based on current and future energy requirements. -
Scalable Architecture
Supports up to six battery modules per stack and up to 15 complete systems in parallel. -
8,000 Cycle Design Life
Delivers long-term reliability and reduced lifetime ownership costs. -
High Power Capability
Supports high continuous and surge discharge currents for demanding loads. -
Integrated Communication Support
Communicates through the master controller using CAN, RS485, and Wi-Fi interfaces. -
Indoor and Outdoor Installation Capability
IP65-rated enclosure provides installation flexibility. -
Natural Cooling Design
Fanless operation improves reliability and eliminates maintenance requirements.
Best Uses
-
Residential Solar Storage Systems
Stores excess solar generation for nighttime use and backup power. -
Peak Shaving Applications
Reduces utility demand charges and electricity costs. -
Self-Consumption Optimization
Maximizes utilization of on-site solar energy production. -
Backup Power Systems
Provides reliable energy storage during utility outages. -
Expandable Energy Storage Installations
Ideal for projects requiring future capacity expansion.
Warranty
- Product Warranty: 10 Years
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
- Cycle Life: 8,000 Cycles
- Ingress Protection: IP65
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Renon Power |
| Model | R-EM51100-XTL01 |
| Series | Xtreme LV Series |
| Product Type | Lithium Battery Module |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Energy | 5.12 kWh |
| Nominal Voltage | 51.2V DC |
| Recommended Charging Voltage | 56.8V DC |
| Maximum Charging Voltage | 58.4V DC |
| Discharge Cut-Off Voltage | 43.2V DC |
| Maximum Operating Current | 100A (Module Level) |
| Peak Current (10 Seconds) | 98A |
| Peak Current (2 Seconds) | 120A |
| Cycle Life | 8,000 Cycles |
| Communication | Managed through Master Controller (RS485, CAN, Wi-Fi) |
| Cooling Method | Natural Cooling |
| Installation Location | Indoor or Outdoor |
| Ingress Protection Rating | IP65 |
| Operating Temperature (Charge) | 32°F to 122°F (0°C to 50°C) |
| Operating Temperature (Discharge) | -4°F to 122°F (-20°C to 50°C) |
| Storage Temperature | -4°F to 131°F (-20°C to 55°C) |
| Maximum Humidity | 90% RH Non-Condensing |
| Maximum Altitude | 6,561 ft (2,000 m) |
| Battery Module Dimensions | 25 × 10.6 × 9.0 in |
| Battery Module Weight | 116.8 lb |
| Certifications | UL1973, UL9540, UL9540A, IEC62619, IEC62040, CEI 0-21, UN38.3, EN61000, EN62311 |
| Expandable Capacity | Up to 30.72kWh per Stack |
| Maximum Parallel Systems | 15 Systems |
About Renon Power:
Renon Power develops advanced residential and commercial battery energy storage systems focused on energy independence, backup power, and renewable energy integration. The company's modular storage platforms combine advanced lithium battery technologies with intelligent energy management systems for maximum reliability and scalability.
Modular Energy Storage Designed for Expansion
The Renon R-EM51100-XTL01 combines safe LiFePO4 chemistry, long cycle life, scalable capacity, and intelligent energy management into a flexible battery platform designed for modern residential and commercial energy storage systems.
