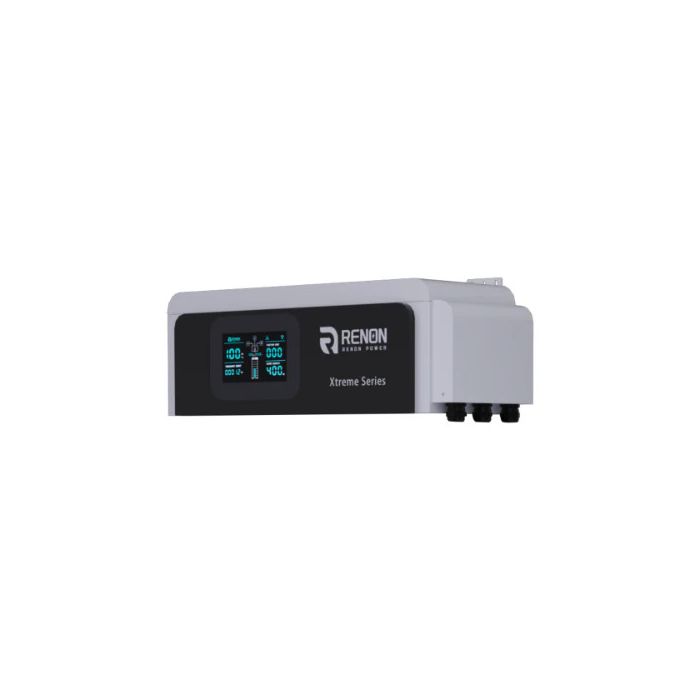

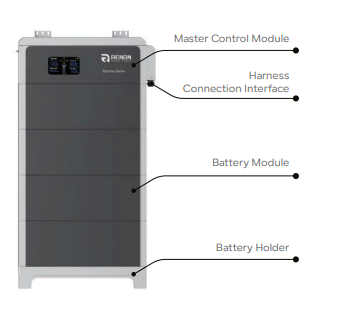

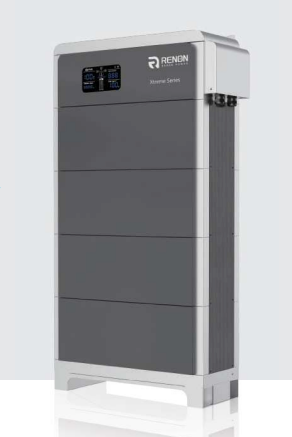

The Renon Xtreme LV Master Control & Base (R-MC300-XTL-01) is the controller/enclosure foundation for the modular Xtreme LV battery stack. It manages communications, safety, and system integration while providing an IP65 outdoor-rated base for 2–6 LV battery modules per stack, supporting peak-shaving, self-consumption, and backup applications.
Key Benefits
Modular & Scalable: Builds complete stacks with 2–6 battery modules; up to 15 systems in parallel for larger sites.
Outdoor-Ready: IP65 protection with natural cooling for indoor or outdoor installs.
Smart Connectivity: RS485/CAN for closed-loop control plus Wi-Fi for app monitoring and management.
Certified Safety: Designed to meet UL1973, UL9540/UL9540A, IEC 62619 and UN38.3 requirements when used as a system.
Special Technology
Energy Intelligence Platform: Master control coordinates pack communications and system protection for peak-shaving, self-consumption, and emergency backup modes.
Warranty
10-Year Manufacturer Warranty (see Renon warranty letter for details).
Best Uses
Residential & Light Commercial ESS: Builds a flexible LV storage stack that integrates with common inverters and EMS for TOU shifting and backup power.
Specifications Table
| Specification | Data |
|---|---|
| Model | R-MC300-XTL-01 (Xtreme LV Master Control & Base) |
| System Type | Low-Voltage Modular LFP Battery Platform (controller/base component) |
| Stack Size (per system) | 2–6 battery modules per stack |
| Parallel Capability | Up to 15 systems in parallel |
| Communications | RS485, CAN, Wi-Fi |
| Operating Temperature | Charge 0°C–50°C; Discharge −20°C–50°C (0–35°C recommended) |
| Cooling | Natural convection |
| Ingress Rating | IP65 (indoor or outdoor installation) |
| Safety / Compliance (system) | UL1973, UL9540, UL9540A; IEC 62619, CEI 0-21; UN38.3; EN-61000/62311 |
| Dimensions (W × D × H) | 5.0 × 10.6 × 13.3 in Master Control & Base |
| Net Weight | 66 lb Master Control & Base |
| Typical Stack Dimensions | 2 modules: 635 × 268 × 795 mm; 6 modules: 635 × 268 × 1705 mm |
| Typical Stack Net Weight | 2 modules: ~139–141 kg; 6 modules: ~351–353 kg |
| Use Cases | Peak-shaving, self-consumption, energy surplus capture, emergency backup |
| Warranty | 10 Years |
