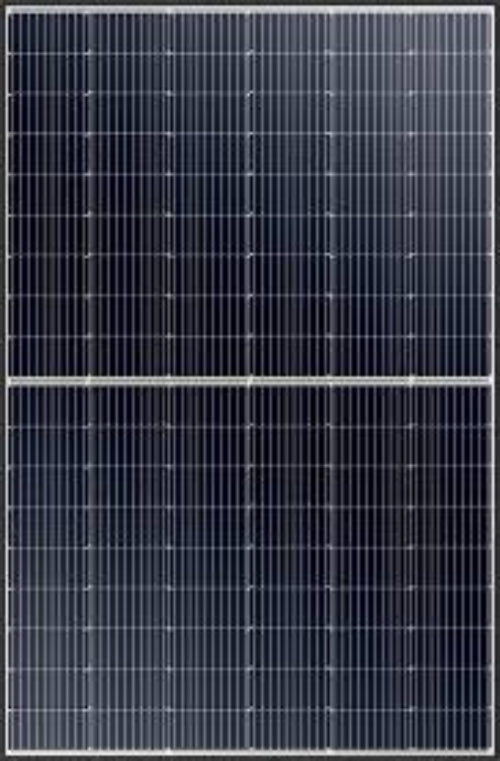

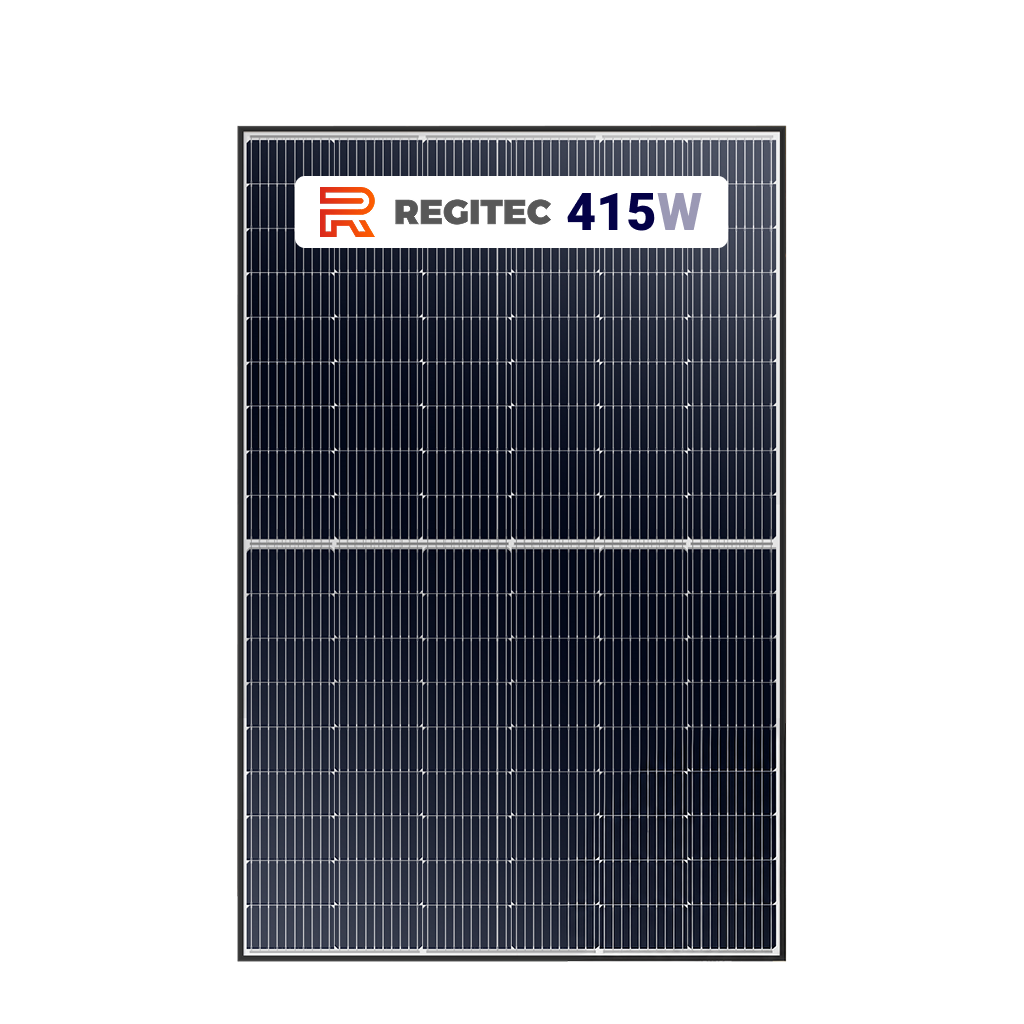

REGITEC 415W Monocrystalline PERC Solar Panels – Pallet of 36

14.94kW Solar Panel Pallet with 108-Cell Design and 21.3% Efficiency

Designed and engineered in Belgium

California Energy Commission EC Listed

415W Per Panel | 36 Panels Per Pallet | 14.94kW Total | 21.3% Efficiency
The REGITEC RMH54-415B1 is a high-efficiency 415W monocrystalline PERC solar panel designed for residential, commercial, and ground-mounted solar installations. Featuring 108 monocrystalline cells, durable tempered glass, and advanced PERC technology, these solar modules deliver reliable energy production in a compact, installation-friendly format.

Sold as a complete pallet of 36 solar panels, this package provides 14,940W (14.94kW DC) of total rated solar capacity.

Product Highlights

• 415W rated output: High-performance solar power generation.
• 36 panels per pallet: 14.94kW total DC capacity.
• 21.3% module efficiency: Efficient conversion of sunlight into electricity.
• Monocrystalline PERC cells: Advanced solar technology for reliable energy production.
• 108-cell design: 182mm monocrystalline cells arranged in a 2 × 54 configuration.
• Compact dimensions: Approximately 67.8 × 44.6 inches per panel.
• Excellent low-light performance: Designed to maintain production under reduced irradiance.
• Anti-LID and Anti-PID technology: Helps minimize common causes of module degradation.
• 1500V maximum system voltage: Supports compatible solar string designs.
• IP68 junction box: Durable environmental protection.
• 25-year product warranty: Manufacturer-published product coverage.
• 30-year performance warranty: Long-term power output coverage.

Manufacturer: REGITEC

Model: RMH54-415B1

Quantity: 36 Solar Panels Per Pallet

High-Efficiency 415W Solar Panels for Residential and Commercial Projects

The REGITEC RMH54-415B1 combines high-efficiency monocrystalline PERC technology with a compact 108-cell module design.

Each solar panel delivers 415W of rated DC power under standard test conditions, providing a balance of high output, manageable panel dimensions, and installation flexibility.

With 36 panels per pallet, installers receive a combined 14.94kW of rated solar capacity, making this package suitable for residential solar projects, commercial rooftops, and ground-mounted arrays.

The module's 21.3% efficiency allows installers to generate substantial solar capacity while making effective use of available mounting space.

Monocrystalline PERC Solar Cell Technology

The REGITEC 415W solar panel uses monocrystalline Passivated Emitter and Rear Cell (PERC) technology to improve sunlight absorption and electrical conversion efficiency.

PERC technology incorporates an additional passivation layer that helps reduce electrical losses and improve overall solar cell performance.

PERC Technology Benefits

• High conversion efficiency: 21.3% module efficiency.
• Improved light absorption: Designed to capture more usable sunlight.
• Low-light performance: Supports energy production during reduced sunlight conditions.
• Anti-LID technology: Helps resist light-induced degradation.
• Anti-PID design: Helps reduce potential-induced degradation.
• Reliable daily production: Suitable for grid-tied and hybrid solar applications.

108-Cell Design with Compact Panel Dimensions

The RMH54-415B1 features 108 monocrystalline cells arranged in a 2 × 54 configuration.

Its dimensions of 1722 × 1134 × 30mm make it a practical choice for projects where panel size and installation flexibility are important.

Module Design Advantages

• 415W rated output in a compact module format.
• Approximately 67.8-inch panel length.
• Approximately 44.6-inch panel width.
• 30mm anodized aluminum frame.
• 21.5kg (47.4 lbs) panel weight.
• Compatible with appropriately sized rooftop and ground-mount racking systems.

The module's dimensions and weight support efficient transportation, handling, and installation.

Reliable Performance in Different Weather Conditions

REGITEC designs the RMH54-415B1 for dependable operation across a wide range of environmental conditions.

The panel features a maximum power temperature coefficient of -0.350%/°C and an operating temperature range of -40°C to +85°C.

Temperature Performance

• Operating temperature: -40°C to +85°C.
• Pmax temperature coefficient: -0.350%/°C.
• Voc temperature coefficient: -0.275%/°C.
• Isc temperature coefficient: +0.045%/°C.
• Nominal operating cell temperature: 45°C ±2°C.

These characteristics help installers estimate solar production and design systems for different climates.

Durable Construction for Long-Term Solar Performance

The REGITEC RMH54-415B1 features high-transmissivity, low-iron tempered glass and an anodized aluminum frame designed for long-term outdoor use.

Construction Features

• 3.2mm tempered front glass: Anti-reflective coating supports sunlight transmission.
• Anodized aluminum frame: Durable structural support.
• IP68 junction box: Protection against moisture and environmental exposure.
• MC4-compatible connectors: Standard PV electrical connections.
• 4.0mm² output cables: Factory-installed solar wiring.
• 1200mm positive and negative leads: Flexible module connections.
• High mechanical load ratings: Supports appropriately engineered rooftop and ground-mounted installations.

Strong Mechanical Load Ratings

The REGITEC 415W solar panel is engineered to withstand demanding environmental conditions.

Mechanical Load Specifications

• Front-side mechanical load: 5,400Pa.
• Rear-side mechanical load: 2,400Pa.
• Frame material: Anodized aluminum alloy.
• Front glass: 3.2mm tempered glass.

These ratings support use in solar installations designed for appropriate wind and snow loading conditions.

25-Year Product and 30-Year Performance Warranty

REGITEC publishes a 25-year product warranty and a 30-year linear power performance warranty for the RMH54-B1 solar panel series.

The manufacturer's performance warranty chart shows a guaranteed output level of 80.68% after 30 years.

Warranty Highlights

• 25-year product warranty: Manufacturer product quality coverage.
• 30-year performance warranty: Long-term power output coverage.
• Year 1: 97% guaranteed power output.
• Year 30: 80.68% guaranteed power output.

Ideal Solar Applications

• Residential rooftop solar installations
• Commercial solar arrays
• Ground-mounted solar systems
• Grid-tied solar installations
• Hybrid solar and battery storage systems
• Solar system expansions
• Small business and agricultural solar projects
• Installations requiring compact, high-efficiency panels

Product Specifications

Pallet Quantity and Shipping Information

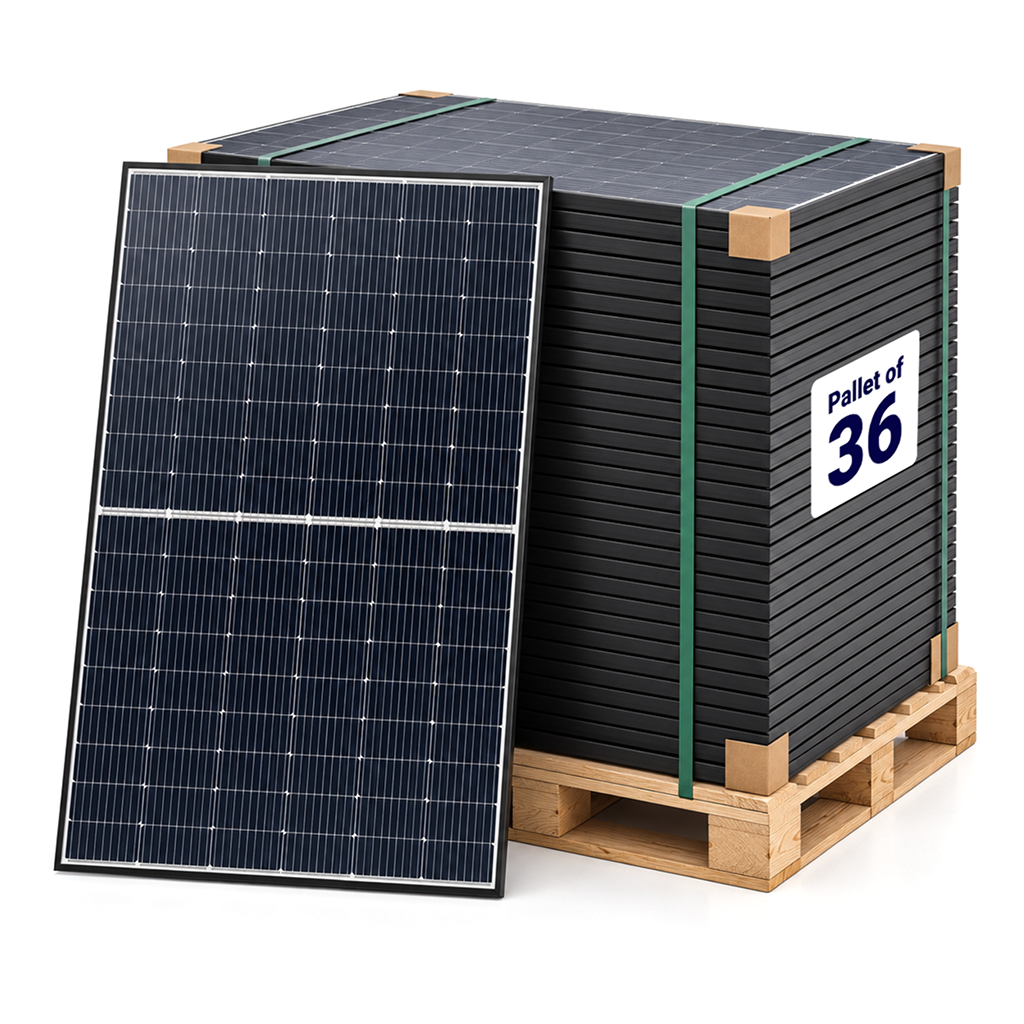

Each pallet includes 36 REGITEC 415W monocrystalline solar panels, providing 14.94kW of total rated DC solar capacity.

Pallet Details

• Panels per pallet: 36
• Power per panel: 415W
• Total rated capacity: 14,940W
• Individual panel weight: 47.4 lbs
• Combined panel weight: Approximately 1,706 lbs, excluding pallet and packaging
• Shipping method: Palletized freight
• Unloading: Appropriate unloading equipment recommended

Solar Panel and Inverter Compatibility

The REGITEC RMH54-415B1 can be paired with compatible grid-tied, hybrid, and off-grid solar equipment.

Its electrical characteristics make it suitable for solar installations using properly sized string inverters, microinverters, and charge controllers.

Key Electrical Specifications

• Vmp: 31.61V
• Voc: 37.45V
• Imp: 13.13A
• Isc: 14.02A
• Maximum system voltage: 1500V DC
• Maximum series fuse rating: 25A

These specifications help installers determine appropriate PV string sizing and inverter input compatibility.
