Schneider Electric Control Relay for QO Load Centers (20A 120V) QO200PWX120
QO200PWX120
Schneider Electric Control Relay for QO Load Centers (20A 120V) QO200PWX120

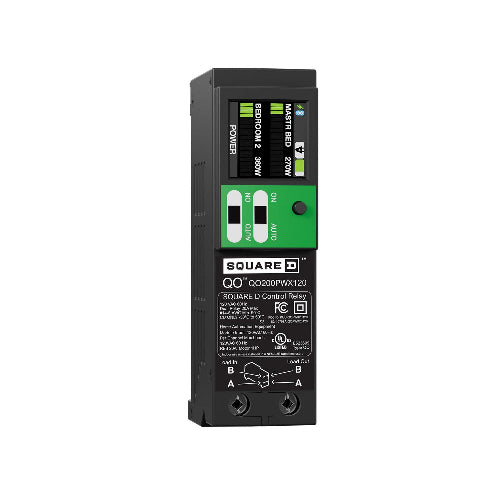

The Schneider Electric QO200PWX120 is a smart control relay module for use with QO load centers. It supports automated circuit control via the Schneider Energy Monitor and the Schneider Home mobile app. Ideal for load shedding or smart panel integrations, it offers 20A switching capacity and wireless Zigbee communication.
Key Benefits
Smart Automation: Enables load management when paired with the Schneider Energy Monitor and app.
Wireless Control: Communicates via Zigbee (2.4 GHz) over distances up to 50 meters.
Simple Integration: Installs in 2 spaces of QO load centers for easy panel upgrade.
Clear Display: Equipped with a built-in LCD screen for system status feedback.
Special Features
Mobile App Compatible: Works with Schneider Home for remote control and monitoring.
Relay Contact: Includes 1 NC contact for circuit switching.
Energy Efficient: Operates with a 120V AC supply and 1920 VA load power capacity.
Warranty
Standard Schneider Electric warranty applies (check distributor terms).
Best Uses
Smart Home Panels: Enables intelligent circuit control through connected apps.
Backup Systems: Supports automated load prioritization and shedding strategies.
Energy Monitoring: Works with the Schneider Energy Monitor for system-wide visibility.
Specifications Table
| Specification | Data |
|---|---|
| Model | QO200PWX120 |
| Product Type | Control Relay |
| Rated Supply Voltage | 120 V AC |
| Maximum Load Current | 20 A |
| Load Power | 1920 VA |
| Communication Type | Zigbee (2.4 GHz), 2.5 mW, range < 50 m |
| Contact Type | 1 NC |
| Compatible System | Schneider Energy Monitor |
| App Compatibility | Schneider Home |
| Panel Compatibility | QO Load Centers |
| Number of Spaces Required | 2 |
| Display | LCD Screen |
| Wire Gauge | AWG 14–8 Cu, AWG 12–8 solid bare Cu |
| Tightening Torque | 11.86 lbf-in (1.34 N·m) |
| Dimensions (H × W × D) | 4.2 × 7.5 × 1.7 in |
| Net Weight | 0.65 lbs |
| GTIN | 785901903956 |
| Certifications | CUL |
| Country of Origin | China |
| Environmental Compliance | Under RoHS Investigation |
| Warranty | Standard Schneider Electric warranty |
