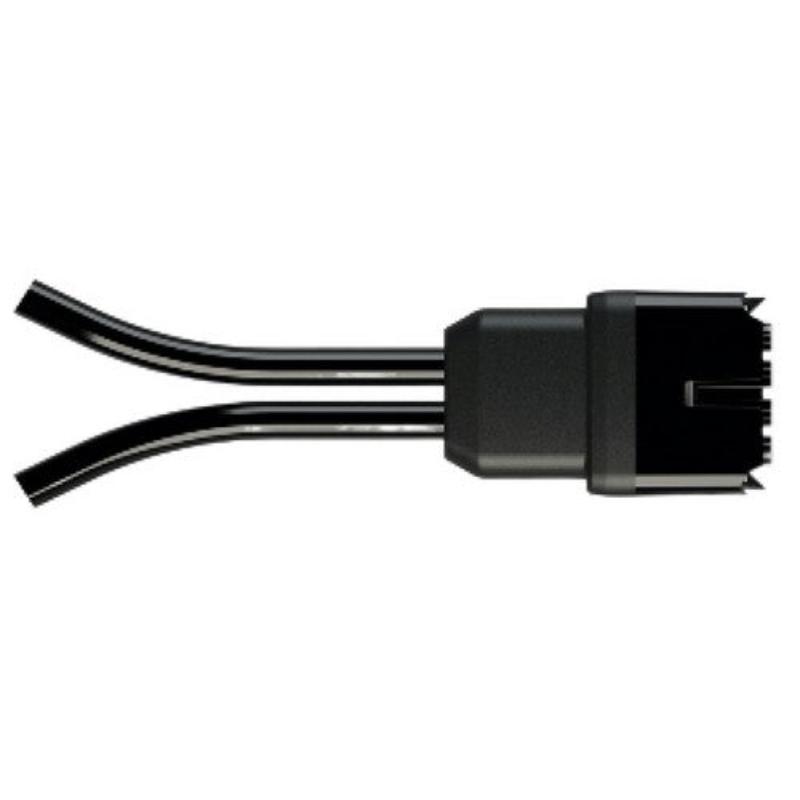

QD Portrait 1.7m QD-12-13-120 (1922)
QD Portrait 1.7m QD-12-13-120 (1922)
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
QD Portrait 1.7m QD-12-13-120 (1922)
Key Features
-
Designed for IQ8 Commercial Microinverters:
- Ideal for grid-tied, three-phase 208V PV systems.
- Provides neutral sensing for phase loss protection and self-phase balancing.
-
Efficient Installation:
- Pre-spaced connectors at 1.7 m (5.6 ft), optimized for portrait-oriented module setups.
- Lightweight and modular design for quick and cost-effective installations.
-
Reliable and Durable:
- Locking-type connectors ensure secure and stable connections.
- Rated for outdoor use with UV resistance and wet environment compatibility.
-
Safety Compliance:
- UL-certified cable assemblies and raw cables.
- Meets fire safety standards with an FT4 flame rating.
-
Ease of Use:
- Phase ID markings on connectors for accurate identification (C1: L1-L2, C2: L2-L3, and C3: L3-L1).
- Plug-and-play center feed capability for simplified installations with <1% voltage rise.
Applications
- Compatible with Enphase IQ8 commercial microinverter systems.
- Suitable for large-scale, three-phase PV installations with portrait module orientation.
Accessories
-
Field Wireable Connectors:
- Male (QD-CONN-10M) and Female (QD-CONN-10F) connectors for raw cable connections.
- Sealing Caps (QD-SEAL-10): Protect unused connectors.
- QD Terminators (QD-TERM-10): Seal unused cable ends.
- QD Disconnect Tool (QD-DISC-10): Facilitates connector detachment during maintenance.
- QD Cable Clips (ET-CLIP-100): Secure cable to racking systems or bundle cable sections.
Specifications
QD-12-13-120 Cable
| Parameter | Value |
|---|---|
| Model | QD-12-13-120 |
| Conductor Type | THHN/THWN-2 (dry/wet) |
| Conductor Specification | 12 AWG |
| Voltage Rating | 600 V |
| Connector Spacing | 1.7 m (5.6 ft) |
| Connector Rating | Up to 277 VAC |
| Outer Diameter | 11.5 mm |
| Max Conductor Resistance | 5.43 Ω/km (20ºC) |
| Compliance | UL 3003, UL 9703 |
| Flame Rating | FT4 |
| Environmental Resistance | UV, oil, and wet conditions |
