Enphase PLC Line Filter 400A 3 Phase QD-LCF-400-3P
QD-LCF-400-3P
Enphase PLC Line Filter 400A 3 Phase QD-LCF-400-3P

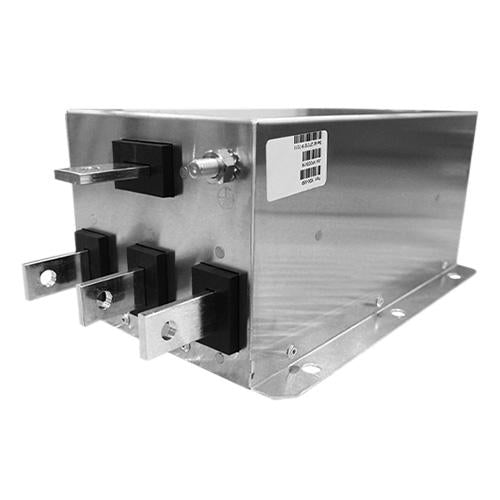

The Enphase QD-LCF-400-3P is a high-capacity three-phase line filter designed to isolate power line communication (PLC) domains in commercial solar applications. It supports IQ8P-3P or IQ8H-3P Microinverters and is ideal when multiple Enphase IQ Gateway Commercial 2 devices share a utility transformer or when site loads introduce electrical noise.
Key Benefits
PLC Domain Isolation: Separates PLC signals to prevent communication interference across multiple IQ Gateways.
High Current Rating: Supports up to 400 A per line, making it suitable for large-scale commercial systems.
Built-In Surge Immunity: Filters electrical noise that may affect inverter communications and monitoring.
No Phase Coupler Required: Simplifies installation by eliminating the need for additional couplers.
Special Technology
Insertion Loss & Impedance: >50 dB insertion loss and >100 Ω impedance across 80–130 kHz PLC frequency band.
Thermal Performance: Designed to operate in extreme environments up to 149°F (65°C).
Warranty
Backed by Enphase’s standard commercial accessories warranty (refer to Enphase for details).
Best Uses
Large Commercial Installations: Prevents PLC crosstalk when deploying multiple IQ Gateways on shared transformers.
Industrial Environments: Filters out electrical noise from heavy machinery affecting microinverter communication.
Three-Phase Solar Arrays: Designed to work specifically with IQ8P-3P and IQ8H-3P inverter systems.
Specifications Table
| Specification | Data |
|---|---|
| Model | QD-LCF-400-3P |
| Rated Current | 400 A (temperature adjusted to 65°C) |
| Rated Voltage | 480 VAC +10% |
| Frequency | 50/60 Hz |
| Power Dissipation | 75 W max (current dependent) |
| Operating Temperature | -40°F to 149°F (-40°C to 65°C) |
| Weight | 31.0 lbs |
| Dimensions (L × W × H) | 17.36 × 6.69 × 5.90 in |
| Impedance | >100 Ω (80–130 kHz) |
| Insertion Loss | >50 dB (80–130 kHz) |
| Leakage Current | <10 mA @ 480 V |
| Certifications | cURus, EN60939, RoHS |
| Terminal Type | Bus bar (25 mm with M10 bolt), Ground (M10) |
| Recommended Conductor Size | 500 kcmil |
| Mounting | Use integrated holes in suitable enclosure |
