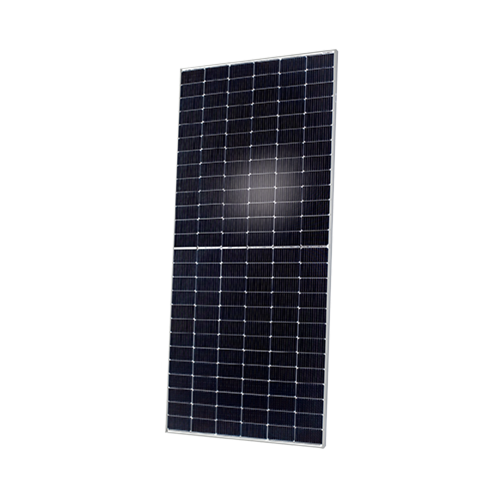

The Qcells Q.PEAK DUO XL-G11S.L3/BFG 590W is a high-power bifacial solar module designed for large ground-mounted and tracker-based PV systems. Built with 156 monocrystalline Q.ANTUM half-cells, dual-glass construction, and Qcells' advanced Q.ANTUM DUO technology, the module delivers strong front-side efficiency together with additional rear-side energy generation.

The L3/BFG version includes domestic content and contains U.S.-manufactured components that can contribute toward qualification for the domestic content bonus for applicable tax credits, subject to applicable rules and tax guidance.

Key Technology

• 590W Rated Power
  Provides 590W minimum maximum-power output at Standard Test Conditions with a positive power tolerance of +5W / -0W.

• 21.1% Minimum Module Efficiency
  High power density helps maximize installed capacity across large-format PV arrays.

• Bifacial Q.ANTUM Solar Cells
  Captures sunlight from both the front and rear surfaces of the module, increasing total energy yield under suitable installation conditions.

• Up to 21% Bifacial Energy Yield Gain
  Qcells highlights rear-side energy gain of up to 21% depending on system design, ground reflectivity, mounting height, and other site conditions.

• Q.ANTUM DUO Technology
  Optimized module layout and cell architecture are designed to increase power output while helping reduce levelized cost of energy.

• 156 Half-Cell Architecture
  Uses 6 × 26 monocrystalline Q.ANTUM half-cells for efficient current collection and reliable long-term operation.

• Domestic Content
  The L3/BFG version includes U.S.-manufactured components that may contribute toward applicable domestic-content bonus qualification.

• Dual-Glass Construction
  Features 2.0 mm thermally pre-stressed front glass with anti-reflection technology and 2.0 mm semi-tempered rear glass.

• Anti-LID & Anti-PID Technology
  Designed to reduce long-term degradation associated with light-induced degradation and potential-induced degradation.

• Hot-Spot Protect
  Qcells incorporates Hot-Spot Protect technology to improve module reliability under uneven operating conditions.

• Strong Snow & Wind Load Capability
  Rated for test loads up to 5400 Pa push and 3750 Pa pull, supporting demanding mounting environments.

• 1500VDC System Voltage
  Supports high-voltage PV system architecture with a maximum system voltage of 1500V.

• 30-Year Performance Warranty
  Qcells guarantees at least 98% of nominal power during the first year, followed by maximum annual degradation of 0.45%, with at least 84.95% retained power at year 30.

Best Uses

• Ground-Mounted Solar Arrays
  Designed for high-capacity ground-mounted PV systems requiring large-format, high-wattage bifacial modules.

• Single-Axis Tracker Systems
  The module includes dedicated tracker mounting provisions and is specifically identified by Qcells as suitable for solar power plants with trackers.

• Bifacial Energy Harvesting
  Well suited for elevated installations or reflective ground surfaces where rear-side irradiance can contribute additional energy.

• Projects Targeting Domestic Content
  The L3/BFG configuration includes domestic content and may support projects seeking applicable domestic-content bonus qualification.

• High Snow & Wind Load Locations
  Robust mechanical design supports demanding structural environments when installed according to Qcells mounting instructions.

Product Specifications

High-Power Bifacial Performance with Domestic Content

The Qcells Q.PEAK DUO XL-G11S.L3/BFG 590W combines 590W output, 21.1% minimum efficiency, bifacial Q.ANTUM technology, up to 21% potential rear-side energy gain, 1500VDC architecture, strong 5400/3750 Pa test-load capability, dual-glass construction, domestic content, and a 30-year performance warranty in a durable large-format solar module.
