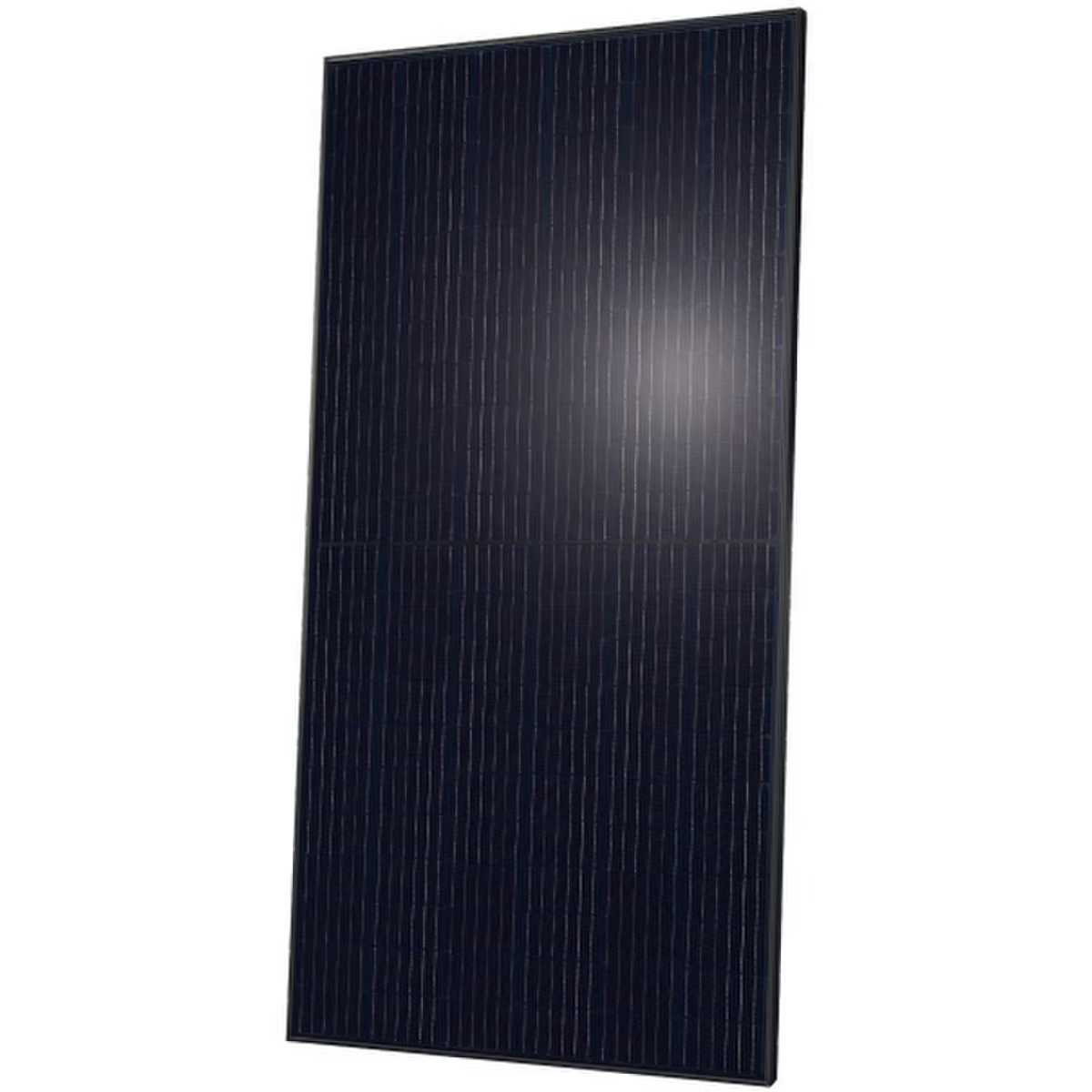

Qcells 410W All-Black Solar Panel with Domestic Content

Q.PEAK DUO BLK ML-G10.C+ | 132 Half-Cut Mono PERC Cells

410W Rated Output | 20.9% Minimum Module Efficiency | Includes Domestic Content
All-black residential solar panel featuring Q.ANTUM DUO Z technology, MC4 connectors, and U.S.-manufactured junction box, encapsulant, and backsheet components.

Reliable Solar Power with a Clean Rooftop Appearance

The Qcells Q.PEAK DUO BLK ML-G10.C+ delivers 410W of rated output with a black frame and black backsheet for a uniform rooftop appearance. Its 132 monocrystalline half-cells use Q.ANTUM DUO Z technology and a zero-gap layout to make efficient use of the module surface.

With a minimum module efficiency of 20.9%, this panel is a practical choice for residential rooftops and other compatible solar installations. Each module measures approximately 74.0 × 41.1 inches and weighs 48.5 pounds.

This product includes domestic content through its U.S.-manufactured junction box, encapsulant, and backsheet components.

Product Highlights

410W rated output under standard test conditions
20.9% minimum module efficiency for the 410W model
Includes U.S.-manufactured junction box, encapsulant, and backsheet
Q.ANTUM DUO Z technology with zero-gap cell layout
132 monocrystalline Mono PERC half-cells
Black anodized aluminum frame and black backsheet
3.2mm front glass with anti-reflection technology
Anti-LeTID, Anti-PID, and Hot-Spot Protect technology
0 to +5W power tolerance
Stäubli MC4 connectors
25-year product warranty
25-year linear performance warranty

Includes U.S.-Manufactured Components

This specific product includes a U.S.-manufactured junction box, encapsulant, and backsheet. These components provide domestic content for projects evaluating domestic sourcing requirements.

Domestic content applies to the specified components. Project-level incentive eligibility depends on the complete installation and applicable requirements. Confirm the relevant manufacturer documentation for your project.

Perfect For

Residential rooftop solar installations
Homeowners looking for an all-black panel appearance
Projects requiring documented domestic components
Ground-mounted systems with compatible racking
Grid-connected solar systems with properly matched equipment
Off-grid and battery-based systems with compatible power electronics

Q.ANTUM DUO Z Technology

Q.ANTUM DUO Z combines Qcells’ monocrystalline half-cell technology with a zero-gap cell layout. Reducing the space between cells increases the active cell area within the module.

The panel also incorporates Anti-LeTID, Anti-PID, and Hot-Spot Protect technologies to support long-term reliability. Actual energy production depends on sunlight, temperature, shading, orientation, and system design.

Built for Outdoor Installations

The module combines 3.2mm thermally pre-stressed front glass with a black anodized aluminum frame and composite-film back cover. Its permitted continuous operating temperature range is -40°F to 185°F.

The datasheet distinguishes between design loads and test loads. Maximum listed design loads are 3,600Pa push and 2,660Pa pull, while maximum test loads are 5,400Pa push and 4,000Pa pull. Approved mounting requirements apply.

25-Year Warranty Coverage

Qcells provides a 25-year product warranty and a separate 25-year linear performance warranty, subject to the applicable manufacturer terms.

The published performance warranty specifies at least 98% of nominal power during the first year, followed by no more than 0.5% annual degradation. Guaranteed output is at least 93.5% at year 10 and 86% at year 25.

Product Specifications

Specification	Details
Manufacturer	Qcells
Manufacturer Part Number	Q.PEAK DUO BLK ML-G10.C+ 410
Rated Power	410W at STC
Minimum Module Efficiency	20.9%
Cell Technology	Monocrystalline Mono PERC, Q.ANTUM
Cell Configuration	132 half-cells, 6 × 22 layout
Technology	Q.ANTUM DUO Z, zero-gap cell layout
Domestic Content	Includes U.S.-manufactured junction box, encapsulant, and backsheet
Power Tolerance	0 to +5W
Maximum Power Voltage (Vmp, STC)	37.64V
Maximum Power Current (Imp, STC)	10.89A
Open-Circuit Voltage (Voc, STC)	45.37V
Short-Circuit Current (Isc, STC)	11.20A
Power at NMOT	307.6W
Maximum Power Voltage at NMOT	35.68V
Maximum Power Current at NMOT	8.62A
Open-Circuit Voltage at NMOT	42.79V
Short-Circuit Current at NMOT	9.03A
Maximum System Voltage	1,000V DC, IEC / UL
Maximum Series Fuse Rating	20A
Dimensions (L × W × H)	1879 × 1045 × 32mm / 74.0 × 41.1 × 1.26 in
Weight	22.0kg / 48.5 lb
Front Cover	3.2mm thermally pre-stressed glass with anti-reflection technology
Back Cover	Black composite-film backsheet
Frame	Black anodized aluminum
Junction Box	IP67, with bypass diodes
Cable Cross-Section	4mm²
Cable Lengths	Positive and negative leads each at least 1830mm / 72.04 in
Connectors	Stäubli MC4, IP68
Permitted Module Temperature	-40°C to 85°C / -40°F to 185°F
Nominal Module Operating Temperature	43 ±3°C
Power Temperature Coefficient	-0.34%/°C
Voc Temperature Coefficient	-0.27%/°C
Isc Temperature Coefficient	+0.04%/°C
Maximum Design Load, Push / Pull	3,600Pa / 2,660Pa, subject to approved mounting configuration
Maximum Test Load, Push / Pull	5,400Pa / 4,000Pa, subject to approved mounting configuration
Fire Rating	Type 2, based on ANSI / UL 61730
PV Module Classification	Class II
Listed Standards	UL 61730-1, UL 61730-2, IEC 61215:2016, IEC 61730:2016
Product Warranty	25 years, subject to manufacturer terms
Linear Performance Warranty	25 years, subject to manufacturer terms
Published Year-25 Output Guarantee	At least 86% of nominal power, subject to warranty terms
Manufacturer Packing Quantity	32 panels per pallet; listing purchase quantity applies
Previous Supplier SKU	HQC-410MLQPG10-BK

Mounting and Equipment Compatibility

Select racking that accommodates the module’s dimensions, 32mm frame, approved clamp locations, and site-specific structural loads.

String inverters, microinverters, optimizers, and charge controllers must support the panel’s electrical characteristics. Confirm cold-weather string voltage, MPPT operating range, current limits, and the permitted number of connected modules.

This listing is for the solar panel. Racking, inverters, batteries, extension cables, and other installation materials are sold separately. Manufacturer pallet quantity describes packing configuration and does not change the quantity selected when ordering.

Frequently Asked Questions

Does this specific panel include domestic content?

Yes. This product includes U.S.-manufactured junction box, encapsulant, and backsheet components.

Does domestic content mean the entire panel is made in the USA?

The domestic-content statement identifies the U.S.-manufactured junction box, encapsulant, and backsheet. It does not establish that every component or the complete module is manufactured in the United States.

Does purchasing this panel guarantee a domestic-content incentive?

No. Project eligibility depends on the complete installation and applicable requirements. Confirm the manufacturer documentation and review your project with a qualified tax professional.

What is the efficiency of the 410W model?

The datasheet lists a minimum module efficiency of 20.9% for the 410W model. The series maximum of 21.1% applies to the 415W model.

Is this an all-black solar panel?

Yes. This product features a black frame and black backsheet for an all-black rooftop appearance.

Is this panel bifacial or dual glass?

No. This model uses front glass and a composite-film backsheet. It is not a bifacial or dual-glass module.

What does Q.ANTUM DUO Z mean?

Q.ANTUM DUO Z combines Qcells’ half-cell technology with a zero-gap cell layout to increase the active cell area within the module.

Can I use this panel with a microinverter?

Potentially, depending on the microinverter. Compare its input voltage range, maximum voltage, operating current, and short-circuit current limits with the panel specifications, including temperature adjustments.

Can this panel be used in an off-grid system?

Yes, with a compatible charge controller or inverter and an appropriately designed system. Confirm the permitted string configuration and equipment limits before installation.

What warranty comes with the panel?

Qcells provides a 25-year product warranty and a 25-year linear performance warranty. The published performance guarantee specifies at least 86% of nominal power at year 25, subject to manufacturer terms.

Is this listing automatically for a full pallet?

No. The manufacturer packing quantity is 32 panels per pallet. Your purchase quantity is determined by the product options and quantity selected when ordering.

Are mounting equipment and inverters included?

No. Racking, mounting hardware, inverters, batteries, and additional installation materials are sold separately.
