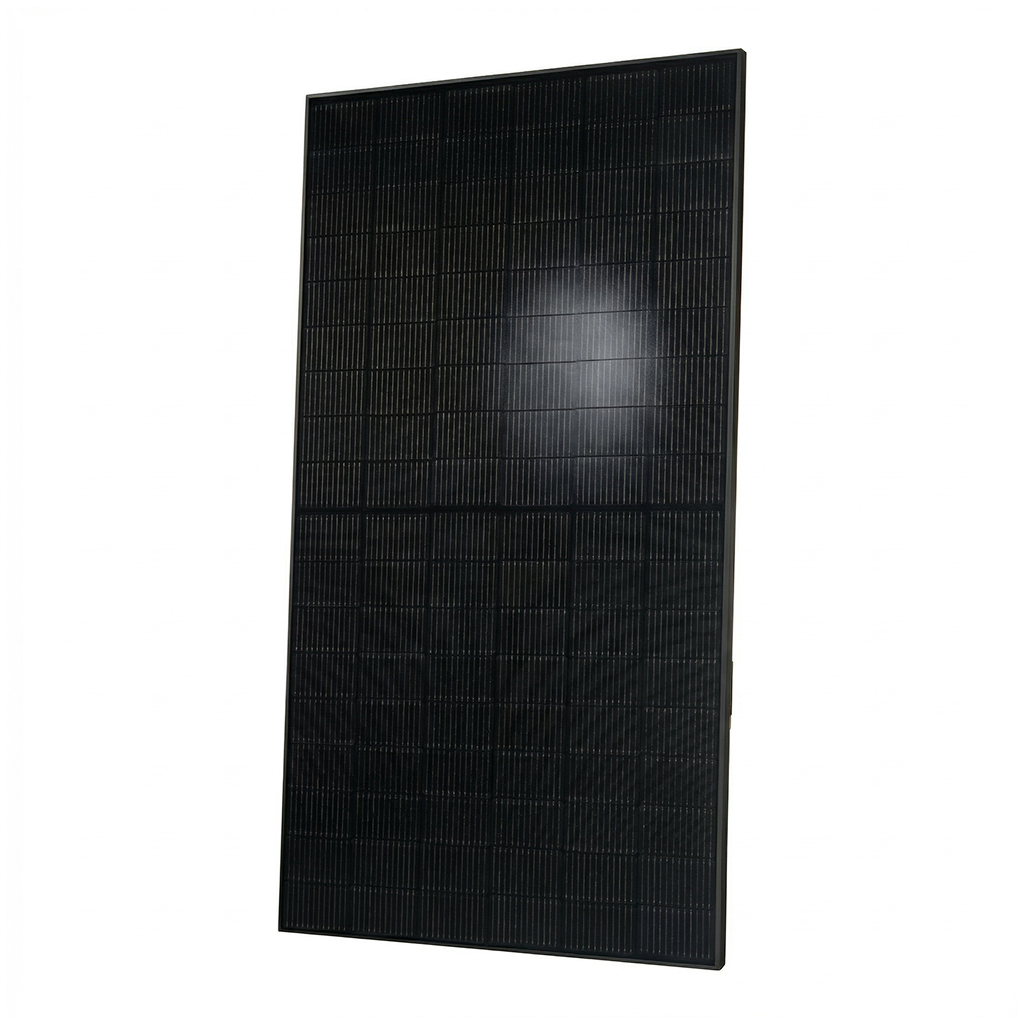

Qcells 430W Q.TRON All-Black N-Type Solar Panel Q.TRON BLK M-G2.H+ DCA Domestic Content
MPN No: Q.TRON BLK M-G2.H+ 430 DCA
Expected ship date Jun 11 - 18
In Stock
$327.99
Qcells 430W Q.TRON All-Black N-Type Solar Panel Q.TRON BLK M-G2.H+ DCA Domestic Content
Qcells 430W Q.TRON All-Black N-Type Solar Panel Q.TRON BLK M-G2.H+ DCA Domestic Content
Regular price
$327.99
$0.76/watt
8269 IN STOCK
Qcells 430W Q.TRON All-Black N-Type Solar Panel Q.TRON BLK M-G2.H+ DCA Domestic Content
Qcells 430W Q.TRON All-Black N-Type Solar Panel Q.TRON BLK M-G2.H+ DCA Domestic Content
Available
MPN No: Q.TRON BLK M-G2.H+ 430 DCA
Regular price
$327.99
$0.76/watt
Expected ship date Jun 11 - 18
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$327.99
Qcells 430W Q.TRON All-Black N-Type Solar Panel Q.TRON BLK M-G2.H+ DCA Domestic Content
MPN No:
Q.TRON BLK M-G2.H+ 430 DCA
Expected ship date Jun 11 - 18
≥ 8
Qcells 430W All-Black N-Type Solar Panel
Q.TRON BLK M-G2.H+ DCA – Made in USA / Domestic Content
Premium N-type performance. Sleek all-black design. Built with U.S. manufactured components.
The Qcells Q.TRON BLK M-G2.H+ 430W module combines next-generation N-type Q.ANTUM NEO technology with a Domestic Content option that may contribute toward the 10% domestic content bonus under the Inflation Reduction Act. With up to 22.0% efficiency at 430W, improved degradation rates, and superior all-weather performance, this panel is engineered for long-term residential ROI.
Key Benefits
Advanced N-Type Q.ANTUM NEO Cells
Improved efficiency, stronger long-term performance, and better temperature behavior compared to traditional P-type modules.
Domestic Content Option (DCA)
Contains U.S. manufactured components that may contribute toward qualifying for IRA domestic content incentives (consult a qualified tax professional).
High Efficiency Output
Up to 22.5% efficiency across the series — 22.0% at the 430W rating.
Superior Degradation Profile
-
≥98.5% output in year 1
-
Maximum 0.33% annual degradation
-
≥90.58% output at year 25
Extreme Weather Rated
-
8100 Pa snow load (169 lbs/ft² test load)
-
3600 Pa wind load (75 lbs/ft² test load)
All-Black Aesthetic
Black frame and backsheet for premium curb appeal on residential rooftops.
Best Uses
-
Residential rooftop arrays
-
High-efficiency systems with limited roof space
-
IRA-driven projects seeking domestic content qualification
-
Installations in high snow or harsh-weather climates
Electrical Specifications (430W Model)
Standard Test Conditions (STC)
| Specification | Value |
|---|---|
| Rated Power (Pmax) | 430 W |
| Module Efficiency | ≥ 22.0% |
| Open Circuit Voltage (Voc) | 39.32 V |
| Short Circuit Current (Isc) | 13.74 A |
| Voltage at MPP (Vmp) | 32.94 V |
| Current at MPP (Imp) | 13.05 A |
| Power Tolerance | +5W / –0W |
Normal Operating Conditions (NMOT)
| Specification | Value |
|---|---|
| Power at MPP | 325.0 W |
| Open Circuit Voltage | 37.31 V |
| Short Circuit Current | 11.07 A |
| Voltage at MPP | 31.65 V |
| Current at MPP | 10.27 A |
Mechanical Specifications
| Specification | Value |
|---|---|
| Dimensions | 67.8 in × 44.6 in × 1.18 in |
| Metric Dimensions | 1722 mm × 1134 mm × 30 mm |
| Weight | 46.7 lbs (21.2 kg) |
| Cell Type | 108 Monocrystalline Q.ANTUM NEO Half Cells |
| Front Glass | 3.2 mm tempered, anti-reflective |
| Frame | Black anodized aluminum |
| Backsheet | Composite film |
| Junction Box | IP67 rated with bypass diodes |
| Connector | Stäubli MC4 (IP68) |
| Cable Length | ≥ 68.9 in (1750 mm) |
System Design Specifications
| Specification | Value |
|---|---|
| Maximum System Voltage | 1000V (IEC/UL) |
| Max Series Fuse Rating | 25 A |
| Fire Rating | ANSI/UL 61730 Type 2 |
| Operating Temperature | -40°F to +185°F |
| Max Design Load (Push/Pull) | 113 / 50 lbs/ft² |
| Max Test Load (Push/Pull) | 169 / 75 lbs/ft² |
| PV Module Classification | Class II |
Temperature Coefficients
| Specification | Value |
|---|---|
| Temp Coefficient of Pmax | -0.30 %/°C |
| Temp Coefficient of Voc | -0.24 %/°C |
| Temp Coefficient of Isc | +0.04 %/°C |
| NMOT | 109°F ± 5.4°F (43°C ± 3°C) |
Lower temperature coefficients help maintain performance in hot climates.
Warranty
-
25-Year Product Warranty
-
25-Year Linear Performance Warranty
Why Choose Q.TRON N-Type?
Compared to conventional P-type panels, N-type modules provide:
-
Lower long-term degradation
-
Stronger 25-year output retention
-
Improved low-light performance
-
Better performance in high temperatures
Need help with string sizing or inverter compatibility? Contact our PowerPlan Solar Design team to ensure your system is optimized from day one.
