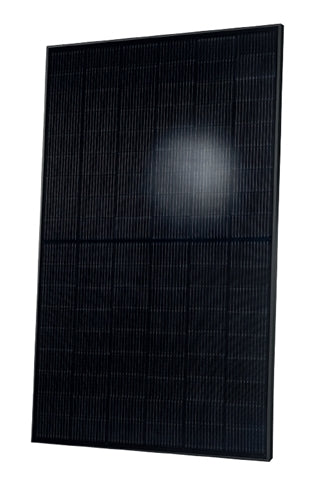

Qcells 430W All-Black N-Type Solar Panel
Q.TRON BLK M-G2.H+ DCA – Made in USA / Domestic Content
Premium N-type performance. Sleek all-black design. Built with U.S. manufactured components.
The Qcells Q.TRON BLK M-G2.H+ 430W module combines next-generation N-type Q.ANTUM NEO technology with a Domestic Content option that may contribute toward the 10% domestic content bonus under the Inflation Reduction Act. With up to 22.0% efficiency at 430W, improved degradation rates, and superior all-weather performance, this panel is engineered for long-term residential ROI.
Key Benefits
Advanced N-Type Q.ANTUM NEO Cells
Improved efficiency, stronger long-term performance, and better temperature behavior compared to traditional P-type modules.
Domestic Content Option (DCA)
Contains U.S. manufactured components that may contribute toward qualifying for IRA domestic content incentives (consult a qualified tax professional).
High Efficiency Output
Up to 22.5% efficiency across the series — 22.0% at the 430W rating.
Superior Degradation Profile
-
≥98.5% output in year 1
-
Maximum 0.33% annual degradation
-
≥90.58% output at year 25
Extreme Weather Rated
-
8100 Pa snow load (169 lbs/ft² test load)
-
3600 Pa wind load (75 lbs/ft² test load)
All-Black Aesthetic
Black frame and backsheet for premium curb appeal on residential rooftops.
Best Uses
-
Residential rooftop arrays
-
High-efficiency systems with limited roof space
-
IRA-driven projects seeking domestic content qualification
-
Installations in high snow or harsh-weather climates
Electrical Specifications (430W Model)
Standard Test Conditions (STC)
| Specification | Value |
|---|---|
| Rated Power (Pmax) | 430 W |
| Module Efficiency | ≥ 22.0% |
| Open Circuit Voltage (Voc) | 39.32 V |
| Short Circuit Current (Isc) | 13.74 A |
| Voltage at MPP (Vmp) | 32.94 V |
| Current at MPP (Imp) | 13.05 A |
| Power Tolerance | +5W / –0W |
Normal Operating Conditions (NMOT)
| Specification | Value |
|---|---|
| Power at MPP | 325.0 W |
| Open Circuit Voltage | 37.31 V |
| Short Circuit Current | 11.07 A |
| Voltage at MPP | 31.65 V |
| Current at MPP | 10.27 A |
Mechanical Specifications
| Specification | Value |
|---|---|
| Dimensions | 67.8 in × 44.6 in × 1.18 in |
| Metric Dimensions | 1722 mm × 1134 mm × 30 mm |
| Weight | 46.7 lbs (21.2 kg) |
| Cell Type | 108 Monocrystalline Q.ANTUM NEO Half Cells |
| Front Glass | 3.2 mm tempered, anti-reflective |
| Frame | Black anodized aluminum |
| Backsheet | Composite film |
| Junction Box | IP67 rated with bypass diodes |
| Connector | Stäubli MC4 (IP68) |
| Cable Length | ≥ 68.9 in (1750 mm) |
System Design Specifications
| Specification | Value |
|---|---|
| Maximum System Voltage | 1000V (IEC/UL) |
| Max Series Fuse Rating | 25 A |
| Fire Rating | ANSI/UL 61730 Type 2 |
| Operating Temperature | -40°F to +185°F |
| Max Design Load (Push/Pull) | 113 / 50 lbs/ft² |
| Max Test Load (Push/Pull) | 169 / 75 lbs/ft² |
| PV Module Classification | Class II |
Temperature Coefficients
| Specification | Value |
|---|---|
| Temp Coefficient of Pmax | -0.30 %/°C |
| Temp Coefficient of Voc | -0.24 %/°C |
| Temp Coefficient of Isc | +0.04 %/°C |
| NMOT | 109°F ± 5.4°F (43°C ± 3°C) |
Lower temperature coefficients help maintain performance in hot climates.
Warranty
-
25-Year Product Warranty
-
25-Year Linear Performance Warranty
Why Choose Q.TRON N-Type?
Compared to conventional P-type panels, N-type modules provide:
-
Lower long-term degradation
-
Stronger 25-year output retention
-
Improved low-light performance
-
Better performance in high temperatures
Need help with string sizing or inverter compatibility? Contact our PowerPlan Solar Design team to ensure your system is optimized from day one.
