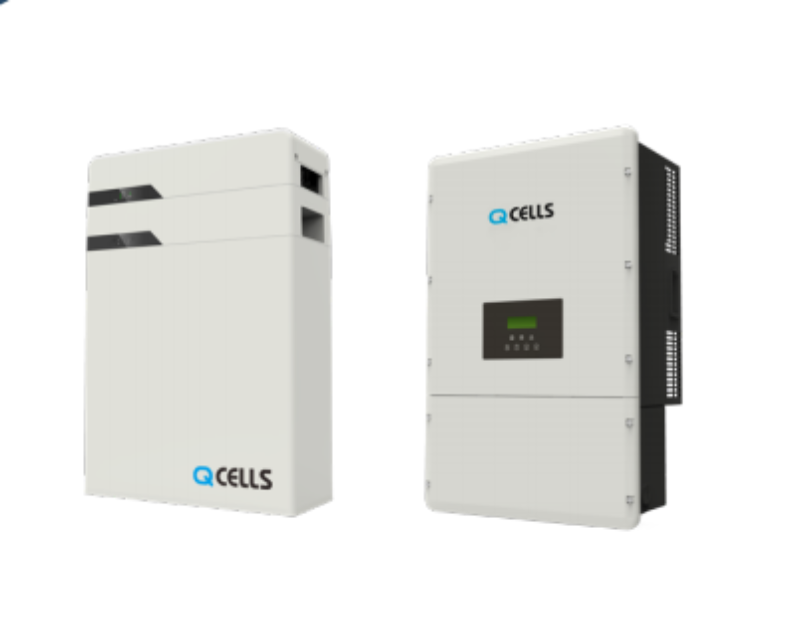

Qcells Q.HOME+ ESS HYBG1 7.6 / 12.6 Hybrid Energy Storage System
MPN No: Q.HOME+ ESS HYBG1 7.6 / 12.6
Expected ship date Jun 08 - 15
In Stock
6,433.44
-6%
$6,022.89
Sale
Qcells Q.HOME+ ESS HYBG1 7.6 / 12.6 Hybrid Energy Storage System
Qcells Q.HOME+ ESS HYBG1 7.6 / 12.6 Hybrid Energy Storage System
Regular price
$6,433.44
-6%
$6,022.89
6% OFF
LESS THAN 50
Sale
Qcells Q.HOME+ ESS HYBG1 7.6 / 12.6 Hybrid Energy Storage System
Qcells Q.HOME+ ESS HYBG1 7.6 / 12.6 Hybrid Energy Storage System
Available
MPN No: Q.HOME+ ESS HYBG1 7.6 / 12.6
Regular price
$6,433.44
-6%
$6,022.89
Expected ship date Jun 08 - 15
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$6,433.44
-6%
$6,022.89
Qcells Q.HOME+ ESS HYBG1 7.6 / 12.6 Hybrid Energy Storage System
MPN No:
Q.HOME+ ESS HYBG1 7.6 / 12.6
Expected ship date Jun 08 - 15
Sale
Q.HOME+ ESS HYBG1 7.6 / 12.6 – Hybrid Energy Storage System
Key Features
- Scalable Storage Capacity: Expandable from 4.5 kWh to 18.9 kWh, meeting various energy needs.
- Integrated Backup Power: Provides 100% of the rated inverter output to support critical loads during power outages.
- Smart Energy Management: Built-in remote monitoring via web and mobile applications for real-time system tracking.
- High Efficiency: Achieves up to 98.24% PV-to-battery efficiency and 96.46% battery-to-AC efficiency.
- Fast Switchover to Backup Mode: Transfers to backup power in less than 200ms, ensuring uninterrupted operation.
- Durable & Safe Design: Premium lithium-ion battery, 90% Depth of Discharge (DoD), and 10-year product warranty.
- Seamless PV Integration: Supports PV charging during backup operation for extended energy availability.
- Compact & Easy Installation: Wall-mounted, lightweight, and modular design for effortless expansion and maintenance.
Best Applications
- Residential Solar Energy Storage – Perfect for homeowners looking to store excess solar energy for later use.
- Backup Power Solution – Ideal for areas prone to power outages, ensuring continuous energy supply.
- Energy Cost Savings – Allows self-consumption optimization and time-of-use (TOU) savings.
Special Technology
The Q.HOME+ ESS HYB-G1 features a modular lithium-ion battery system, allowing homeowners to scale their energy storage capacity as needed. With remote monitoring and early error detection, this system ensures optimal performance and easy maintenance. Its integrated energy management system (EMS) intelligently manages solar production, battery storage, and grid interaction for maximum efficiency.
About Qcells
Qcells is a leading global provider of high-performance solar energy solutions, known for its innovative and reliable solar panels, inverters, and storage systems. Committed to sustainability and advanced technology, Qcells ensures long-term energy independence and savings for homeowners.
Specifications
| Parameter | 7.6 kW Model | 12.6 kW Model |
|---|---|---|
| Hybrid Inverter Output Power | 7.6 kW | 12.6 kW |
| Max. PV Input Power | 9.12 kW | 10.32 kW |
| Max. Battery Capacity | 13.5 kWh | 18.9 kWh |
| Battery Type | Lithium-Ion (NMC) | Lithium-Ion (NMC) |
| Depth of Discharge (DoD) | 90% | 90% |
| Max. Efficiency (PV to AC) | 96.7% | 96.7% |
| Max. Efficiency (PV to Battery) | 98.24% | 98.24% |
| Switchover Time (Backup Mode) | < 200ms | < 200ms |
| Rated AC Voltage | 120/240V Split-Phase | 120/240V Split-Phase |
| Operating Temperature Range | 32°F to 113°F (0°C to 45°C) | 32°F to 113°F (0°C to 45°C) |
| Enclosure Rating | NEMA 4X (Outdoor Rated) | NEMA 4X (Outdoor Rated) |
| Weight (Inverter + Battery) | 130 lbs (58.9 kg) + 124.8 lbs (56.6 kg) | 130 lbs (58.9 kg) + 148.4 lbs (67.5 kg) |
| Dimensions (Inverter L × W × D) | 36 × 22 × 10.9 in (913 × 560 × 276 mm) | 36 × 22 × 10.9 in (913 × 560 × 276 mm) |
| Dimensions (Battery L × W × D) | 18.3 × 7.6 × 23.1 in (464 × 193 × 588 mm) | 18.3 × 7.6 × 23.1 in (464 × 193 × 588 mm) |
| Communication | RS485, LAN, Wi-Fi, 4G (Optional) | RS485, LAN, Wi-Fi, 4G (Optional) |
| Warranty | 10 Years | 10 Years |
