Pallet

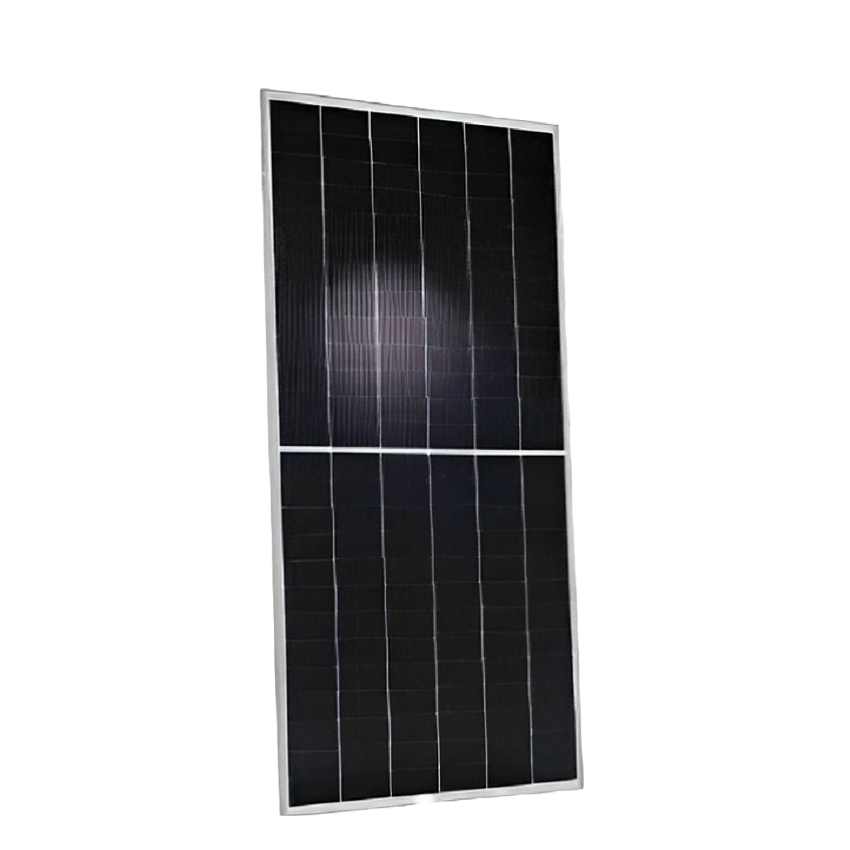

Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel

Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel

$238
$0.40 / watt
-% $238
$0.40 / watt
SOLD OUT
Leave a Review
Q CELLS
Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel
Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel
Pallet

Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel

Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel

Q CELLS
MPN No: Q.PEAK DUO XL-G11S 590W
Out Of Stock
$238
$0.40 / watt
-% $238
$0.40 / watt

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Contact us for Delivery Date

Payment

We offer multiple secure payment options for your convenience

All Q CELLS products All Solar Modules products

View full details
$238
$0.40 / watt
-% $238
$0.40 / watt
Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel

Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel

Pallet

Hanwha QCELLS Q.PEAK DUO XL-G11S 590W Solar Panel

MPN No:

Q.PEAK DUO XL-G11S 590W

Out Of Stock
Contact us for Delivery Date
$238
$0.40 / watt
-% $238
$0.40 / watt
Sold out

Specifications

.PDF
Datasheet
Wattage
590 W
Number of Cells
156
Open-Circuit Voltage (VOC)
53.6 V
.PDF
Datasheet

Hanwha QCELLS Q.PEAK DUO XL-G11S 590W

580-595 Wp | 156 Cells

21.3 % Maximum Module Efficiency

Frame: Annodized Aluminum

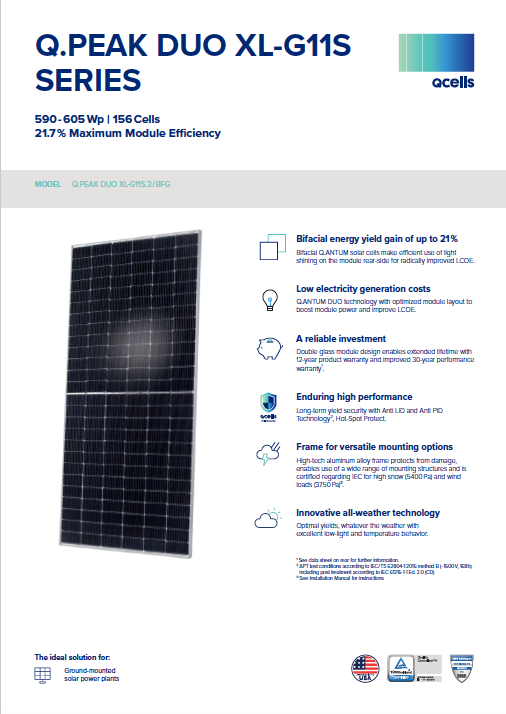

Product Spec Sheet

Introducing the Hanwha 590W Bifacial Solar Panel QCELLS Q.PEAK DUO XL-G11S, a cutting-edge solution for efficient solar energy generation. This high-performance solar panel is designed to provide exceptional power output and reliability.

Graph with increasing bars  Enhanced Efficiency and Performance

  • Bifacial energy yield gain of up to 21%: Bifacial Q.ANTUM solar cells with zero gap cell layout make efficient use of light shining on the module rear-side for radically improved LCOE.
  • Low electricity generation costs: Q.ANTUM DUO technology with optimized module layout to boost module power and improve LCOE.

Special Features

  • Bifacial technology for increased energy yield
  • High power output of 580W
  • Durable and weather-resistant design
  • Optimized for maximum efficiency
  • Compatible with various mounting systems

Badge with a check showing quality  Unmatched Quality and Durability

      • Pioneering Quality Standards: Hanwha QCELLS leads the industry as the first to exceed the stringent “Quality Controlled PV” standards by TÜV Rheinland, offering unparalleled reliability and longevity.
      • Frame for versatile mounting options: High-tech aluminum alloy frame protects from damage, enables use of a wide range of mounting structures and is certified regarding IEC for high snow (5400 Pa) and wind loads (2400 Pa).

  A box with warranty in it saying 25 years  Comprehensive Warranty and Protection

      • Advanced Protective Technologies: Long-term yield security with Anti LeTID Technology, Anti PID Technology2, Hot-Spot Protect.
      • Performance Guarantee:  Double glass module design enables extended lifetime with 12 year product warranty and improved 30-year performance
        warranty.
        .

Product Specifications:

Product MPN Q.PEAK DUO XL-G11S 590W
Manufacturer Hanwha QCELLS
Wattage 590 W
Outer Dimensions (Include Pallet) 96.9 in × 44.6 in × 1.38 in (including frame)
(2462 mm × 1134 mm × 35 mm)
Approx. gross weight (full box) 1082 kg (2384 lbs)
Linear Performance Warranty 84.95% of Nominal Power up to 30 Years
Product Warranty 12 Years
Efficiency % 21.3%
Cell Type Monocrystalline
Frame color (black, silver, etc.) Anodised aluminium
Brand  Hanwha Q CELLS
Application  Residential, Commercial, Industrial
Certification  UL 61730, CE-compliant, IEC 61215:2016, IEC 61730:2016
Open Circuit Voltage Voc(V) 53.60 V
Short Circuit Current Isc(Amp) 13.74 A
Maximum Power Voltage Vmp(V) 44.96 V
Maximum Power Current Imp(A) 13.12 A
Maximum System Voltage VDC (IEC/UL) 1500
Temperature coefficient of Power Pmax %/°C -0.34%/°C
Temperature coefficient of Voc %/°C -0.27%/°C
Temperature coefficient of Current Isc %/°C +0.04%/°C
Normal Module Operating Temperature (NMOT) °C 43°C ± (3°C)
Output Cable [mm²-(IEC) / 12AWG (UL)] 4 mm² Solar cable
Cable Length (+) ≥ 29.5 in (750 mm), (−) ≥ 13.8 in (350 mm)
Connector Type Stäubli MC4; Stäubli MC4-Evo2; - IP68
Piece per Pallet 31


Installation and Compatibility

The installation process is streamlined, and the Q.PEAK DUO XL-G11S is compatible with various solar energy systems. Whether for residential or commercial use, this solar panel seamlessly integrates into different setups, providing flexibility and ease of installation. It is ideal for ground mounted solar plants.



FAQ

Shipping costs at US Solar Supplier are calculated based on the weight and dimensions of the product(s) in your order. The company utilizes FedEx or UPS for ground shipments and trusted freight carriers for larger shipments. All shipments are insured for customer protection.
For standard delivery, most orders will arrive at their destination within 7 to 10 business days. Please note that these estimates can change depending on the carrier's operational capabilities and other uncontrollable factors.
It is essential to meticulously inspect your shipment upon delivery. If any damage or issues are found, note them on the Bill of Lading (BOL) or the delivery receipt. Major visible damage should result in the rejection of the delivery. Any damages must be reported to US Solar Supplier by email within 24 hours of delivery, including the signed BOL and any supporting documents or photos.
US Solar Supplier offers only the best Tier 1 product offerings and high-quality solar equipment. You can design your solar project using the solar design tool, tailored to fit your needs. If you have specific preferences or deadlines, include this information in the order notes or contact the sales department before placing your order. US Solar Supplier is committed to empowering you with the tools and support needed to ensure your project's success.
US Solar Supplier offers a range of finance solutions through its partners, including Power Purchase Agreements, Leases, and Loans. Additionally, their consultative approach can help you take advantage of PACE financing for commercial projects. The team at US Solar Supplier is ready to assist in finding the right finance solution to make your solar project a reality.
