Pytes R-BOX-IP65 Outdoor Battery Cabinet R-BOX-OC
R-BOX-OC

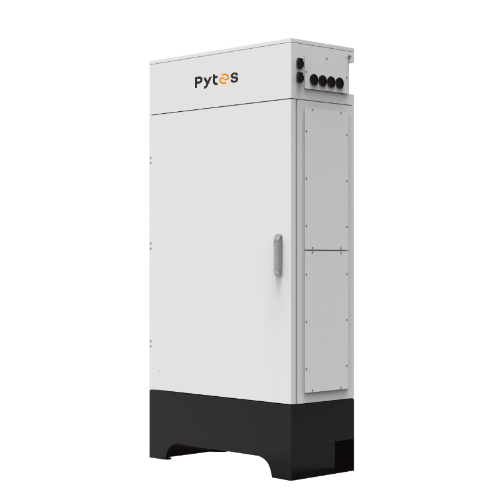

Pytes R-BOX-IP65 Outdoor Battery Cabinet – R-BOX-OC
The Pytes R-BOX-IP65 (Model R-BOX-OC) is a high-performance outdoor battery storage system offering 10.24kWh of total energy capacity and 9.22kWh usable capacity. Engineered with lithium iron phosphate (LFP) chemistry and rated IP65 for outdoor use, this cabinet ensures safe and efficient energy storage for home backup, off-grid applications, and smart energy systems.
The sleek, compact design allows for wall or floor mounting and supports up to 3 units in parallel without the need for an expansion kit.
Key Benefits
10.24kWh Total Capacity: Reliable power for home backup and solar energy storage.
Outdoor Ready: IP65-rated enclosure protects against dust, rain, and harsh environments.
Expandable System: Link up to 3 cabinets in parallel with no extra hardware.
Wall or Floor Mount: Flexible mounting options for space-saving installation.
Smart Communication: Built-in CAN and RS485 for seamless integration with inverters and energy systems.
Special Technology
Lithium Iron Phosphate (LFP): Safe, stable chemistry with long cycle life and thermal stability.
Natural Convection Cooling: Passive cooling system ensures silent, maintenance-free operation.
Intelligent Monitoring: Compatible with most hybrid inverter protocols via RS485 and CAN ports.
Rugged Construction: Cold-rolled steel body with powder coating for outdoor durability.
Modular Configuration: Scalable up to 3 units, reaching over 27kWh usable capacity.
Warranty
The Pytes R-BOX-IP65 is backed by a 10-year or 6000-cycle limited warranty, ensuring long-term reliability and peace of mind.
Best Use
Home Backup Power: Stores solar or grid energy for emergency or daily use.
Off-Grid Applications: Provides reliable DC storage for remote homes and cabins.
Smart Energy Systems: Integrates easily with modern smart home setups.
Outdoor Installations: Built for weather-exposed areas where indoor space is limited.
Specifications Table
| Specification | Value |
|---|---|
| Model Number | R-BOX-OC (R-BOX-IP65) |
| Total Capacity | 10.24 kWh |
| Usable Capacity | 9.22 kWh |
| Chemistry | Lithium Iron Phosphate (LFP) |
| Nominal Voltage | 51.2 V |
| Max Charge/Discharge Current | 100 A |
| Communication Interfaces | CAN, RS485 |
| Mounting | Wall or Floor Mount |
| Enclosure Rating | IP65 |
| Enclosure Material | Cold-Rolled Steel |
| Cooling Method | Natural Convection |
| Certifications | UL1973, CE, UN38.3 |
| Operating Temperature | Charge: 32–113°F | Discharge: 14–122°F |
| Altitude | < 6562 ft (2000 m) |
| Dimensions (W × D × H) | 12.2 × 20.9 × 29 in (33.7 in H with holder) |
| Weight | 264 lbs |
| Warranty | 10-Year or 6000-Cycle Limited Warranty |
About Pytes:
Pytes, founded in 2004 and headquartered in Shanghai, is a high‑tech battery specialist with over 1,000 employees and 1.82 GWh annual capacity. They design LiFePO₄ battery solutions for e‑bikes, e‑mobility, consumer electronics, and residential/commercial energy storage, boasting 6,000-cycle life and wide compatibility.
