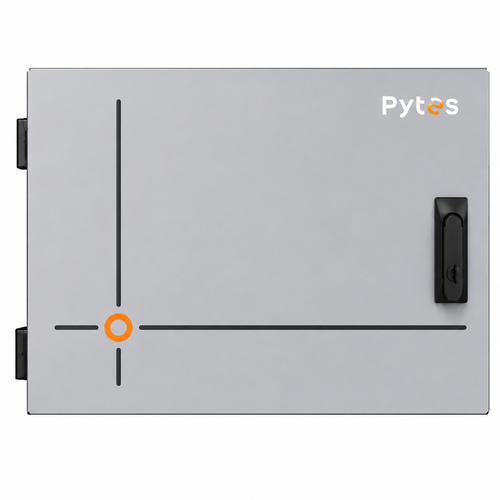

Pytes C-BOX SE Battery Combiner Box for Sol-Ark 18K
DC Battery Combiner Enclosure | Sol-Ark 18K-2P Compatibility | IP65 Protection | Steel Construction | Natural Cooling
The Pytes C-BOX SE SA-18K Battery Combiner Box is designed for battery-side electrical integration with the Sol-Ark 18K-2P Hybrid Inverter. It provides a dedicated enclosure for organizing DC battery connections as part of a compatible residential energy storage system.
Built with a cold-rolled steel housing, the Pytes combiner box offers a durable enclosure for energy storage installations. Its IP-rated construction helps protect enclosed components against dust and water exposure, while the naturally cooled design operates without powered ventilation.
For installers building solar-plus-storage systems around the Sol-Ark hybrid inverter platform, the C-BOX SE provides a purpose-designed enclosure for the battery interconnection portion of the installation.
Key Features and Benefits
- Sol-Ark Hybrid Inverter Compatibility: Specifically identified by Pytes for integration with the Sol-Ark 18K-2P Hybrid Inverter.
- Battery-Side DC Integration: Provides a dedicated combiner enclosure for compatible battery energy storage connections.
- IP65-Rated Enclosure: Offers dust-tight protection and resistance to water jets when properly installed and sealed.
- Cold-Rolled Steel Construction: Provides a rigid metal enclosure for electrical equipment.
- Natural Cooling: Uses passive cooling rather than powered fans.
- Organized Cable Entry: Features multiple side-entry positions for cable routing and electrical integration.
- Serviceable Cabinet Design: Hinged access door allows access to the enclosure interior.
- Purpose-Designed Configuration: Developed for compatible battery storage applications using the specified Sol-Ark inverter.
Designed for Sol-Ark Hybrid Energy Storage Systems
The Pytes C-BOX SE SA-18K is intended for applications using the Sol-Ark 18K-2P Hybrid Inverter with compatible battery storage equipment.
Battery combiner enclosures provide an organized location for battery-side electrical interconnections, helping installers arrange the DC connection portion of an energy storage system.
The required internal components, conductor sizing, battery compatibility, and protection arrangements must be confirmed against the complete Pytes installation documentation and the applicable Sol-Ark system requirements.
Durable Metal Enclosure with Environmental Protection
The C-BOX SE uses a cold-rolled steel sheet enclosure designed to house compatible electrical equipment.
Its IP65 protection rating indicates dust-tight construction and resistance to water jets when the enclosure is properly assembled and sealed.
The enclosure also features natural cooling, eliminating the need for an integrated powered cooling fan.
Accessible Cabinet and Cable Routing Design
The Pytes combiner box features a rectangular cabinet with a hinged front door and multiple cable-entry positions along the side of the enclosure.
The manufacturer's dimensional drawings illustrate the external cabinet, side-entry layout, and internal enclosure space. These features help installers plan equipment placement and cable routing within a compatible energy storage installation.
The supplied product sheet illustrates the cabinet interior but does not establish which electrical distribution or protective components are included with the purchased unit.
Applications
- Sol-Ark hybrid inverter energy storage installations
- Compatible residential solar battery systems
- Battery-side DC interconnection enclosures
- Solar-plus-storage electrical equipment organization
- Compatible Pytes battery integration projects
Product Specifications
| Specification | Details |
|---|---|
| General Specifications | |
| Manufacturer | Pytes |
| Product Name | C-BOX SE SA-18K Combiner Box |
| Listing MPN | C-BOX-SE — confirm exact manufacturer ordering code |
| Product Type | DC battery combiner enclosure |
| Compatible Inverter | Sol-Ark 18K-2P Hybrid Inverter |
| Rated DC Voltage | 40–60V DC |
| Number of Battery Inputs | Not specified in supplied datasheet |
| Maximum Continuous Current | Not specified in supplied datasheet |
| Included Electrical Protection | Not specified in supplied datasheet |
| Compatible Battery Models | Not specified in supplied datasheet |
| Mechanical Specifications | |
| Dimensions (W × H × D) | 668 × 450 × 272 mm |
| Dimensions (W × H × D), Approx. | 26.30 × 17.72 × 10.71 inches |
| Weight | 14.2 kg (31.3 lbs) |
| Enclosure Material | Cold-rolled steel sheet |
| Enclosure Protection Rating | IP65 |
| Cooling Method | Natural cooling |
| Environmental Specifications | |
| Operating Temperature Range | -35°C to 40°C (-31°F to 104°F) |
| Maximum Installation Altitude | 2,000 m (approximately 6,562 ft) |
Frequently Asked Questions
What is the Pytes C-BOX SE used for?
The Pytes C-BOX SE is a battery-side DC combiner enclosure intended for compatible energy storage installations using the Sol-Ark hybrid inverter identified by the manufacturer.
Is the Pytes C-BOX SE compatible with the Sol-Ark 18K?
Yes. The supplied Pytes product datasheet specifically identifies the Sol-Ark 18K-2P Hybrid Inverter as compatible.
Is this a solar panel combiner box?
No. This product is intended for the battery-side DC connection system, not for combining high-voltage solar PV strings.
Can this combiner box be installed outdoors?
The enclosure has an IP65 protection rating, providing resistance to dust and water jets. Outdoor installation suitability must also follow the manufacturer's mounting, sealing, environmental, and applicable electrical requirements.
Does the Pytes C-BOX SE include circuit breakers or busbars?
The supplied product sheet does not specify the included internal electrical components. Confirm the exact package contents and required protection hardware before ordering.
Which Pytes batteries work with this combiner box?
The supplied datasheet identifies the compatible inverter but does not list approved battery models. Confirm compatibility with Pytes for the intended battery system.
Does the combiner box require a cooling fan?
The manufacturer specifies natural cooling, so the enclosure does not rely on an integrated powered cooling fan.
Does the Pytes C-BOX SE include an inverter or batteries?
No inverter or battery is identified as part of this enclosure product. These are separate system components.
