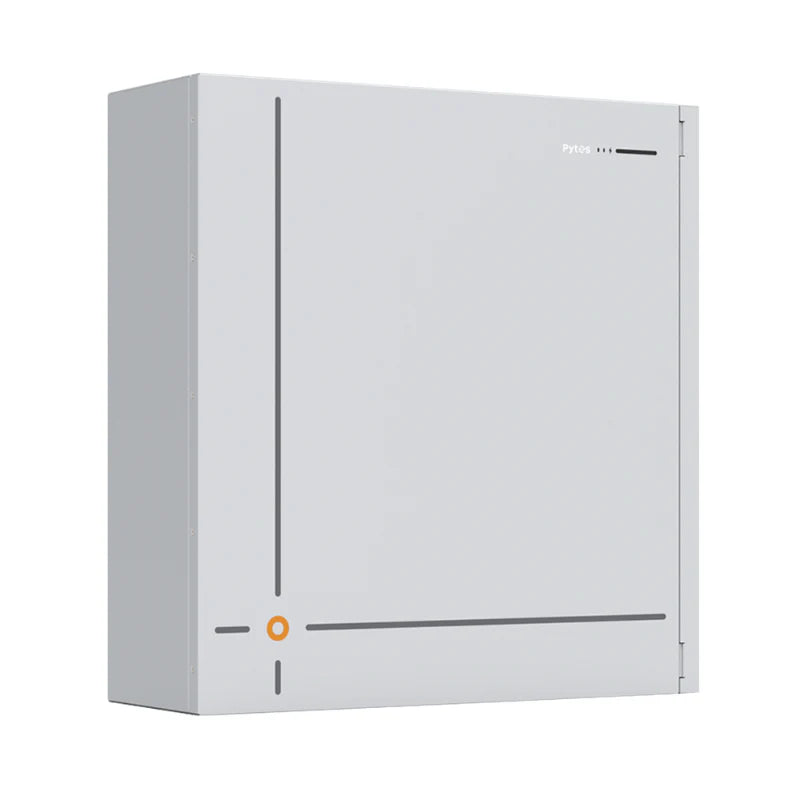

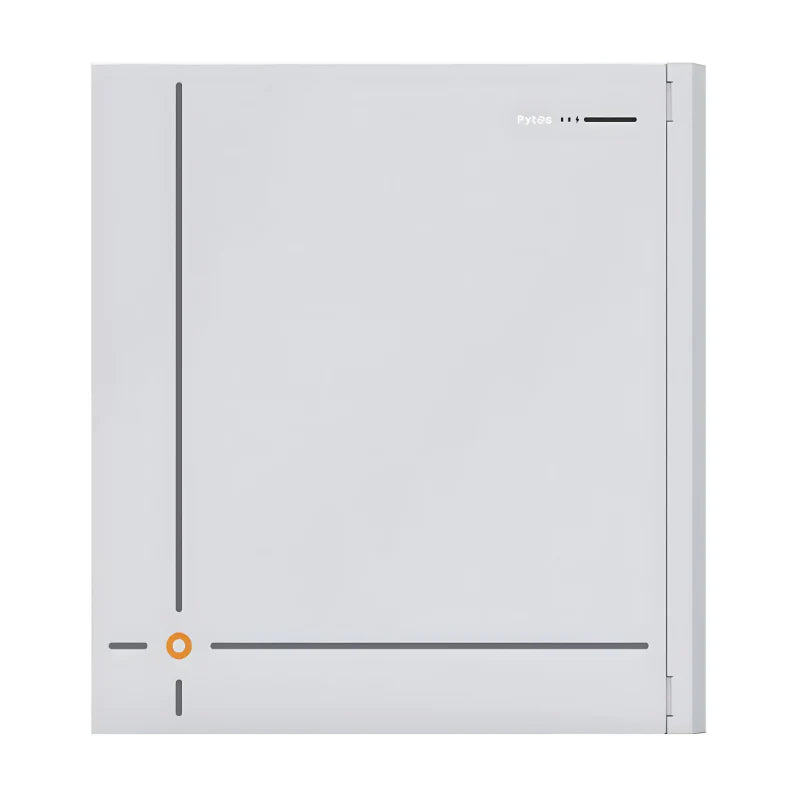

Pytes 16kWh V16 Wall-Mounted Outdoor LFP Battery 110402100209
MPN No: 110402100209
Expected ship date Sep 27 - Oct 04
In Stock
3,699.00
-8%
$3,399.00
Sale
Pytes 16kWh V16 Wall-Mounted Outdoor LFP Battery 110402100209
Pytes 16kWh V16 Wall-Mounted Outdoor LFP Battery 110402100209
Regular price
$3,699.00
-8%
$3,399
8% OFF
LESS THAN 50
Freight
Sale
Pytes 16kWh V16 Wall-Mounted Outdoor LFP Battery 110402100209
Pytes 16kWh V16 Wall-Mounted Outdoor LFP Battery 110402100209
Available
MPN No: 110402100209
Regular price
$3,699.00
-8%
$3,399
Freight Delivery Required
Expected ship date Sep 27 - Oct 04
Shipping calculated at checkout. About shipping
Due to its size and weight, this item ships secured on a pallet by freight truck.
The carrier will contact you to schedule delivery.
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$3,699.00
-8%
$3,399
Pytes 16kWh V16 Wall-Mounted Outdoor LFP Battery 110402100209
MPN No:
110402100209
Expected ship date Sep 27 - Oct 04
Sale
Pytes V16 16kWh Wall-Mounted Outdoor LFP Battery | 110402100209
16 kWh of reliable energy storage in one outdoor-rated battery. The Pytes V16 is a 51.2V lithium iron phosphate battery designed for residential backup power, solar energy storage, off-grid systems, and light commercial applications.
Built with Tier 1 automotive-grade 314Ah cells, an IP66-rated enclosure, integrated self-heating, and built-in fire suppression, the V16 is engineered for dependable indoor or outdoor operation. It can also be expanded to 16 batteries and 256 kWh without requiring a Pytes Hub.
Key Technology
-
16 kWh LFP Battery
Provides 16 kWh of rated energy at 51.2V using 314Ah lithium iron phosphate cells. -
High-Power Performance
Supports 7.68 kW recommended continuous discharge, up to 10.24 kW maximum continuous charge or discharge, and 15.36 kW peak discharge for 15 seconds. -
Integrated Safety Systems
Includes an advanced BMS, built-in aerosol fire suppression, ESS emergency shutdown, circuit breaker, pre-charge circuit, and current limiter. -
Built for Outdoor Installation
The IP66-rated enclosure, C4-M corrosion resistance, and integrated heating film support operation in demanding outdoor environments. -
Flexible Wall or Ground Installation
Includes a wall-mounting bracket. Ground installation is also supported with the separately sold Pytes ground-mounting bracket. -
Scalable to 256 kWh
Connect up to 16 V16 batteries in parallel without requiring a Pytes Hub. -
Closed-Loop Inverter Communication
Supports CAN, RS485, RS232, dry contact, and Wi-Fi communication for compatible hybrid and off-grid inverters. -
10-Year Limited Warranty
Covered for 10 years or 8,000 cycles, whichever occurs first, subject to Pytes warranty terms.
What’s Included
- Pytes V16 Battery × 1
- Cover Plate × 1
- Conduit Entry Plate × 1
- Wall-Mounted Bracket × 1
- V16 Power Cable Set × 1
- Spare RJ45 Connectors × 2
- Cascading Communication Cable × 1
- Expansion Screws × 8
- Hexagon Cross-Slot Screws × 4
- Earthing Cable × 1

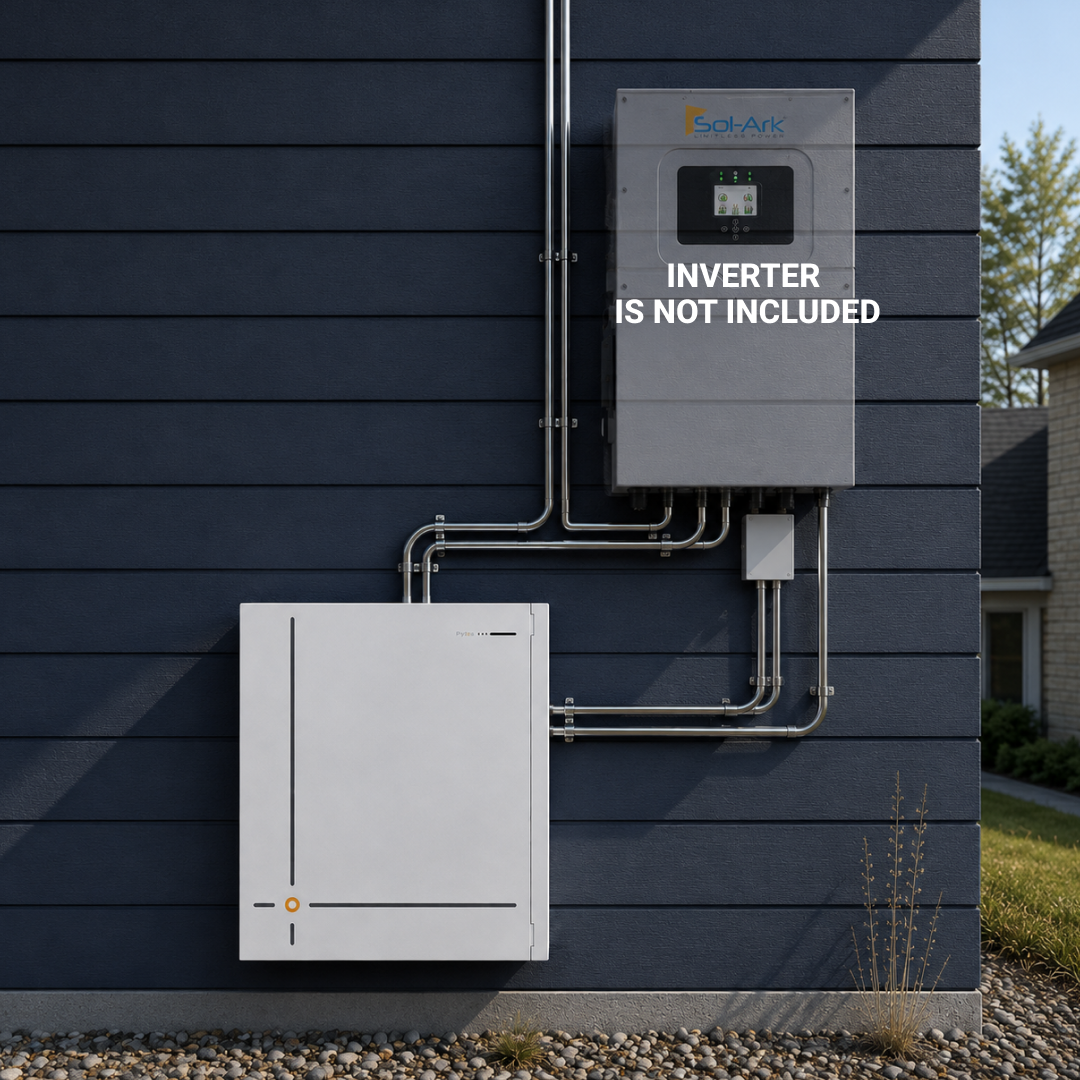

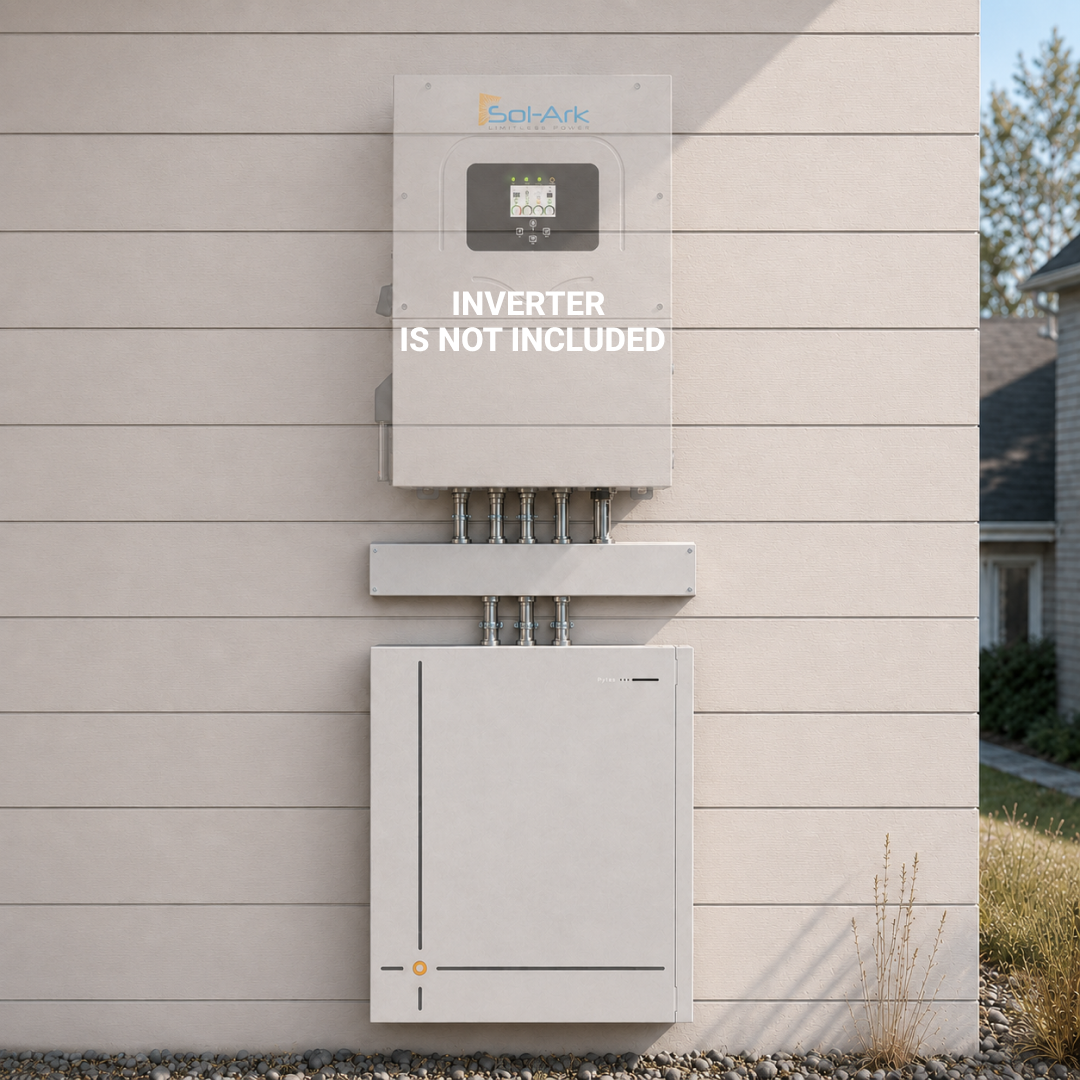

Please note: The inverter, ground-mounting bracket, conduit, and system-specific installation materials are not included.
Best Uses
- Whole-home and essential-load backup power
- Residential solar energy storage
- Hybrid and off-grid solar systems
- Time-of-use energy management
- Small commercial and light industrial storage
- Indoor, garage, basement, and outdoor installations
- Expandable residential and commercial battery systems
Installation Notes
- The V16 weighs 288 lb and should be installed by qualified professionals using appropriate lifting equipment.
- The included bracket is intended for wall-mounted installation. The wall and mounting surface must be able to support the battery according to Pytes installation requirements.
- Ground installation requires the separately sold Pytes ground-mounting bracket.
- Confirm inverter compatibility, communication settings, cable sizing, overcurrent protection, and system configuration before installation.
- Install according to the Pytes manual, applicable electrical codes, local permitting requirements, and authority-having-jurisdiction requirements.
- When multiple batteries are connected, follow Pytes requirements for parallel communication, cabling, addressing, and system commissioning.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pytes |
| Model | V16 |
| Manufacturer Part Number | 110402100209 |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 51.2V |
| Rated Capacity | 314Ah |
| Rated Energy | 16 kWh |
| Recommended Continuous Charge Current | 125A / 6.4 kW |
| Recommended Continuous Discharge Current | 150A / 7.68 kW |
| Maximum Continuous Charge / Discharge | 200A / 10.24 kW |
| Peak Discharge | 300A / 15.36 kW for 15 seconds |
| Dimensions | 27.10 × 10.24 × 27.56 in |
| Weight | 288 lb |
| Ingress Protection Rating | IP66 |
| Corrosion Resistance | C4-M |
| Mounting Options | Wall-mounted or ground-mounted |
| Included Mounting Hardware | Wall-mounted bracket |
| DC Terminal | Phoenix Contact plug-and-play DC connector |
| Communication | CAN, RS485, RS232, dry contact, and Wi-Fi |
| Maximum Parallel Batteries | 16 batteries / 256 kWh without a Pytes Hub |
| Cycle Life | 8,000 cycles under specified testing conditions |
| Warranty | 10 years or 8,000 cycles, whichever occurs first |
| Self-Heating Film | 500W |
| Heating Activation | Turns on at or below 41°F / 5°C and off at or above 59°F / 15°C |
| Charging Temperature | 32°F to 131°F / 0°C to 55°C |
| Discharging Temperature | -4°F to 131°F / -20°C to 55°C |
| Relative Humidity | 0% to 95%, non-condensing |
| Recommended Operating Altitude | Up to 9,843 ft / 3,000 m |
| Certifications | UL 9540 Ed. 3, UL 9540A, UL 9540B, UL 1973, and UN 38.3 |
| Listings | CEC, SGIP, and OGPe |
Frequently Asked Questions
Is the Pytes V16 a complete solar battery system? +
No. This listing includes the V16 battery and the accessories shown in the “What’s Included” section. A compatible inverter, system protection, conduit, and other installation materials are sold separately.
How much energy does one V16 battery store? +
One Pytes V16 provides 16 kWh of rated energy at 51.2V.
Can the Pytes V16 be installed outdoors? +
Yes. The V16 has an IP66-rated enclosure, C4-M corrosion resistance, and an integrated self-heating film. It must still be installed according to the Pytes manual and applicable location, clearance, and environmental requirements.
Is the wall-mounting bracket included? +
Yes. One wall-mounted bracket and the related mounting hardware shown in the packing list are included.
Can the V16 be installed on the ground? +
Yes, but ground installation requires the separately sold Pytes ground-mounting bracket. The included bracket is for wall mounting.
How many V16 batteries can be connected together? +
Up to 16 V16 batteries can be connected in parallel for a total rated capacity of 256 kWh without requiring a Pytes Hub.
Which inverters are compatible with the Pytes V16? +
The V16 supports closed-loop communication with compatible hybrid and off-grid inverters. Always confirm the exact inverter model against the latest Pytes compatibility list before ordering or installation.
Does the self-heating function work without an external power source? +
No. An external charging source, such as solar, grid power, or a generator, is required to operate the heating film when the battery is below its normal charging temperature.
What warranty is included? +
The V16 includes a 10-year or 8,000-cycle limited warranty, whichever occurs first, subject to Pytes installation, operating, and warranty requirements.
