PowerPlan Racking Design & Report

SKU: USSS-Racking-PowerPlan

Ready same or next business day when full details are provided.

Purchased your solar panels but not sure where to start with racking? The PowerPlan Racking Design & Report removes the guesswork by delivering a professionally engineered racking layout and itemized materials report tailored to your exact project conditions.

Whether you’re a DIY homeowner or an experienced installer, proper racking design is critical to system safety, code compliance, and long-term performance. This service ensures your mounting system is designed correctly the first time—before materials are ordered or installs begin.

Common Racking Pain Points We Solve

• Uncertainty around which racking system fits your roof or site

• Over- or under-ordering mounting hardware

• Incompatibility between panel size, roof type, and racking

• Wind, snow, or corrosion exposure not properly accounted for

• Failed inspections due to incomplete or incorrect mounting layouts

• DIY installs stalled by unclear attachment spacing or layout guidance

What’s Factored Into Your Racking Design

Every PowerPlan Racking Design & Report accounts for real-world variables, including:

• Roof type (shingle, metal seam, metal corrugated, flat roof, ground mount, etc.)

• Structural attachment spacing and layout

• Local environmental factors (wind exposure, snow load, corrosion zones)

• Solar panel dimensions, weight, and orientation

• Array size, row spacing, and module configuration

• Code-compliant mounting practices

Different projects require different racking solutions—there is no one-size-fits-all approach. This service ensures the racking system selected is appropriate for your specific use case, not a generic template.

What You’ll Receive

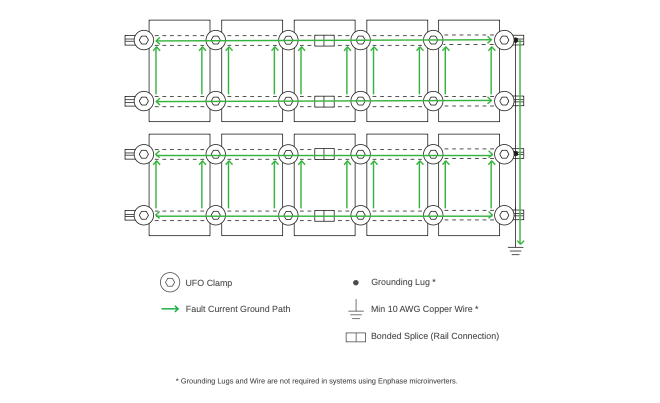

• A custom racking layout designed for your project

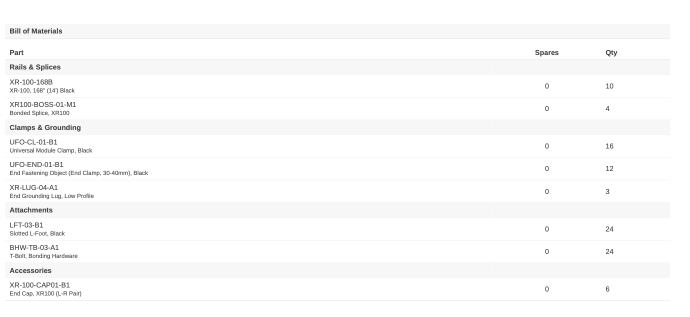

• An itemized racking bill of materials (BOM) with quantities

• A clear racking report you can use for planning, purchasing, and installation

• Design aligned with manufacturer best practices and typical AHJ expectations

Supported Racking Brands

We specialize in:

• IronRidge

• S-5!

• SunModo

Need a different racking manufacturer? Inquire before purchasing to confirm compatibility.

Best For

• DIY solar homeowners who want confidence before ordering racking

• Installers looking to streamline planning and reduce site errors

• Projects where roof type, environment, or panel size adds complexity

• Customers purchasing panels without an existing mounting plan

Important Notes

• This service covers racking design and reporting only

• Does not include structural engineering stamps unless otherwise specified

• Accurate site details are required to complete the design
