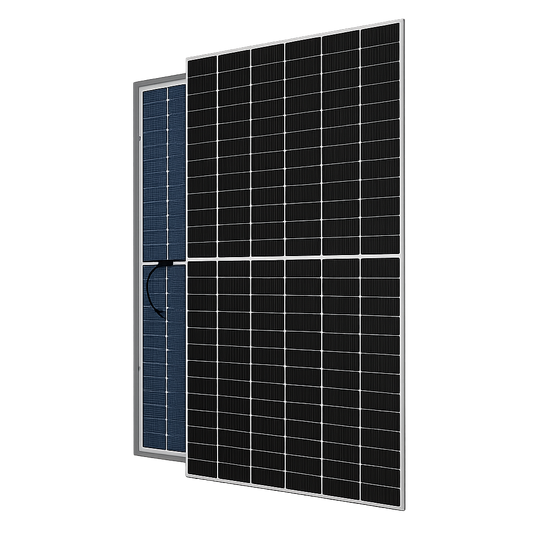

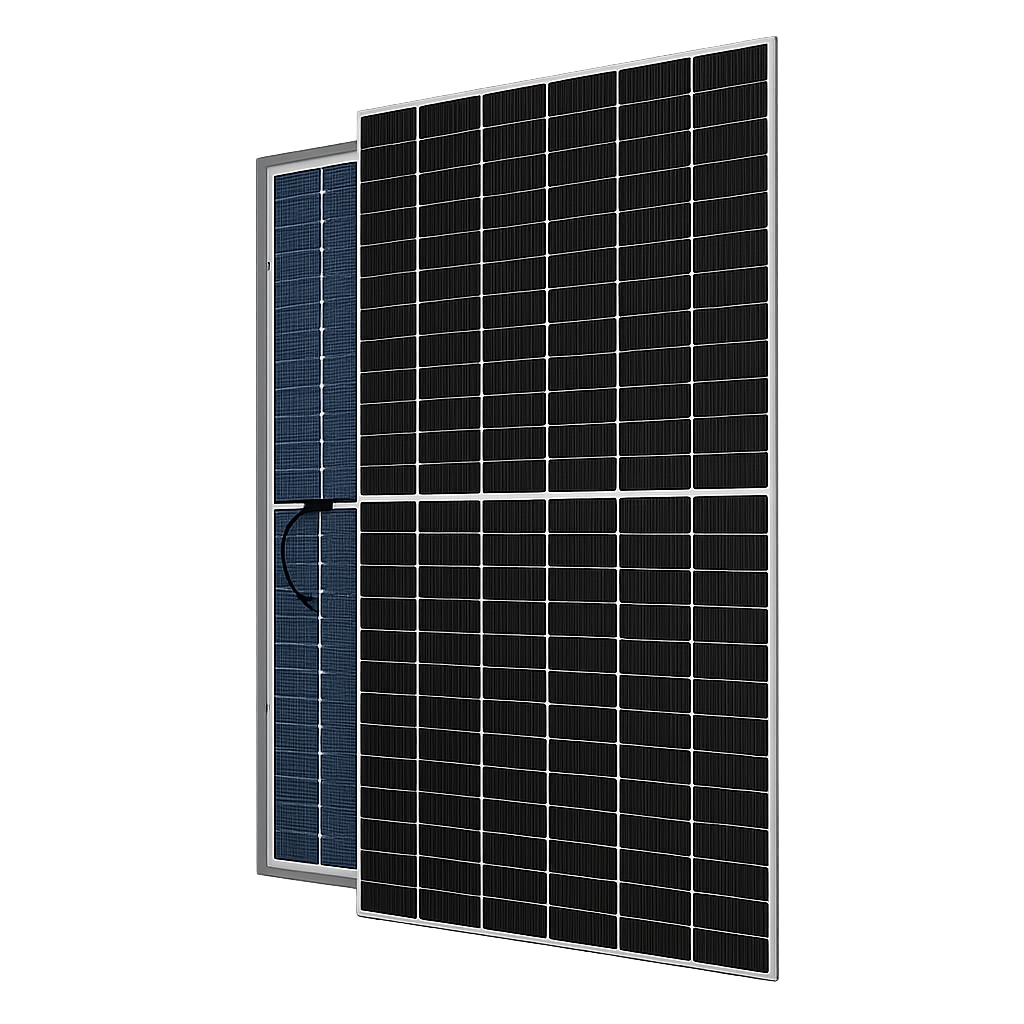

Phono 595W Draco (Pallet of 36) N-Type TOPCon Silver Frame Solar Panels – PS595M8GF-24/TNH

Power large-scale solar projects with a full pallet of 36 Phono Solar Draco 595W N-Type TOPCon bifacial solar panels.

Designed for commercial, agricultural, utility-scale, and high-performance residential installations, the PS595M8GF-24/TNH combines advanced N-Type TOPCon cell technology, dual-glass bifacial construction, and exceptional long-term reliability to maximize lifetime energy production.

With 595 watts of rated output per module, this pallet delivers an impressive 21.42 kW (21,420 watts) of premium solar generating capacity, making it an excellent solution for EPCs, installers, and DIY customers building larger arrays.

What to Pair It With

This pallet pairs well with:

• Commercial string inverters from Solis, Fronius, and SMA
• Hybrid inverters including Sol-Ark for battery-ready systems
• Ground mount systems like the Sinclair Sky-Rack 2.0
• Commercial rooftop racking from IronRidge, Unirac, and K2 Systems
• 1500V commercial PV systems

Why Choose the Phono Draco Series?

The Draco Series combines high-efficiency N-Type TOPCon cells with bifacial dual-glass construction to increase energy production while reducing long-term degradation.

Key benefits include:

• 595W high-power output
• N-Type TOPCon technology
• Bifacial dual-glass construction
• Up to 23.03% module efficiency
• Up to 80% cell bifaciality
• Excellent weak-light performance
• Zero Light Induced Degradation (LID)
• Outstanding anti-PID performance through POE encapsulation
• Lower temperature coefficient for improved hot-weather performance
• Reduced lifetime energy costs (LCOE)

Pallet Includes

• 36 × Phono Solar Draco 595W N-Type TOPCon Solar Panels
• Total DC Capacity: 21.42 kW


Higher Energy Production with Bifacial Technology

The PS595M8GF-24/TNH captures sunlight from both the front and rear of the module.

When installed over reflective surfaces such as:

• White membrane roofs
• Gravel
• Concrete
• Snow
• Light-colored ground cover

The rear side can produce meaningful additional energy. With approximately 80% ±5% bifaciality, backside gains can significantly increase total system output depending on site conditions and array design.

Built for Decades of Performance

Phono Solar designed the Draco Series to deliver dependable production over decades of operation.

Key long-term advantages include:

• Less than 1% first-year degradation
• Only 0.4% annual degradation thereafter
• 15-year product warranty
• 30-year linear performance warranty
• Improved energy retention compared to conventional P-Type modules

Engineered for Harsh Environments

The Draco Series is built to perform in demanding climates and challenging installation conditions.

Features include:

• Dual 2.0 mm toughened glass
• Heavy-duty anodized aluminum frame
• Excellent resistance to moisture and PID
• Front load rating: 5,400 Pa
• Rear load rating: 2,400 Pa
• Hail resistance up to 25 mm at 80 km/h
• Operating temperatures from -40°C to 85°C

Ideal Applications

The Phono 595W Draco Series is an excellent choice for:

• Commercial rooftop solar
• Utility-scale solar farms
• Ground mount arrays
• Agricultural installations
• Industrial facilities
• Large residential systems
• EPC and installer inventory

Specifications
