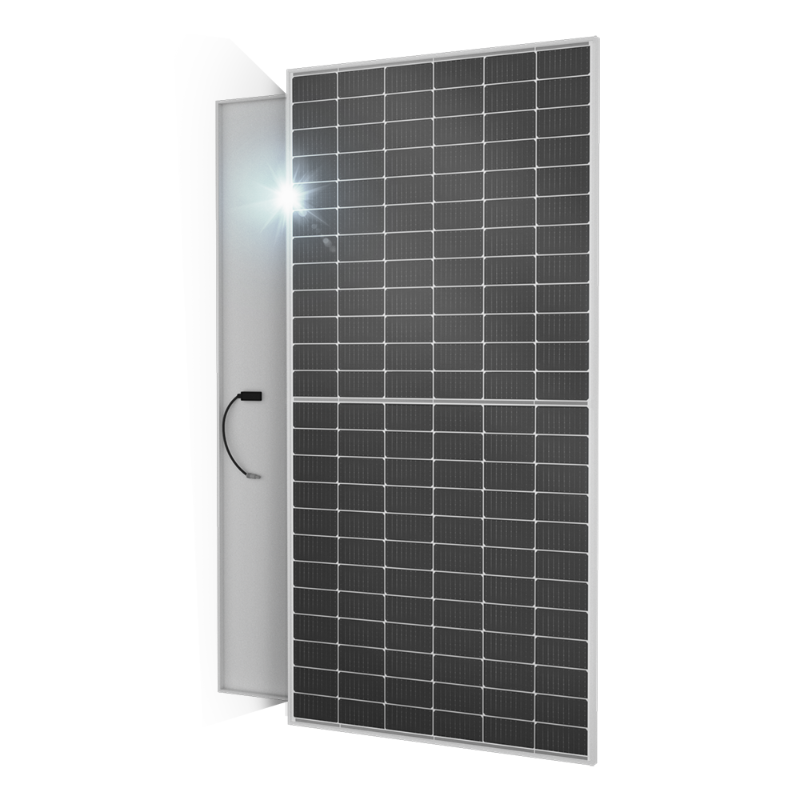

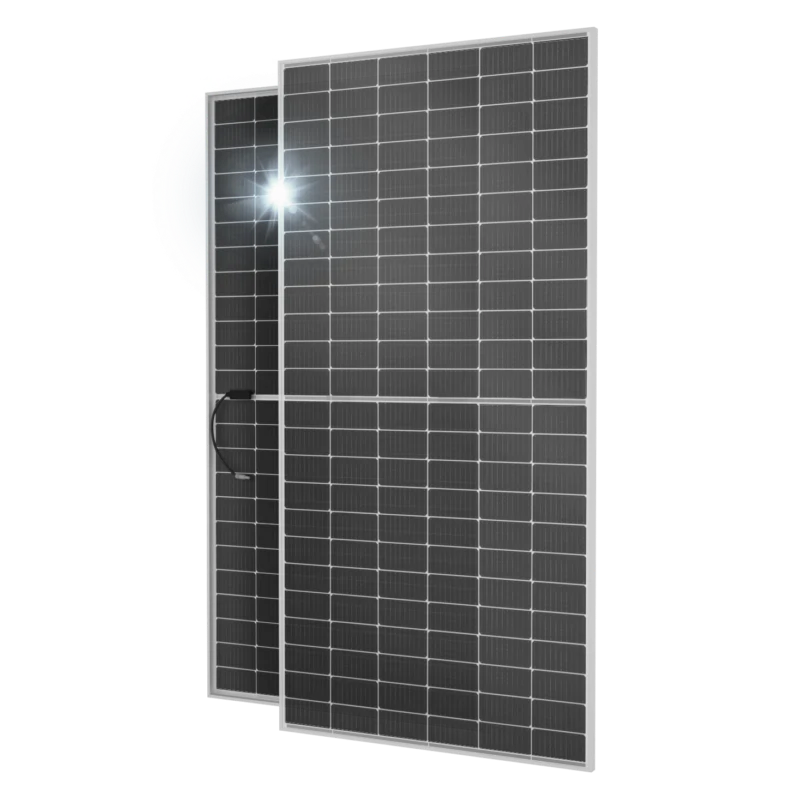

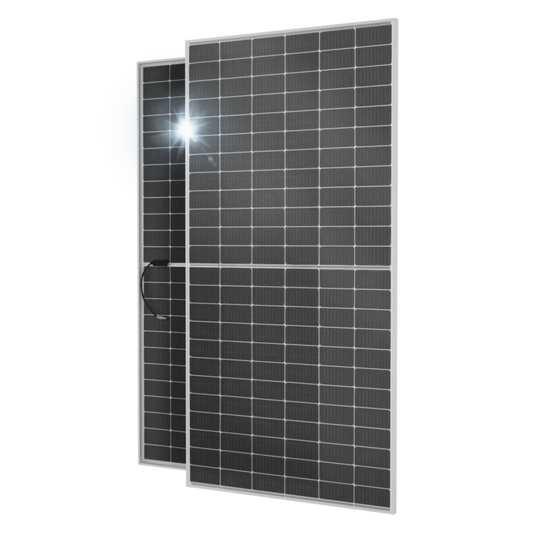

Philadelphia Solar 540W Phenex Solar Panel 144 Cell Bifacial M144(HCBF)-540W
Philadelphia Solar 540W Phenex Solar Panel 144 Cell Bifacial M144(HCBF)-540W
Philadelphia Solar 540W Phenex Solar Panel 144 Cell Bifacial M144(HCBF)-540W
Philadelphia Solar 540W Phenex Solar Panel 144 Cell Bifacial M144(HCBF)-540W
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Philadelphia Solar 540W Phenex Solar Panel 144 Cell Bifacial M144(HCBF)-540W
M144(HCBF)-540W
Philadelphia Solar 540W Solar Panel 144 Cell Bifacial M144(HCBF)-540W
Pallet Minimum: 31 panels/pallet
 |
Lower internal resistance loss. |
|---|---|
 |
Less partial shading current mismatch loss so more power output. |
 |
Lower microcrack problem loss compared with 5-busbar module. |
 |
Lower degradation PERC technology. |
 |
Better temperature coefficients come from half-cell design. |
 |
PID resistant. |
Features
The Philadelphia Solar PS-M144(HCBF)-540W module is designed for high performance and durability:
- High Efficiency: Achieves a module efficiency of 20.9% with power output up to 540W.
- Advanced Technology: Features 144 half-cut 10BB monocrystalline PERC cells for reduced internal resistance and improved power output.
- Durable Construction: Withstands front-side static loads up to 5400 Pa and back-side loads up to 2400 Pa.
- Low Degradation: Includes a linear performance warranty with only -0.5% annual degradation, ensuring 86.0% power retention at year 25.
- Extended Warranty: Backed by a 12-year product warranty and 25-year power performance warranty.
Technology Overview
This bifacial module leverages 10BB half-cell technology, improving current handling and reducing power losses due to partial shading. With a bifaciality ratio of 65±5%, it can deliver up to 25% additional energy under optimal rear-side conditions. The PERC cell design enhances low-light performance, while the tempered AR-coated glass and transparent backsheet improve durability and efficiency.
Installation
- Dimensions: 89.65 × 44.61 × 1.38 inches (2277 × 1133 × 35 mm).
- Weight: 63.93 lbs (29 ± 1 kg).
- Equipped with 3.2 mm AR-coated tempered glass, IP68-rated junction box, and MC4-compatible connectors.
Applications
- Suitable for commercial rooftops, utility-scale solar power plants, and industrial off-grid systems.
Specifications
| Category | Specification |
|---|---|
| Electrical (STC) | |
| Power Output (Pmax) | 540 W |
| Efficiency | 20.9% |
| Voltage (Vmp) | 41.69 V |
| Current (Imp) | 12.96 A |
| Open Circuit Voltage (Voc) | 49.78 V |
| Short Circuit Current (Isc) | 13.59 A |
| Bifaciality Ratio | 65±5% |
| Mechanical | |
| Dimensions (L×W×D) | 89.65 × 44.61 × 1.38 in |
| Weight | 63.93 lbs |
| Cell Configuration | 144 half-cut monocrystalline PERC cells |
| Frame | Anodized aluminum (black or silver options) |
| Glass | 3.2 mm tempered with AR coating |
| Junction Box | IP68, 3 bypass diodes |
| Environmental | |
| Operating Temp | -40°C to +85°C |
| Max System Voltage | 1500 V |
| Test Load (Front/Rear) | 5400 Pa / 2400 Pa |
| Warranty | |
| Product Warranty | 12 years |
| Power Warranty | 25 years (86.0% power retention at year 25) |
Why Choose Philadelphia Solar Panels?
Philadelphia Solar, established in 2007, is a leading global manufacturer of high-quality photovoltaic modules and solar energy solutions. Based in Jordan, Philadelphia Solar is recognized as the first and largest PV panel manufacturer in the MENA region. Their panels feature advanced technologies such as half-cut cells and bifacial designs, which enhance energy yield, improve performance in low-light conditions, and maximize overall efficiency.
Philadelphia Solar’s product lineup, including the 440W bifacial series, is renowned for its versatility, making it ideal for residential, commercial, and utility-scale applications. Designed with durability in mind, these panels are built to endure challenging environments, such as extreme temperatures and high humidity, ensuring reliable energy production over time.
Backed by a 12-year product warranty and a 25-year linear performance warranty, Philadelphia Solar guarantees that its panels will retain at least 84.8% of their original efficiency by the end of the warranty period. This commitment to quality and innovation highlights Philadelphia Solar’s dedication to providing sustainable and dependable energy solutions for diverse energy needs.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year performance guarantee and 12-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the Philadelphia Solar 540W panel?
The Philadelphia Solar 540W panel produces 540 watts of power, making it ideal for large-scale commercial and utility installations.
Q: Are these panels suitable for areas with low sunlight?
Yes, the Philadelphia Solar 540W panels are designed to perform efficiently in low-light conditions, such as cloudy skies, hazy weather, and during mornings or evenings, thanks to their bifacial technology.
Q: What kind of warranty does Philadelphia Solar offer for the 540W panel?
Philadelphia Solar provides a 12-year product warranty and a 30-year linear power output warranty, ensuring reliable performance over the panel's lifetime.
Q: Are these panels compatible with different mounting systems?
Yes, the Philadelphia Solar 540W panels are compatible with various standard mounting systems, making them suitable for both roof-mounted and ground-mounted installations.
Q: How durable are Philadelphia Solar 540W panels in harsh weather conditions?
These panels are engineered to withstand severe weather conditions, including high wind loads, heavy snow, and extreme heat. Their bifacial design enhances both durability and energy production.
Q: Can Philadelphia Solar 540W panels help me save on energy costs?
Absolutely! With their high efficiency and bifacial design, the Philadelphia Solar 540W panels maximize energy generation, reducing electricity costs and ensuring a faster payback period.
Q: How many panels do I need for my project?
For an annual energy usage of 10,000 kWh, you would need approximately 19 to 21 Philadelphia Solar 540W panels. Consult a certified installer for accurate calculations based on your specific requirements.
Q: How many panels are in each pallet?
Each pallet contains 31 Philadelphia Solar 540W panels, offering convenience and value for larger projects.
