Philadelphia Nexus 450W (Pallet of 37) N Type Bifacial All Black MNB108(HCBF)-450W
MPN No: MNB108(HCBF)-450W
Expected ship date Mar 06 - 13
In Stock
6,299.00
-6%
$5,899.99
Sale
Pallet
Philadelphia Nexus 450W (Pallet of 37) N Type Bifacial All Black MNB108(HCBF)-450W
Philadelphia Nexus 450W (Pallet of 37) N Type Bifacial All Black MNB108(HCBF)-450W
Regular price
$6,299.00
-6%
$5,899.99
$0.35/watt
Sale price
$159.45/per panel
6% OFF
499 IN STOCK
Sale
Pallet
Philadelphia Nexus 450W (Pallet of 37) N Type Bifacial All Black MNB108(HCBF)-450W
Philadelphia Nexus 450W (Pallet of 37) N Type Bifacial All Black MNB108(HCBF)-450W
Available
MPN No: MNB108(HCBF)-450W
Regular price
$6,299.00
-6%
$5,899.99
$0.35/watt
Sale price
$159.45/per panel
Expected ship date Mar 06 - 13
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$6,299.00
-6%
$5,899.99
Philadelphia Nexus 450W (Pallet of 37) N Type Bifacial All Black MNB108(HCBF)-450W
MPN No:
MNB108(HCBF)-450W
Expected ship date Mar 06 - 13
Sale
≥ 21
Philadelphia Nexus 450W (Pallet of 37) N Type Bifacial All Black MNB108(HCBF)-450W
FEOC Compliant

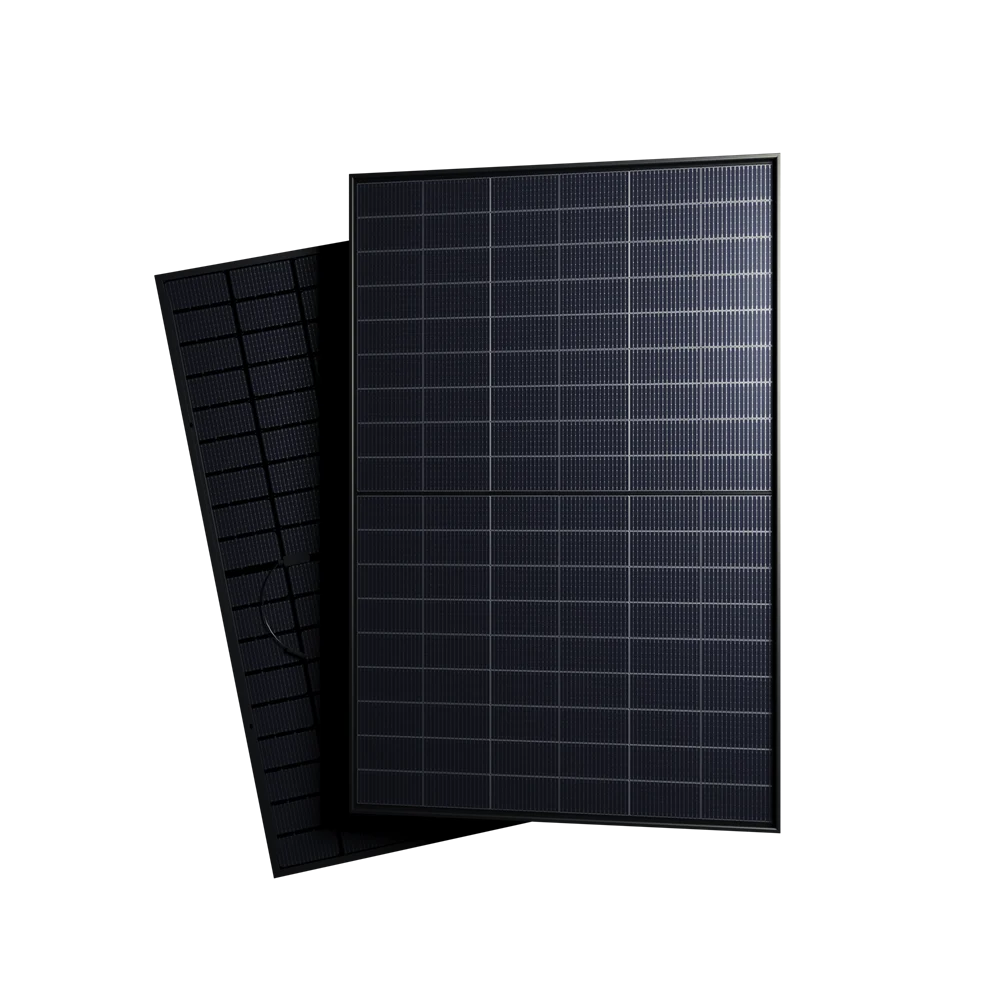

The MNB108(HCBF)-450W is a high-efficiency N-type mono-crystalline bifacial solar module from Philadelphia Solar’s NEXUS series.
Key Technology
-
N-Type 16BB Half-Cell Architecture
Reduces resistive losses, improves current collection, and enhances overall module efficiency and reliability. -
Bifacial Energy Generation
Bifacial design with approximately 80% bifaciality enables additional rear-side energy gain depending on installation conditions. -
Exceptional Anti-PID Performance
Optimized materials and manufacturing processes ensure strong PID resistance and long-term output stability. -
High Mechanical Load Strength
Rated for 5400 Pa front and 5400 Pa rear static loads for demanding environmental conditions. -
Positive Power Tolerance
Power tolerance of 0 ~ +3% ensures reliable real-world energy yield.
Best Uses
-
Commercial & Industrial Rooftops
Optimized for on-grid commercial installations and large rooftop systems. -
Solar Power Plants
High durability and bifacial gains improve long-term LCOE for utility-scale projects. -
Off-Grid & Hybrid Systems
Reliable performance for off-grid systems and integrated energy solutions.
Warranty
-
Product Warranty: 25 Years
-
Performance Warranty: 30-Year linear power warranty
-
Annual Degradation: Only 0.4% per year (after initial year)
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Philadelphia Solar |
| Series | NEXUS PS-MNB108(HCBF) |
| Model | MNB108(HCBF)-450W |
| Cell Technology | N-Type Mono-Crystalline, 16BB, Half-Cell, Bifacial |
| Maximum Power (Pmax) | 450 W |
| Module Efficiency | ≈ 23.02% |
| Maximum Power Voltage (Vmpp) | 33.51 V |
| Maximum Power Current (Impp) | 13.44 A |
| Open Circuit Voltage (Voc) | 38.84 V |
| Short Circuit Current (Isc) | 14.47 A |
| Bifaciality Ratio | 80% ± 5% |
| Power Tolerance | 0 ~ +3% |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.046% / °C |
| NOCT | 45°C ± 2°C |
| Maximum System Voltage | 1500 V |
| Maximum Series Fuse Rating | 30 A |
| Cells per Module | 108 (54 × 2) |
| Front Glass | 3.2 mm Tempered AR Coated Glass |
| Backsheet | Transparent Backsheet |
| Frame | Anodized Aluminum Black |
| Junction Box | IP68 with original MC4 connectors |
| Module Dimensions | 67.76 × 44.61 × 1.18 inches |
| Weight | 47.4 lbs |
| Mechanical Load (Front / Back) | 5400 Pa / 5400 Pa |
| Operating Temperature Range | -40°C to +85°C (IEC) |

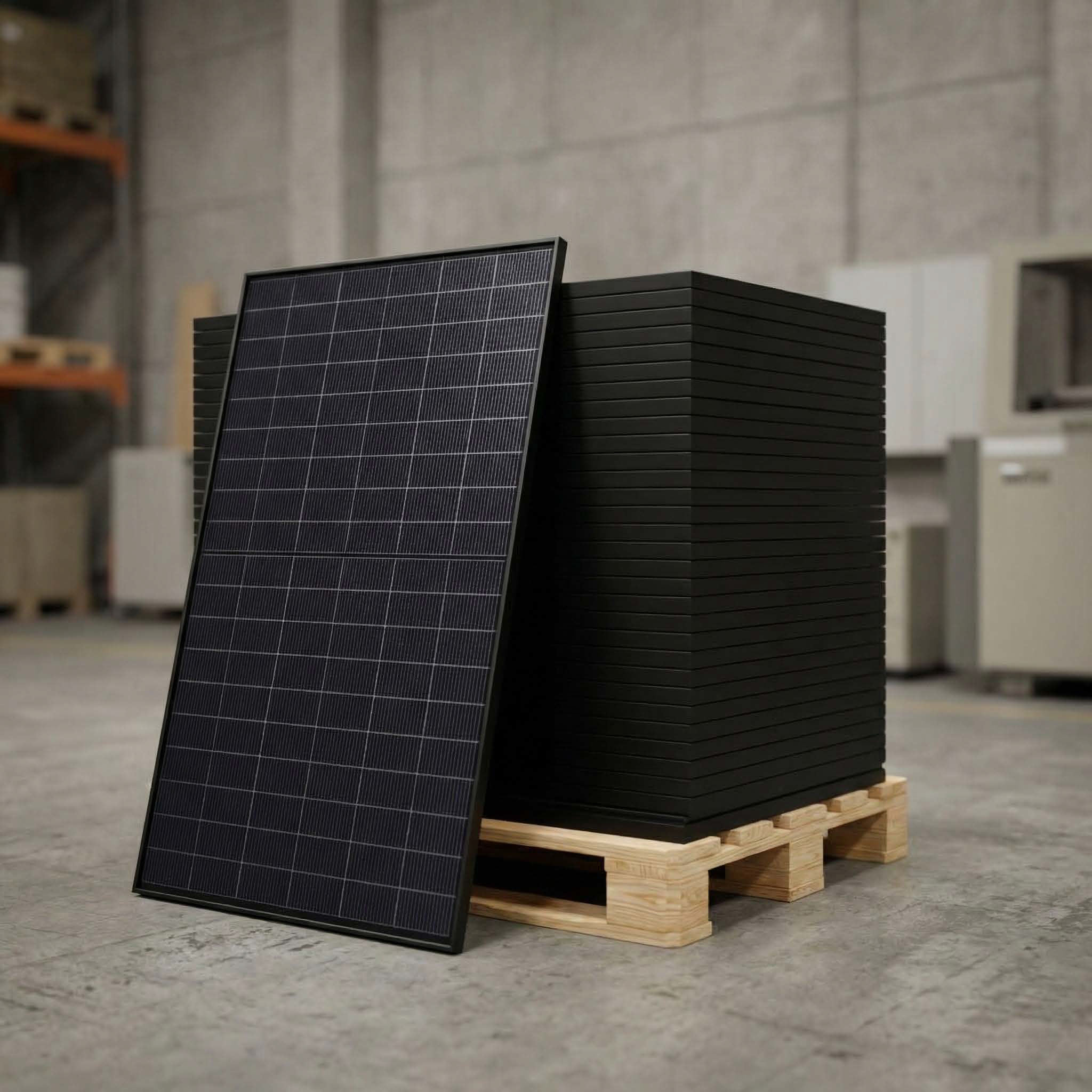

| Modules per Pallet | 37 |
| Certifications | UL 61215, UL 61730, IEC 61215, IEC 61730, CSA C22.2 |
About Philadelphia Solar:
Philadelphia Solar is a global PV module manufacturer known for high-efficiency mono-crystalline and bifacial solar modules produced using advanced automated production lines. Their modules are engineered for durability, strong environmental resistance, and long-term performance across commercial, industrial, and utility-scale applications.
High-Efficiency N-Type Bifacial Module for Commercial & Utility Projects
The MNB108(HCBF)-450W delivers a balanced combination of high efficiency, bifacial energy gain, and robust mechanical durability. With N-type half-cell technology, low degradation, and strong load ratings, it is an excellent choice for solar projects focused on long-term energy yield and reliability.
