Pegasus Solar Scissor Mount Rafter Sled w/Lags & Base Flashing for Flat/S/W Tiles PTX-RSB

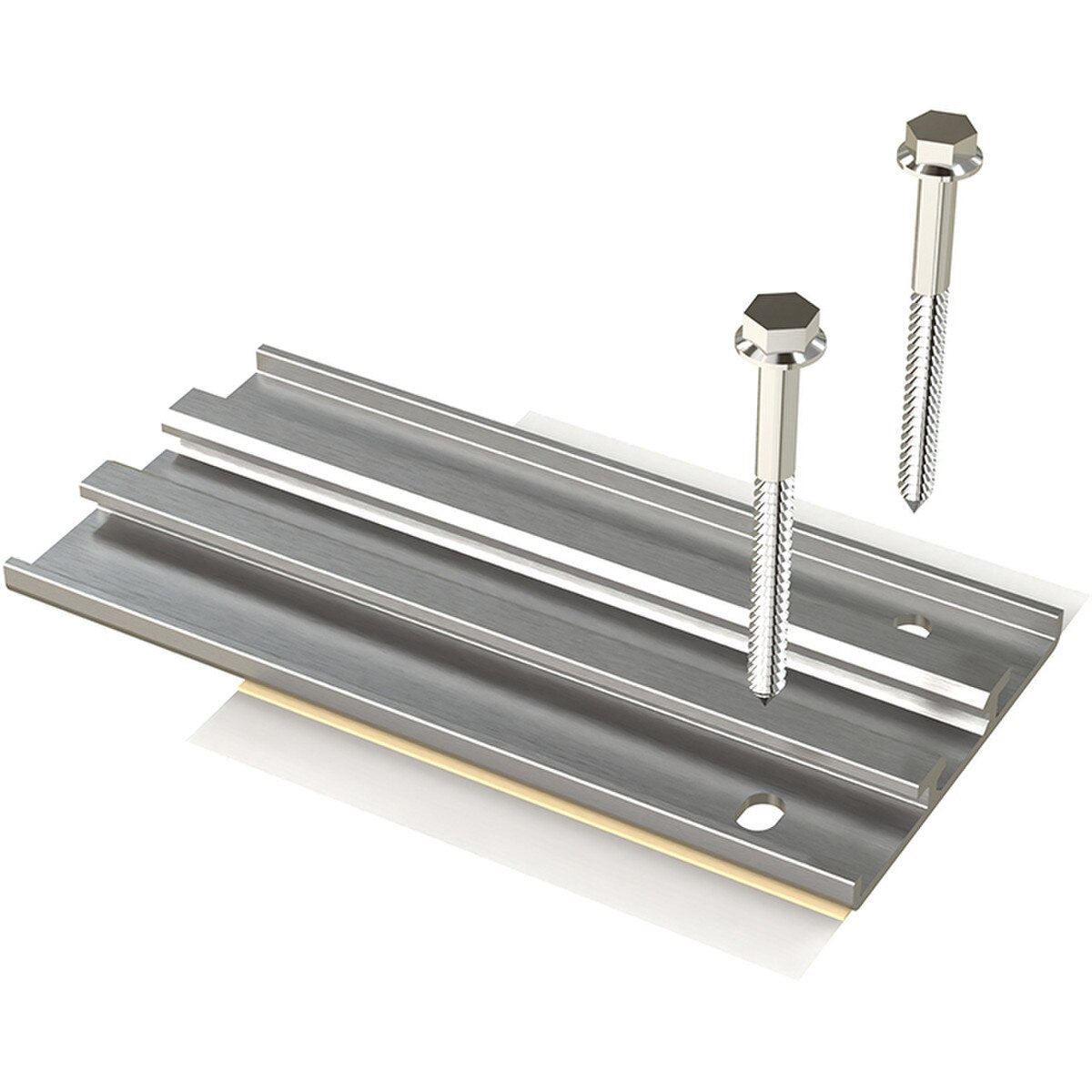

The PTX-RSB Tile Scissor Mount Rafter Sled Kit is a rafter-mounted attachment designed specifically for tile roofs. Its scissor-style mounting transfers loads directly to the rafter—reducing stress on tiles—while the integrated butyl seal provides dependable, long-term waterproofing. This approach eliminates tile cutting and grinding, delivering a cleaner, faster, and more durable installation.


Key Technology

  • Scissor-Style Rafter Attachment
    Direct-to-rafter load transfer improves structural performance and minimizes tile breakage.

  • Integrated Butyl Waterproofing
    Pre-applied butyl creates a resilient seal that maintains roof integrity over time.

  • Tile-Friendly Design
    No tile cutting or grinding required—reduces labor and preserves roof aesthetics.

  • Low-Profile Mounting Platform
    Provides a clean attachment point for rails or L-feet.


Best Uses

  • Residential Tile Roof Solar
    Ideal for clay and concrete tile roofs requiring rafter-based attachments.

  • High Wind & Seismic Zones
    Rafter anchoring enhances system resilience.

  • Rail-Based PV Systems
    Compatible with Pegasus Solar rails and standard rooftop hardware.


Dimensions

  • Overall Length: 8.5 in (216 mm)
  • Overall Width: 4.1 in (105 mm)
  • Mounting Height: 3.5 in (88 mm)
  • Material Thickness: 0.5 in (13 mm)

Product Specifications

Specification Details
Manufacturer Pegasus Solar
Product Name Tile Scissor Mount Rafter Sled Kit
Part Number PTX-RSB
Roof Compatibility Tile roofs (clay & concrete)
Mounting Method Rafter-mounted scissor sled
Seal Type Integrated butyl
Application Roof attachment for PV mounting systems



About Pegasus Solar Solar:

Pegasus Solar is an American solar company founded in 2012 that designs and manufactures rooftop solar mounting systems—especially rail-less and rail-based hardware to hold solar panels securely on residential and commercial roofs. The brand focuses on making solar installations simpler, faster and more reliable with innovative, durable products and extensive installer support.


Direct-to-Rafter Strength with Tile-Safe Waterproofing

The Pegasus Solar PTX-RSB delivers a structurally robust, watertight solution for tile roofs—combining fast installation, reduced roof disturbance, and long-term reliability trusted by professional installers.
