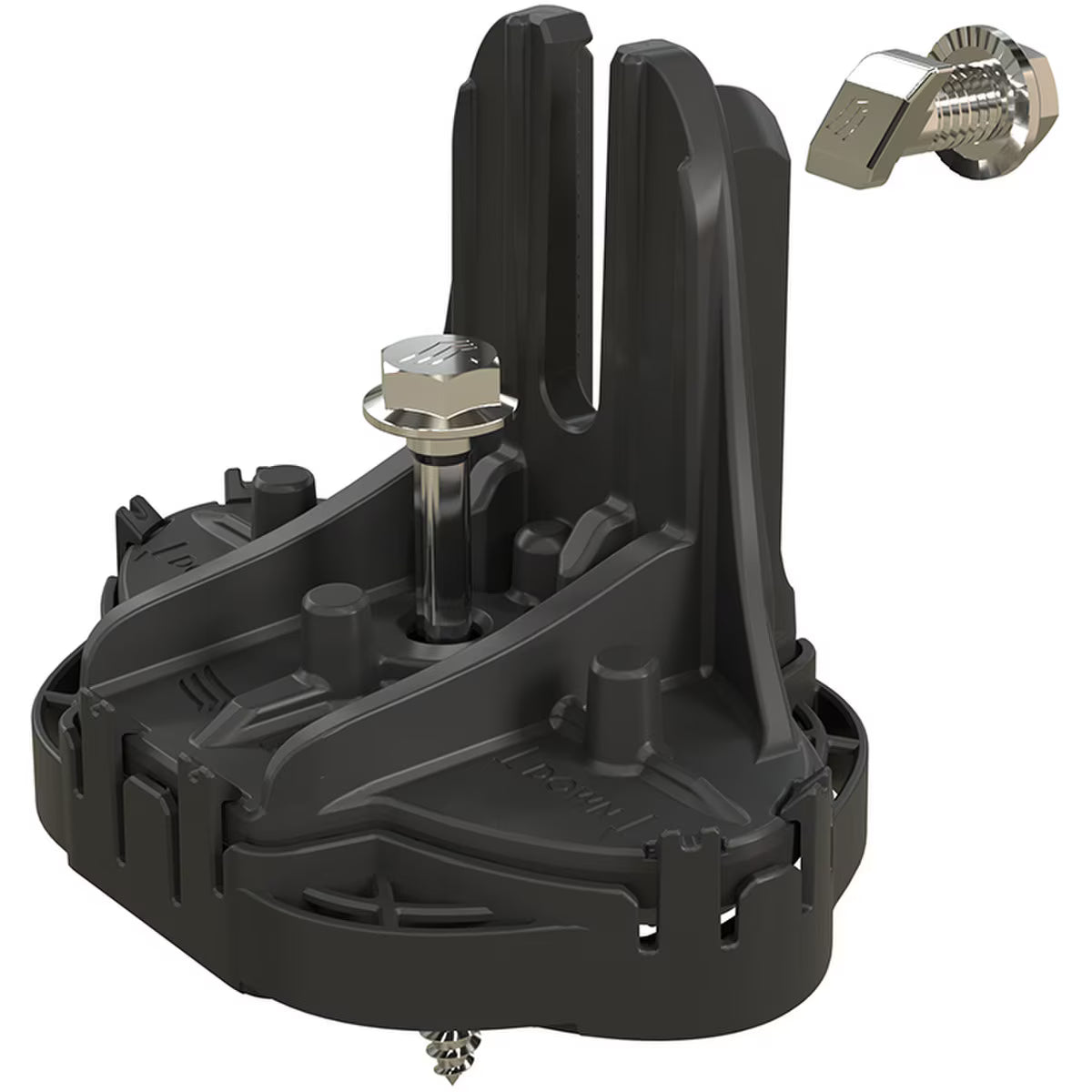

Pegasus Solar InstaFlash Black Dovetail T-bolt (1 pc) PIF-RBDT

The PIF-RBDT InstaFlash Black Dovetail T-Bolt Kit is a rafter-attached, self-flashing roof mount engineered to deliver permanent, watertight penetrations for railed PV systems. Each assembly includes Pegasus’ factory-installed, non-hardening chemical flashing, a stainless steel lag, and an integrated dovetail T-bolt with nut—eliminating caulking, reducing install time, and ensuring long-term roof protection.

Key Technology

• Self-Healing Chemical Flashing
  Factory-installed, non-hardening sealant flexes and reseals through thermal expansion and contraction for lifetime protection.

• Dovetail T-Bolt Interface
  Provides a secure, low-profile connection to most railed PV mounting systems.

• Protective Sealant Cage
  Keeps sealant contained during handling; collapses upon lag installation to fill all holes and voids.

• Larger Spans Capability
  Extra-large L-foot geometry and proprietary lag screw enable greater spacing between mounts.

Best Uses

• Sloped Roof Solar Installations
  Composition shingle and rolled asphalt roofs requiring rafter attachment.

• Railed PV Systems
  Compatible with most standard rail platforms and Pegasus Tilt Leg Kit.

• All-Weather Installations
  Installs reliably in hot, cold, and wet conditions.

Installation Notes

• Rafter-attached installation using the included 5/16" × 4.0" stainless steel lag.

• Drill a 7/32" pilot hole centered on the rafter; align InstaFlash down-arrows toward the eave.

• Drive lag until the InstaFlash base is fully seated to compress the sealant.

Note: Follow project engineering and Pegasus installation guidance for allowable spans and layout.

Warranty & Compliance

• Warranty: 25-Year Limited Warranty

• Certifications: IBC / CBC compliant; exceeds ASCE/SEI 7-16; FL Cert of Approval FL41396; UL 2703

Product Specifications

Effortless Lifetime Roof Protection

The Pegasus Solar PIF-RBDT InstaFlash Kit delivers fast installs, larger allowable spans, and permanent watertight sealing—making it a trusted choice for professional, code-compliant railed PV installations.
