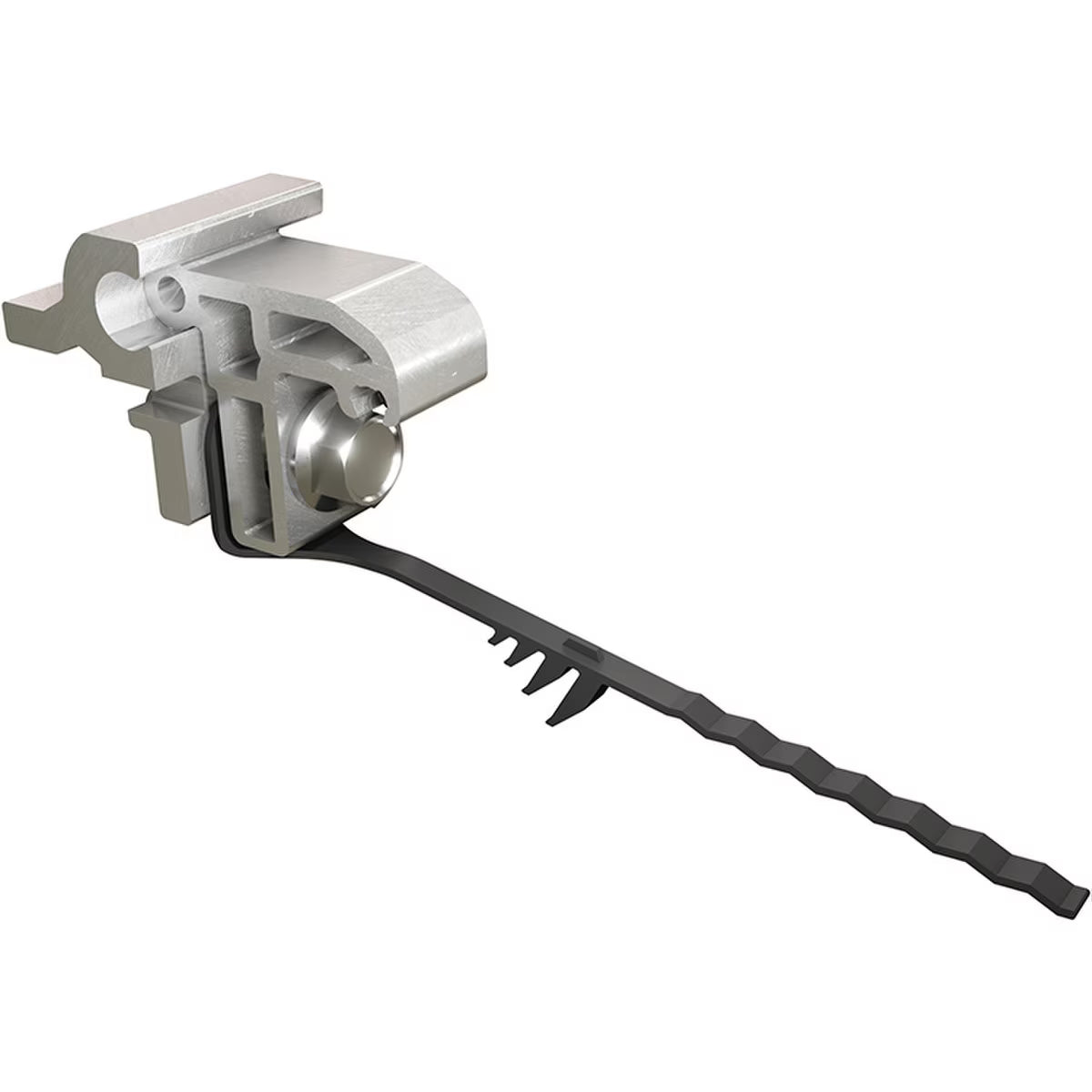

Pegasus Solar Hidden End Clamp (1 pc) PSR-HEC
MPN No: PSR-HEC
Expected ship date Jun 22 - 29
In Stock
$8.43
Regular price
$8.43
3859 IN STOCK
Pegasus Solar Hidden End Clamp (1 pc) PSR-HEC
Pegasus Solar Hidden End Clamp (1 pc) PSR-HEC
Available
MPN No: PSR-HEC
Regular price
$8.43
Expected ship date Jun 22 - 29
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$8.43
Pegasus Solar Hidden End Clamp (1 pc) PSR-HEC
MPN No:
PSR-HEC
Expected ship date Jun 22 - 29
Pegasus Solar Hidden End Clamp (1 pc) PSR-HEC
The PSR-HEC Hidden End Clamp is a premium edge-clamping solution designed to deliver a clean, flush appearance at the perimeter of Pegasus rail-based solar arrays. Engineered for simplicity and performance, the PSR-HEC installs by hand, bonds modules to the rail, and integrates seamlessly into Pegasus’ UL-listed rail ecosystem.
Key Technology
-
Hidden Clamp Design
Fits flush to PV module frames, concealing raw or angled rail cuts for a refined, finished look. -
One Clamp Anywhere
Compatible as an end clamp and works seamlessly within Pegasus rail systems. -
Tool-Free Installation
Preinstalled pull-tab grips the rail edge, allowing fast, one-hand installation. -
Integrated Bonding
Bonds modules directly to the rail; UL 2703 listed as reusable.
Best Uses
-
Premium Residential Arrays
Ideal for projects where aesthetics and clean edges are a priority. -
Commercial Rooftop Systems
Provides a consistent, professional edge finish across large arrays. -
Blackout & Flush-Mount Designs
Pairs with Pegasus black rails, end caps, and hidden hardware.
Installation Notes
-
Fits standard 30–40 mm framed PV modules.
-
Installs by hand—no special tools required.
-
Designed exclusively for use with Pegasus rail systems.
Warranty & Compliance
-
Certifications: UL 2703, LTR-AE-001-2012
-
Fire Rating: Class A (any slope)
-
Structural: ASCE 7-16 PE Certified
-
Warranty: 25-Year Limited Warranty
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pegasus Solar |
| Product Name | Hidden End Clamp |
| Part Number | PSR-HEC |
| Module Frame Range | 30–40 mm |
| Bonding | Integrated module-to-rail bonding |
| System Compatibility | Pegasus Rail & Pegasus Max Rail |
| Installation Method | Hand operable, pull-tab design |
About Pegasus Solar Solar:
Pegasus Solar is an American solar company founded in 2012 that designs and manufactures rooftop solar mounting systems—especially rail-less and rail-based hardware to hold solar panels securely on residential and commercial roofs. The brand focuses on making solar installations simpler, faster and more reliable with innovative, durable products and extensive installer support.
Clean Edges. Premium Results.
The Pegasus Solar PSR-HEC Hidden End Clamp delivers a sleek, flush-mounted edge finish while maintaining structural strength, bonding compliance, and installer efficiency—making it an ideal choice for modern, high-end solar installations.
