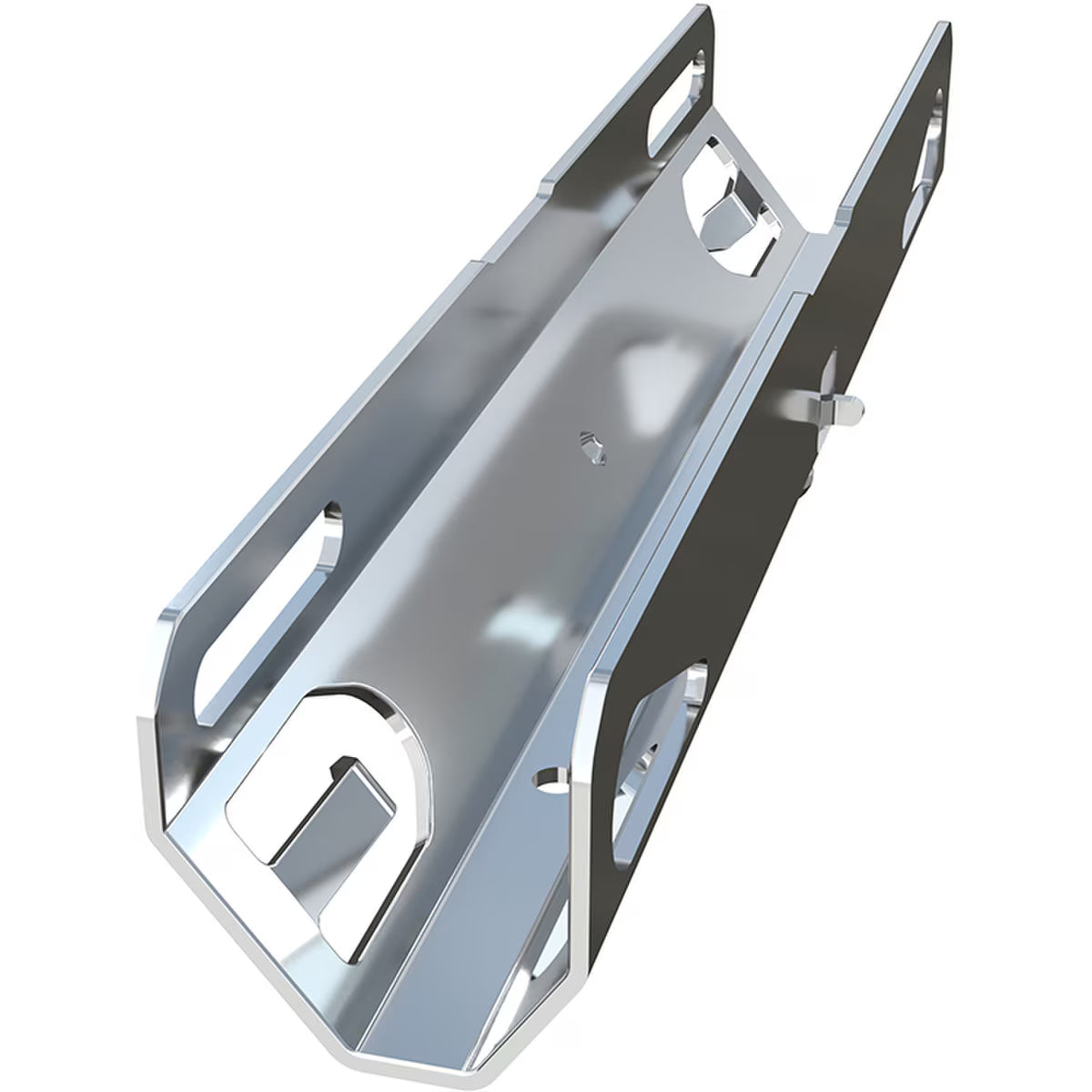

Pegasus Solar Bonded Structural Splice USA (1 pc) PSR-SPLS-US
MPN No: PSR-SPLS-US
Expected ship date Feb 25 - Mar 04
In Stock
$6.07
Pegasus Solar Bonded Structural Splice USA (1 pc) PSR-SPLS-US
Pegasus Solar Bonded Structural Splice USA (1 pc) PSR-SPLS-US
Regular price
$6.07
New
1939 IN STOCK
Pegasus Solar Bonded Structural Splice USA (1 pc) PSR-SPLS-US
Pegasus Solar Bonded Structural Splice USA (1 pc) PSR-SPLS-US
Available
MPN No: PSR-SPLS-US
Regular price
$6.07
Expected ship date Feb 25 - Mar 04
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$6.07
Pegasus Solar Bonded Structural Splice USA (1 pc) PSR-SPLS-US
MPN No:
PSR-SPLS-US
Expected ship date Feb 25 - Mar 04
Pegasus Solar Bonded Structural Splice USA (1 pc) PSR-SPLS-US
The PSR-SPLS-US Structural Splice is a no-tool rail splice engineered to structurally connect and electrically bond Pegasus rails in one step. Purpose-built for U.S. installations, it eliminates separate splice hardware and bonding jumpers—delivering faster installs, cleaner layouts, and fully code-compliant connections.
Key Technology
-
No-Tool Splicing & Bonding
Hand-installed splice instantly joins rails while automatically providing electrical bonding. -
Integrated Structural + Grounding Function
Combines mechanical rail connection and bonding into a single component. -
Dovetail Geometry for Strength
Dovetail profile enhances load transfer and long-term structural reliability. -
Wire-Safe Open Rail Channel
Designed so splices and clamps won’t pinch wires after tightening.
Best Uses
-
Railed PV Arrays
Fast rail-to-rail connections for Pegasus Solar mounting systems. -
High-Productivity Crews
Reduces tools, steps, and install time on the roof. -
Code-Compliant Grounding
Eliminates separate bonding jumpers while maintaining UL-listed bonding paths.
Installation Notes
-
Installs by hand—no socket or specialty tools required.
-
Works seamlessly over Pegasus mounts without interference.
-
Designed exclusively for use with Pegasus Rail & Pegasus Max Rail.
Warranty & Compliance
-
Certifications: UL 2703 listed (reusable), LTR-AE-001-2012
-
Fire Rating: Class A (any roof slope)
-
Structural: ASCE 7-16 PE Certified
-
Approvals: FL Cert of Approval FL41396
-
Warranty: 25-Year Limited Warranty
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pegasus Solar |
| Product Name | Structural Splice (US) |
| Part Number | PSR-SPLS-US |
| Function | Rail-to-rail structural connection & bonding |
| Installation Method | Hand-installed, no tools |
| System Compatibility | Pegasus Rail & Pegasus Max Rail |
About Pegasus Solar Solar:
Pegasus Solar is an American solar company founded in 2012 that designs and manufactures rooftop solar mounting systems—especially rail-less and rail-based hardware to hold solar panels securely on residential and commercial roofs. The brand focuses on making solar installations simpler, faster and more reliable with innovative, durable products and extensive installer support.
Instant Splicing. Instant Bonding.
The Pegasus Solar PSR-SPLS-US Structural Splice combines strength, grounding, and speed into a single no-tool component—helping installers deliver faster, cleaner, and fully compliant solar arrays on U.S. projects.
