Pegasus Solar Bonded Structural Splice (1 pc) PSR-SPLS
MPN No: PSR-SPLS
Expected ship date Feb 25 - Mar 04
In Stock
$3.87
Pegasus Solar Bonded Structural Splice (1 pc) PSR-SPLS
Pegasus Solar Bonded Structural Splice (1 pc) PSR-SPLS
Regular price
$3.87
New
4606 IN STOCK
Pegasus Solar Bonded Structural Splice (1 pc) PSR-SPLS
Pegasus Solar Bonded Structural Splice (1 pc) PSR-SPLS
Available
MPN No: PSR-SPLS
Regular price
$3.87
Expected ship date Feb 25 - Mar 04
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3.87
Pegasus Solar Bonded Structural Splice (1 pc) PSR-SPLS
MPN No:
PSR-SPLS
Expected ship date Feb 25 - Mar 04
Pegasus Solar Bonded Structural Splice (1 pc) PSR-SPLS

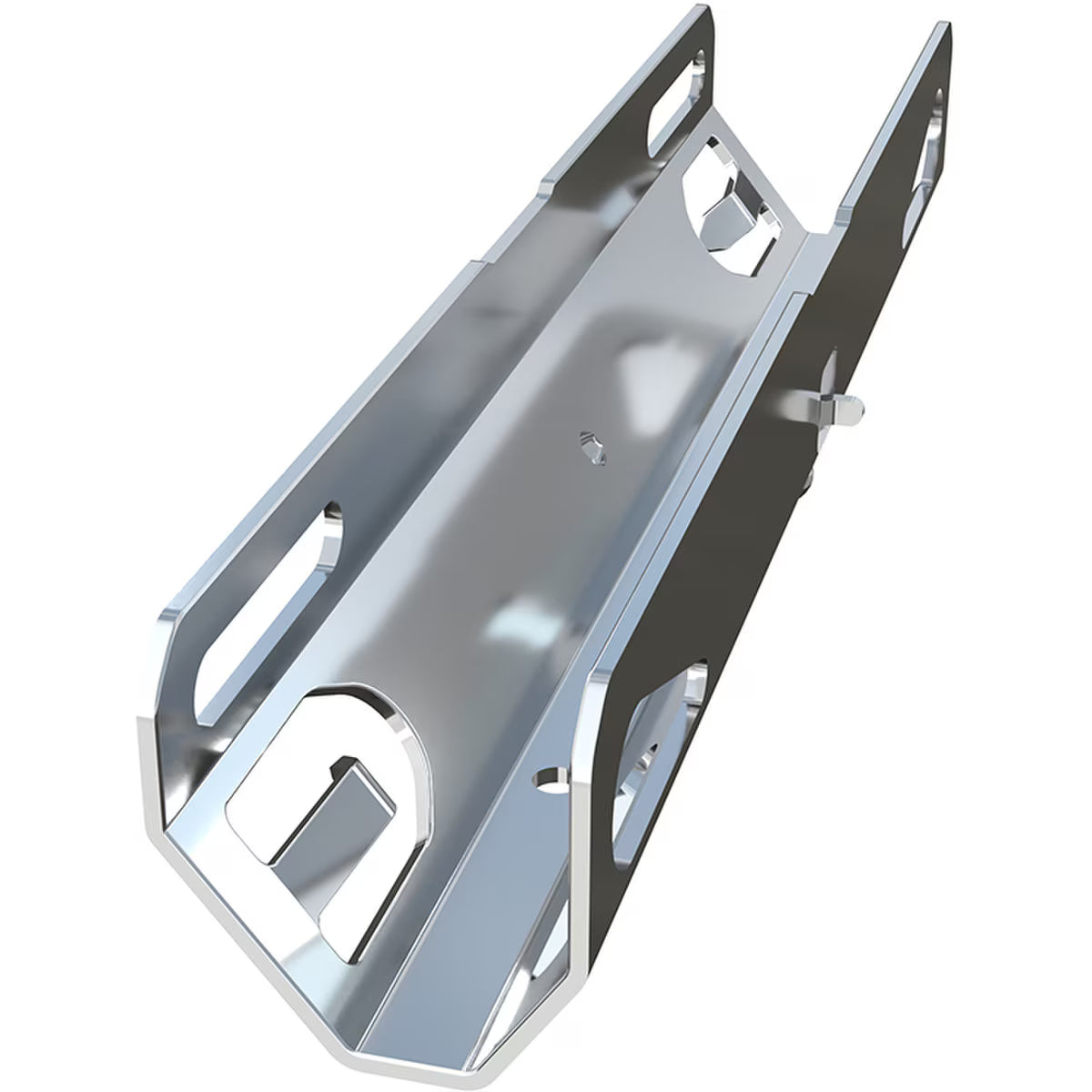

The PSR-SPLS Structural Splice is an innovative no-tool rail splice designed to structurally connect and electrically bond Pegasus Solar rails instantly. Engineered for speed, strength, and simplicity, the PSR-SPLS eliminates traditional splice hardware and separate bonding jumpers—delivering a cleaner, faster, and fully code-compliant rail connection.
Key Technology
-
No-Tool Splicing & Bonding
Installs by hand to structurally connect rails while automatically providing electrical bonding. -
Bonding Structural Splice
Combines mechanical rail connection and grounding into a single integrated component. -
Dovetail Geometry for Strength
Engineered shape enhances load transfer and long-term structural reliability. -
Wire-Safe Rail Channel
Open rail channel design protects conductors—splices and clamps will not pinch wires after tightening.
Best Uses
-
Railed PV Arrays
Rapid rail-to-rail connections in Pegasus Solar mounting systems. -
Fast-Paced Installations
Ideal for crews looking to reduce install time and tool changes. -
Code-Compliant Grounding
Eliminates separate bonding jumpers while maintaining UL-listed bonding paths.
Installation Notes
-
Installs by hand—no socket or specialty tools required.
-
Works seamlessly over Pegasus mounts without interference.
-
Designed exclusively for use with Pegasus Solar rail systems.
Warranty & Compliance
-
Certifications: UL 2703 listed (reusable), LTR-AE-001-2012
-
Fire Rating: Class A (any roof slope)
-
Structural: ASCE 7-16 PE Certified
-
Warranty: 25-Year Limited Warranty
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pegasus Solar |
| Product Name | Structural Splice |
| Part Number | PSR-SPLS |
| Function | Rail-to-rail structural connection & bonding |
| Installation Method | Hand-installed, no tools |
| System Compatibility | Pegasus Solar Rail & Pegasus Max Rail |
About Pegasus Solar Solar:
Pegasus Solar is an American solar company founded in 2012 that designs and manufactures rooftop solar mounting systems—especially rail-less and rail-based hardware to hold solar panels securely on residential and commercial roofs. The brand focuses on making solar installations simpler, faster and more reliable with innovative, durable products and extensive installer support.
Instant Splicing. Instant Bonding.
The Pegasus Solar PSR-SPLS Structural Splice redefines rail connections by combining strength, grounding, and speed into one no-tool component—helping installers build faster, cleaner, and fully compliant solar arrays.
