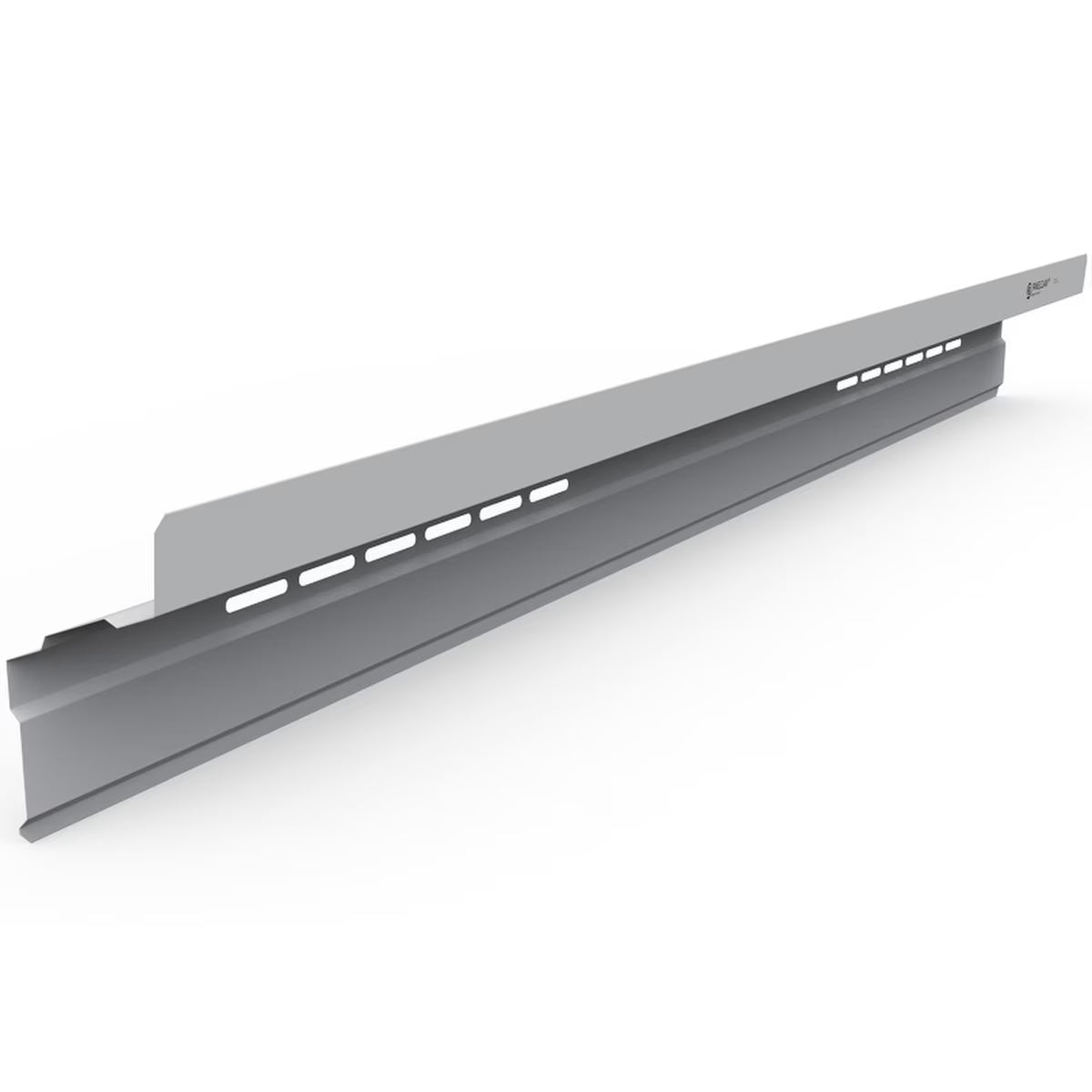

PanelClaw Deflector 10D Wind Deflector for CFR / CFRP Racking – 2300 mm (200088705)

The PanelClaw DEFLECTOR 10D 2300 is a purpose-built aerodynamic wind deflector engineered for the clawFR 10° ballasted flat roof mounting system. Designed to reduce wind uplift and edge turbulence, this deflector is a critical system component for maintaining array stability under high-wind conditions and for meeting site-specific ballast and structural requirements.

Key Technology

• Wind Load Reduction Design
  Installed along the lower edge of modules to minimize uplift forces and turbulence caused by wind exposure.

• System-Critical Component
  Required when forecasted wind gusts exceed 25% of the site design wind speed, as defined in the PanelClaw Racking Construction Set.

• Precision Fit for Module Lengths
  Sized specifically for PV modules with frame lengths between 2201 mm and 2300 mm.

• UL-Certified System Integration
  Fully compatible with ANSI/UL 2703 and UL 3741 listed clawFR 10 Degree systems.

Best Uses

• Ballasted Flat Roof Solar Arrays
  Enhances wind resistance and system reliability without roof penetrations.

• High-Wind or Exposed Installations
  Essential for rooftops subject to elevated wind speeds or gust conditions.

• Code-Compliant Commercial PV Systems
  Supports structural and fire-rating compliance when installed per PanelClaw design documentation.

Installation Notes

• Deflectors are installed at the lower edge of modules and secured directly to the Tilt Arm.

• Adjacent deflectors are designed to overlap for continuous airflow management.

• Array-edge deflectors should be installed flush with the module edge where spacing allows.

Note: Deflector quantity and placement are defined in the project-specific PanelClaw Racking Construction Set. Deflectors must be installed on all mounted modules when required by wind criteria.

Warranty & Compliance

• System Certification: ANSI/UL 2703 & UL 3741 (when installed as part of the clawFR 10° system)

• Fire Rating: Class A system fire rating for low-slope roofs (with or without deflectors)

Product Specifications

Engineered Wind Protection for Ballasted PV Systems

The PanelClaw DEFLECTOR 10D 2300 is an essential aerodynamic component for maintaining structural integrity in clawFR 10° ballasted arrays. When installed per PanelClaw engineering specifications, it helps ensure long-term performance, safety, and code compliance in demanding rooftop environments.
