OutBack Power 2.8kW 12V Off Grid Battery-Based Inverter/Charger VFXR2812A

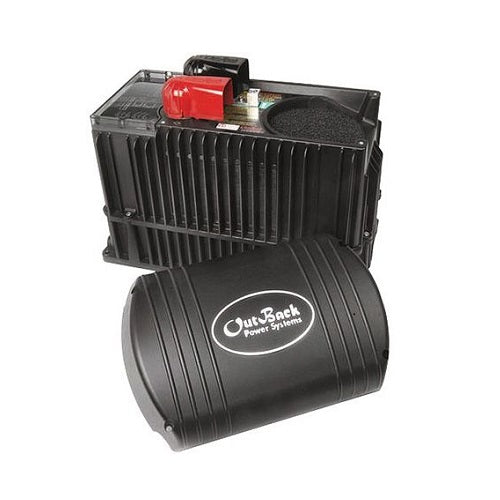

The OutBack Power VFXR2812A is a vented-grid/hybrid inverter charger designed for off-grid, backup power, and renewable energy storage applications. Engineered for reliability in harsh environments, this inverter delivers pure sine wave output, advanced battery charging capabilities, and flexible grid-interactive functionality for modern energy systems.
As part of the FXR/VFXR A-Series platform, the VFXR2812A supports modular stacking, generator integration, and advanced system monitoring through OutBack’s MATE3 and OPTICS RE platforms, making it ideal for scalable residential and distributed energy installations.
Key Technology
-
Grid/Hybrid Inverter Charger
Supports off-grid, grid-tied, and backup energy storage applications with integrated charging functionality. -
Pure Sine Wave Output
Provides clean, utility-quality AC power for sensitive electronics and appliances. -
Advanced Battery Charging (ABC)
Compatible with flooded, gel, AGM, lithium-ion, and flow chemistry batteries. -
Modular Stackable Design
Supports up to ten units in parallel single-phase operation and nine units for three-phase configurations. -
Generator Integration
Includes dual AC inputs for grid and generator support with programmable operational modes. -
High Surge Capacity
Provides up to 4500VA surge power for demanding startup loads. -
GridZero Operating Mode
Minimizes grid dependence in areas with limited utility sell-back incentives. -
Remote Monitoring & Control
Compatible with OutBack MATE3 and OPTICS RE monitoring platforms for internet-connected system management.
Best Uses
-
Off-Grid Power Systems
Provides reliable inverter and charging performance for remote energy systems. -
Backup Power Applications
Supports battery-based backup systems for homes and critical loads. -
Hybrid Renewable Energy Systems
Integrates solar, battery storage, generator, and utility power sources. -
Energy Storage Installations
Ideal for battery-based renewable energy systems requiring flexible charging and inverter functionality.
Warranty
- Standard Warranty: 5 Years
- Extended Warranty: Optional 10-Year Warranty Available
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | OutBack Power |
| Model | VFXR2812A |
| Series | FXR/VFXR Grid/Hybrid Series |
| Product Type | Grid/Hybrid Inverter Charger |
| Continuous Power Rating | 2800 VA |
| Peak Power (30 min) | 3200 VA |
| Surge Power (5 sec) | 4500 VA |
| Instantaneous Power (100 ms) | 4800 VA |
| Nominal DC Input Voltage | 12 VDC |
| AC Output Voltage | 120 VAC (100–130 VAC selectable) |
| Output Frequency | 60 Hz (50 Hz selectable) |
| Continuous AC Output Current | 23.3 AAC |
| Typical Efficiency | 90% |
| Maximum AC Input Current | 60 AAC |
| Continuous Battery Charge Output | 125 ADC |
| Maximum Battery Charging | 18 AAC / 125 ADC / 1700 VA |
| DC Input Voltage Range | 10.5 – 17 VDC |
| Advanced Battery Charging | Flooded, Gel, AGM, Lithium-Ion & Flow Chemistry |
| Communication Ports | MATE3 & HUB Communications |
| Remote Temperature Sensor | Included |
| Dimensions | 13 × 8.25 × 16.25 in |
| Weight | 61 lb |
| Shipping Weight | 67 lb |
| Operating Temperature | -40°C to 60°C |
| Relative Humidity | 93% |
| Certifications | UL1741, CSA C22.2 No.107.1, UL1778 |
| RoHS Compliant | Yes |
About OutBack Power:
OutBack Power is a leading manufacturer of advanced renewable energy systems, specializing in inverter chargers, energy storage integration, and off-grid power solutions designed for demanding residential and industrial applications.
Reliable Hybrid Power with Advanced Energy Management
The OutBack Power VFXR2812A combines flexible inverter operation, intelligent battery charging, and rugged environmental durability—making it an excellent solution for off-grid, backup, and hybrid renewable energy systems.
