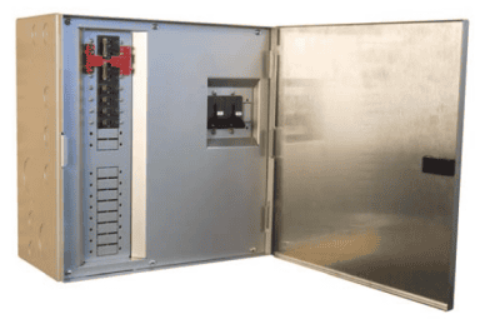

Outback Power GS Load Center for Radian Series

Special Features

• Comprehensive Integration: Designed specifically for the Radian Series, this load center simplifies the integration of Outback Power’s Radian inverters, battery banks, and additional components for efficient power distribution.
• Heavy-Duty Components: Equipped with inverter bus bars, ground bus bar, and a robust 500 Amp DC shunt assembly for reliable performance and energy monitoring.
• Flexible Breaker Capacity: Holds up to 18 panel-mount breakers ranging from 1 to 80A, and includes space for two larger 175A or 250A panel mount breakers.

Technology Overview

The Outback Power GS Load Center is engineered to support complex inverter and battery configurations with robust, high-quality bus bars and shunt assemblies. The 500 Amp DC shunt assembly allows for detailed current monitoring, essential for balanced and efficient power distribution in off-grid, grid-tied, and backup systems. This load center is compatible with Outback’s MATE3s system display and controller, enhancing ease of control.

Installation

• Mounting Compatibility: Designed to integrate seamlessly with the Outback Radian inverter series, providing a consolidated solution for electrical management.
• Pre-Configured Bus Bars: Pre-installed inverter, ground, and neutral bus bars simplify setup and installation.
• Breaker Options: Customizable breaker configuration supporting multiple small and large capacity breakers for various application needs (breakers not included).

Applications

• Residential Off-Grid Power Systems: Ideal for homeowners seeking a dependable, flexible power management solution for renewable energy storage and power distribution.
• Commercial Backup Power: Perfect for commercial applications where a robust, integrated system for energy management is essential.
• Grid-Tied and Hybrid Systems: Optimized for hybrid systems with Radian inverters, enabling smooth transition between grid power and battery backup.

Product Specifications
