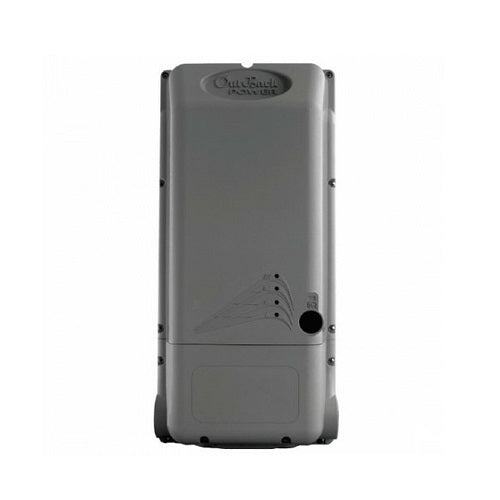

Outback Power Flexmax FM100-300VDC-AFCI MPPT Charge Controller

Outback Power Flexmax FM100-300VDC-AFCI MPPT Charge Controller

Regular price $1,062
Sale price $1,062 Regular price
SOLD OUT
Leave a Review

MPN No: FM100-300VDC-AFCI

Outback Power Flexmax FM100-300VDC-AFCI MPPT Charge Controller

Outback Power Flexmax FM100-300VDC-AFCI MPPT Charge Controller

Regular price $1,062
Sale price $1,062 Regular price

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Outback Power
Weight
19.75 lb
Dimension
(LXWXH) 23.0 x 8.8 x 6.0 inches

OutBack Power FM100-300VDC-AFCI FLEXmax 100A MPPT Solar Charge Controller

Introduction

The OutBack Power FM100-300VDC-AFCI FLEXmax 100A MPPT Solar Charge Controller is a high-performance charge controller designed for off-grid and grid-tied solar systems. With advanced Maximum Power Point Tracking (MPPT) technology, this charge controller optimizes energy harvesting from solar panels, ensuring efficient charging of battery systems.

Technology and Overview

The OutBack Power FM100-300VDC-AFCI FLEXmax 100A MPPT Solar Charge Controller utilizes advanced MPPT technology to maximize the efficiency of solar energy conversion. It is designed to handle a wide range of operating conditions and battery voltages, making it suitable for various solar installations.

Installation and Compatibility

This charge controller is compatible with both off-grid and grid-tied solar systems. It can be easily integrated into new or existing solar installations, providing reliable and efficient charging for battery systems.

Benefits and Applications

The OutBack Power FM100-300VDC-AFCI FLEXmax 100A MPPT Solar Charge Controller offers several benefits, including high charging capacity, advanced MPPT technology, and compatibility with a wide range of battery systems. It is suitable for residential, commercial, and industrial solar applications.

Specifications

Nominal Battery System Voltage 24, 36, & 48 Volts DC
Charging Range Output 20 - 68 Volts DC
Controller Type MPPT
Minimum Battery Bank Size 100 Amp-hours
Maximum Continuous Output Current 100 Amps
Maximum Input Current 64 Amps
Maximum Array Power (24V / 36V / 48V) 3500 / 5250 / 7000 Watts
Maximum PV System Voltage 300 Volts DC
Operating Input Voltage Range 30 - 290 Volts DC
Peak Efficiency 98.8% at 48VDC
Remote Display & Controller MATE3s compatible (purchased separately)
Data Logging 128 days
Enclosure Protection Rating IP54
