Enphase Three-Phase Network Protection Relay NPR-3P-208-NA
NPR-3P-208-NA
Enphase Three-Phase Network Protection Relay NPR-3P-208-NA

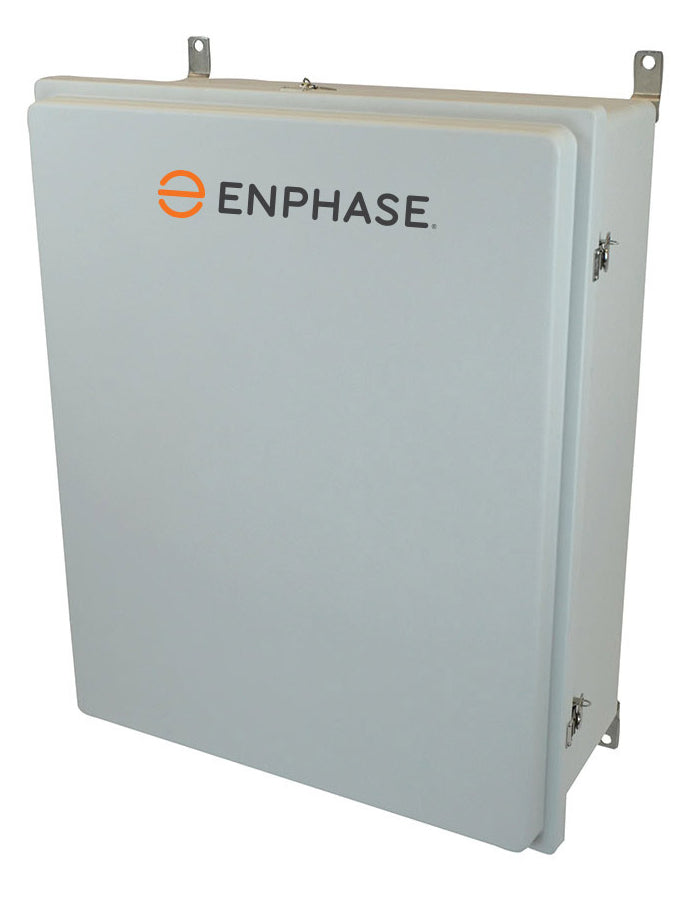

The Enphase NPR-3P-208-NA is a compact, pre-wired enclosure that integrates an IQ Envoy™ gateway, Mobile Connect™ modem, and contactor for seamless three-phase 208 VAC commercial PV system interconnection. It simplifies deployment by consolidating monitoring, protection, and communication in one NEMA 3R outdoor-rated unit.
Key Benefits
Integrated Protection & Control: Includes relay, contactor, and distribution blocks to meet interconnection standards.
Built-In Communications: IQ Envoy with Wi-Fi, Ethernet, and cellular (LTE-M) connectivity for full system visibility.
Production Monitoring Ready: Includes production CTs with ±0.5% accuracy; supports optional consumption CTs.
Pre-Wired Enclosure: All internal components are pre-wired, saving significant installation time and reducing errors.
Special Technology
SEL-547 Relay: Provides network protection for grid-tied three-phase PV systems.
Enphase IQ Envoy: Commercial-grade communication gateway with robust metering and monitoring capability.
Cellular Modem (CELLMODEM-M1): 4G LTE-M connectivity for remote system access in supported regions.
Warranty
Backed by a 5-year Enphase warranty for commercial-grade reliability and support.
Best Uses
Commercial Solar Installations: Supports Enphase IQ7 Series-based three-phase 208 VAC PV systems.
Grid Interconnection Compliance: Ideal for systems requiring UL 1741 SA and IEEE 1547 compliance.
Remote System Monitoring: Enables real-time remote access to energy data via Enlighten platform.
Specifications Table
| Specification | Data |
|---|---|
| Model Number | NPR-3P-208-NA |
| Rated Voltage | Three-phase 208/120 VAC, 60 Hz |
| Rated Current | 200 A |
| Max Breaker Size | 250 A |
| Relay | SEL-547 (interconnection protection) |
| Contactor | AF190 or AF205, 3P, 200 A |
| Included Gateway | Enphase IQ Envoy (ENV-IQ-AM3-3P) |
| Connectivity | Wi-Fi, Cellular (LTE-M), Ethernet (optional) |
| Monitoring | Integrated production CTs; optional consumption CTs (CT-200-SPLIT) |
| Enclosure Rating | NEMA 3R (Outdoor rated) |
| Dimensions (H × W × D) | 24 × 30 × 10 in |
| Weight | 76 lbs |
| Temperature Range | -13°F to 122°F (-25°C to +50°C) |
| Certifications | UL 1741, IEEE 1547:2018, CA Rule 21 |
| Warranty | 5 years |
