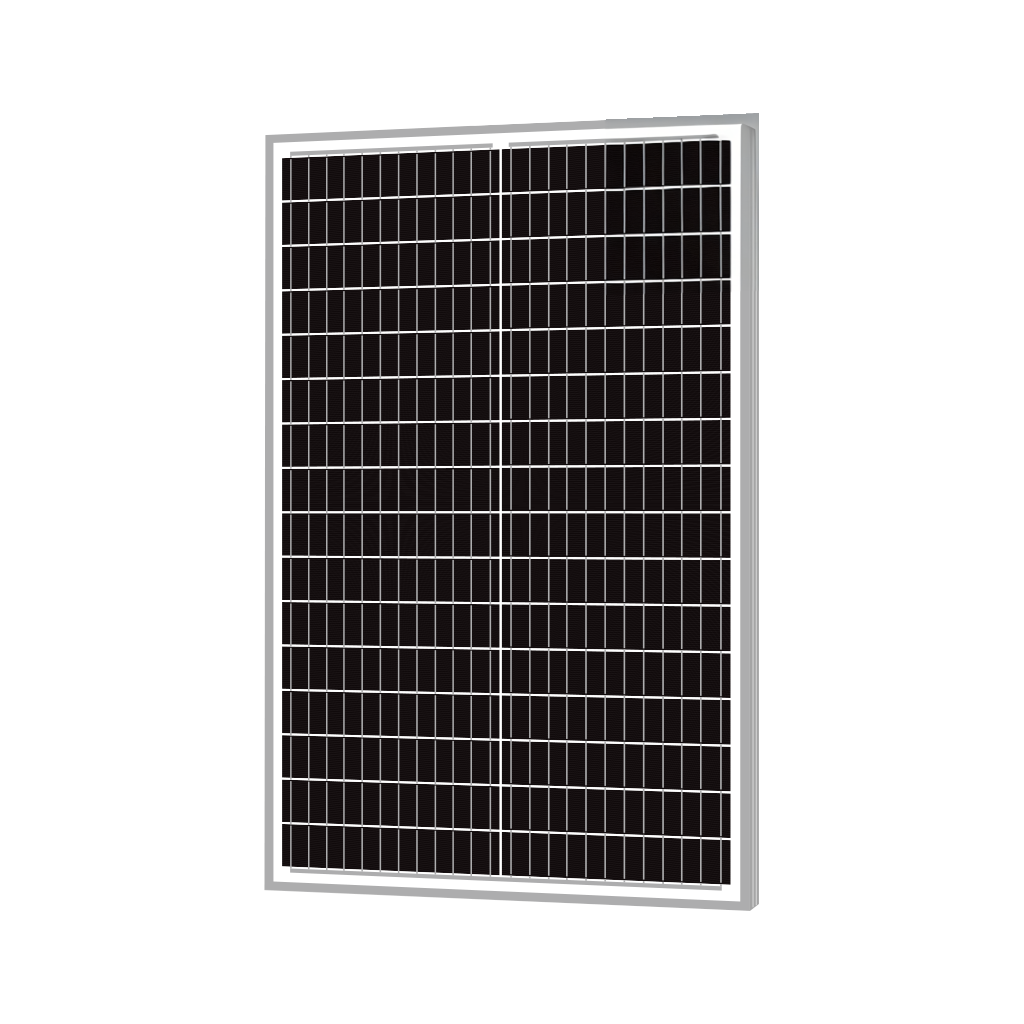

Newpowa 60W Monocrystalline 32 Cell Solar Panel NPA60S-12K-N
MPN No: NPA60S-12K-N
Expected ship date Jun 29 - Jul 06
In Stock
$81.25
Newpowa 60W Monocrystalline 32 Cell Solar Panel NPA60S-12K-N
Newpowa 60W Monocrystalline 32 Cell Solar Panel NPA60S-12K-N
Regular price
$81.25
$1.35/watt
New
238 IN STOCK
Newpowa 60W Monocrystalline 32 Cell Solar Panel NPA60S-12K-N
Newpowa 60W Monocrystalline 32 Cell Solar Panel NPA60S-12K-N
Available
MPN No: NPA60S-12K-N
Regular price
$81.25
$1.35/watt
Expected ship date Jun 29 - Jul 06
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$81.25
Newpowa 60W Monocrystalline 32 Cell Solar Panel NPA60S-12K-N
MPN No:
NPA60S-12K-N
Expected ship date Jun 29 - Jul 06
Newpowa 60W Monocrystalline 32 Cell Solar Panel NPA60S-12K-N
The Newpowa NPA60S-12K-N is a high-efficiency 60W monocrystalline solar panel designed for battery charging, RVs, marine systems, remote monitoring equipment, lighting systems, security applications, and small off-grid energy systems. Built with advanced 12BB multi-busbar technology and PERC-enhanced monocrystalline cells, this module delivers reliable power production, excellent efficiency, and long-term durability.
With up to 21.3% module efficiency, positive power tolerance, and rugged weather-resistant construction, the NPA60S-12K-N provides dependable charging performance for 12V battery systems and portable solar applications. Its compact size and durable design make it an excellent solution for users seeking reliable renewable energy generation in remote or mobile environments.
Key Technology
-
12BB Multi-Busbar Technology
Advanced 12BB cell architecture improves current collection efficiency while reducing resistance losses. -
PERC Monocrystalline Cells
Enhanced rear-cell passivation improves light capture and overall energy production. -
21.3% Module Efficiency
High conversion efficiency maximizes energy generation from a compact installation footprint. -
Positive Power Tolerance
Factory-tested output rated from 0 to +5W for dependable real-world performance. -
Extreme Weather Resistance
Designed to withstand snow loads up to 5400 Pa and wind loads up to 2400 Pa. -
PID Resistant Construction
Robust encapsulation and diffusion barriers help protect against potential-induced degradation. -
Reliable Temperature Performance
Designed to operate in temperatures ranging from below 0°F to 149°F. -
Quality-Controlled Manufacturing
Advanced cell sorting and testing procedures help ensure consistent output and long-term reliability.
Best Uses
-
RV Solar Systems
Provides dependable off-grid charging and energy production for recreational vehicles. -
Marine Applications
Ideal for boats, sailboats, and marine battery charging systems. -
Battery Maintenance Charging
Excellent for maintaining and charging 12V battery systems. -
Security & Monitoring Systems
Supports cameras, sensors, and remote monitoring equipment in off-grid locations. -
Remote Lighting Systems
Provides renewable energy for solar-powered lighting and low-power applications.
Warranty
- Product Warranty: 2 Years
- Linear Power Warranty: 25 Years
- End of Year 5 Power Output: 97%
- End of Year 10 Power Output: 94.28%
- End of Year 15 Power Output: 90.88%
- End of Year 20 Power Output: 87.48%
- End of Year 25 Power Output: 80.68%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Newpowa |
| Model | NPA60S-12K-N |
| Cell Type | Monocrystalline Silicon |
| Cell Configuration | 32 Cells |
| Technology | 12BB Multi-Busbar with PERC |
| Rated Power (Pmax) | 60W |
| Module Efficiency | 21.3% |
| Power Tolerance | 0 ~ +5W |
| Maximum Power Voltage (Vmp) | 18.28V |
| Maximum Power Current (Imp) | 3.29A |
| Open Circuit Voltage (Voc) | 21.61V |
| Short Circuit Current (Isc) | 3.48A |
| Temperature Coefficient (Voc) | -(80±10) mV/°C |
| Temperature Coefficient (Isc) | +(0.065±0.015)%/°C |
| Temperature Coefficient (Pmax) | -(0.5±0.05)%/°C |
| NOCT | 47 ± 2°C |
| Mechanical Load Rating | 5400 Pa Front Load / 2400 Pa Rear Load |
| Dimensions | 29.53 × 17.95 × 1.18 in |
| Weight | 9.10 lb |
| Operating Temperature Range | Below 0°F to 149°F |
| Packing Dimensions | 31.30 × 19.72 × 2.56 in |
| Package Quantity | 1 Module per Carton |
About Newpowa:
Newpowa specializes in solar products for off-grid, recreational, marine, and portable energy applications. The company offers dependable solar panels, batteries, charge controllers, and complete solar solutions designed to provide reliable renewable power for remote locations, mobile systems, and everyday off-grid energy needs.
Reliable Solar Power for Off-Grid Energy Applications
The Newpowa NPA60S-12K-N combines advanced 12BB monocrystalline technology, excellent efficiency, rugged weather resistance, and dependable long-term performance. Its 60W output makes it an excellent choice for RVs, marine systems, battery maintenance, security equipment, remote monitoring devices, and a wide range of off-grid solar applications.
