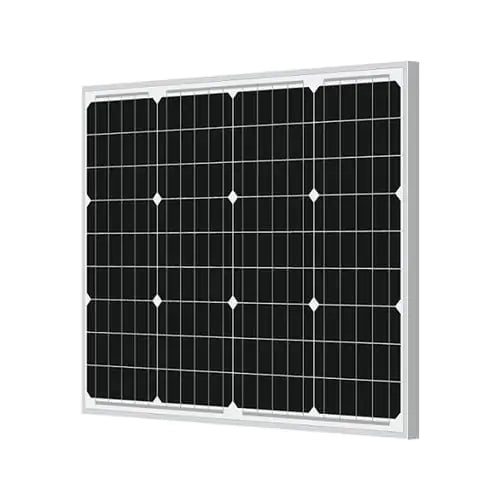

Newpowa 50W Monocrystalline 10BB Cell Solar Panel NPA50S-12J-N
MPN No: NPA50S-12J-N
Expected ship date Jun 29 - Jul 06
In Stock
$72.50
Newpowa 50W Monocrystalline 10BB Cell Solar Panel NPA50S-12J-N
Newpowa 50W Monocrystalline 10BB Cell Solar Panel NPA50S-12J-N
Regular price
$72.50
$1.45/watt
New
LESS THAN 50
Newpowa 50W Monocrystalline 10BB Cell Solar Panel NPA50S-12J-N
Newpowa 50W Monocrystalline 10BB Cell Solar Panel NPA50S-12J-N
Available
MPN No: NPA50S-12J-N
Regular price
$72.50
$1.45/watt
Expected ship date Jun 29 - Jul 06
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$72.50
Newpowa 50W Monocrystalline 10BB Cell Solar Panel NPA50S-12J-N
MPN No:
NPA50S-12J-N
Expected ship date Jun 29 - Jul 06
Newpowa 50W Monocrystalline 10BB Cell Solar Panel NPA50S-12J-N
The Newpowa NPA50S-12J-N is a compact, high-efficiency 50W monocrystalline solar panel designed for battery maintenance, RVs, marine systems, remote monitoring equipment, security systems, lighting applications, and small off-grid power systems. Built with advanced 10BB multi-busbar technology and PERC-enhanced monocrystalline cells, this module delivers dependable energy production and excellent conversion efficiency in a durable, lightweight design.
With up to 21.8% module efficiency, positive power tolerance, and rugged weather-resistant construction, the NPA50S-12J-N provides reliable charging performance for 12V battery systems and remote energy applications. Its compact footprint and long-term warranty protection make it an excellent solution for users seeking dependable solar power in off-grid environments.
Key Technology
-
10BB Multi-Busbar Technology
Advanced multi-busbar cell design improves current collection efficiency while reducing electrical resistance and power loss. -
PERC Monocrystalline Cells
Enhanced cell architecture increases light absorption and boosts overall energy production. -
21.8% Module Efficiency
High conversion efficiency maximizes energy generation from a compact installation area. -
Positive Power Tolerance
Factory-tested power output rated from 0 to +5W for dependable real-world performance. -
Extreme Weather Resistance
Engineered to withstand snow loads up to 5400 Pa and wind loads up to 2400 Pa. -
PID Resistant Construction
Robust encapsulation and diffusion barriers help protect against potential-induced degradation. -
Reliable Temperature Performance
Designed to operate efficiently across a wide range of environmental conditions. -
Quality-Controlled Manufacturing
Advanced cell sorting and testing procedures ensure consistent output and long-term reliability.
Best Uses
-
RV Solar Systems
Provides dependable charging and off-grid energy production for recreational vehicles. -
Marine Applications
Ideal for maintaining batteries and powering equipment on boats and other marine vessels. -
Battery Maintenance Charging
Perfect for keeping 12V battery systems charged and ready for use. -
Security & Monitoring Systems
Supports cameras, sensors, and remote monitoring equipment in off-grid locations. -
Remote Lighting Systems
Provides renewable energy for solar-powered lighting and low-power applications.
Warranty
- Product Warranty: 2 Years
- Linear Power Warranty: 25 Years
- End of Year 5 Power Output: 97%
- End of Year 10 Power Output: 94.28%
- End of Year 15 Power Output: 90.88%
- End of Year 20 Power Output: 87.48%
- End of Year 25 Power Output: 80.68%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Newpowa |
| Model | NPA50S-12J-N |
| Cell Type | Monocrystalline Silicon |
| Cell Configuration | 30 Cells |
| Technology | 10BB Multi-Busbar with PERC |
| Rated Power (Pmax) | 50W |
| Module Efficiency | 21.8% |
| Power Tolerance | 0 ~ +5W |
| Maximum Power Voltage (Vmp) | 17.29V |
| Maximum Power Current (Imp) | 2.90A |
| Open Circuit Voltage (Voc) | 20.29V |
| Short Circuit Current (Isc) | 3.09A |
| Temperature Coefficient (Voc) | -(80±10) mV/°C |
| Temperature Coefficient (Isc) | +(0.065±0.015)%/°C |
| Temperature Coefficient (Pmax) | -(0.5±0.05)%/°C |
| NOCT | 47 ± 2°C |
| Mechanical Load Rating | 5400 Pa Front Load / 2400 Pa Rear Load |
| Dimensions | 18.90 × 22.83 × 1.18 in |
| Weight | 7.33 lb |
| Packing Dimensions | 20.67 × 24.61 × 2.56 in |
| Package Quantity | 1 Module per Carton |
About Newpowa:
Newpowa specializes in solar products for off-grid, recreational, marine, and portable energy applications. The company offers dependable solar panels, batteries, charge controllers, and complete solar solutions designed to provide reliable renewable power for remote locations, mobile systems, and everyday off-grid energy needs.
Reliable Solar Power for Off-Grid Energy Applications
The Newpowa NPA50S-12J-N combines advanced 10BB monocrystalline technology, excellent efficiency, durable weather resistance, and dependable long-term performance. Its 50W output makes it an excellent choice for RVs, marine systems, battery maintenance, security equipment, remote monitoring devices, and a wide range of small off-grid solar applications.
Why Buy From US Solar Supplier
US Solar Supplier is an American-founded company based in Kentucky dedicated to offering top-quality solar components from trusted manufacturers. We provide competitive pricing, dependable inventory, and products backed by warranties you can trust.
Our inventory is updated daily with the latest solar technologies, and our experienced team is ready to assist with product selection, system design, and installation guidance.
Need Assistance?
Have questions before you order? Call 1-800-230-7004 to speak with our knowledgeable support team. We’re here to help with product details, compatibility questions, or purchasing support.
