NeoVolta 7.6kW Hybrid Inverter NV7600 Split-Phase 120/240V Battery-Ready Grid-Tie & Backup

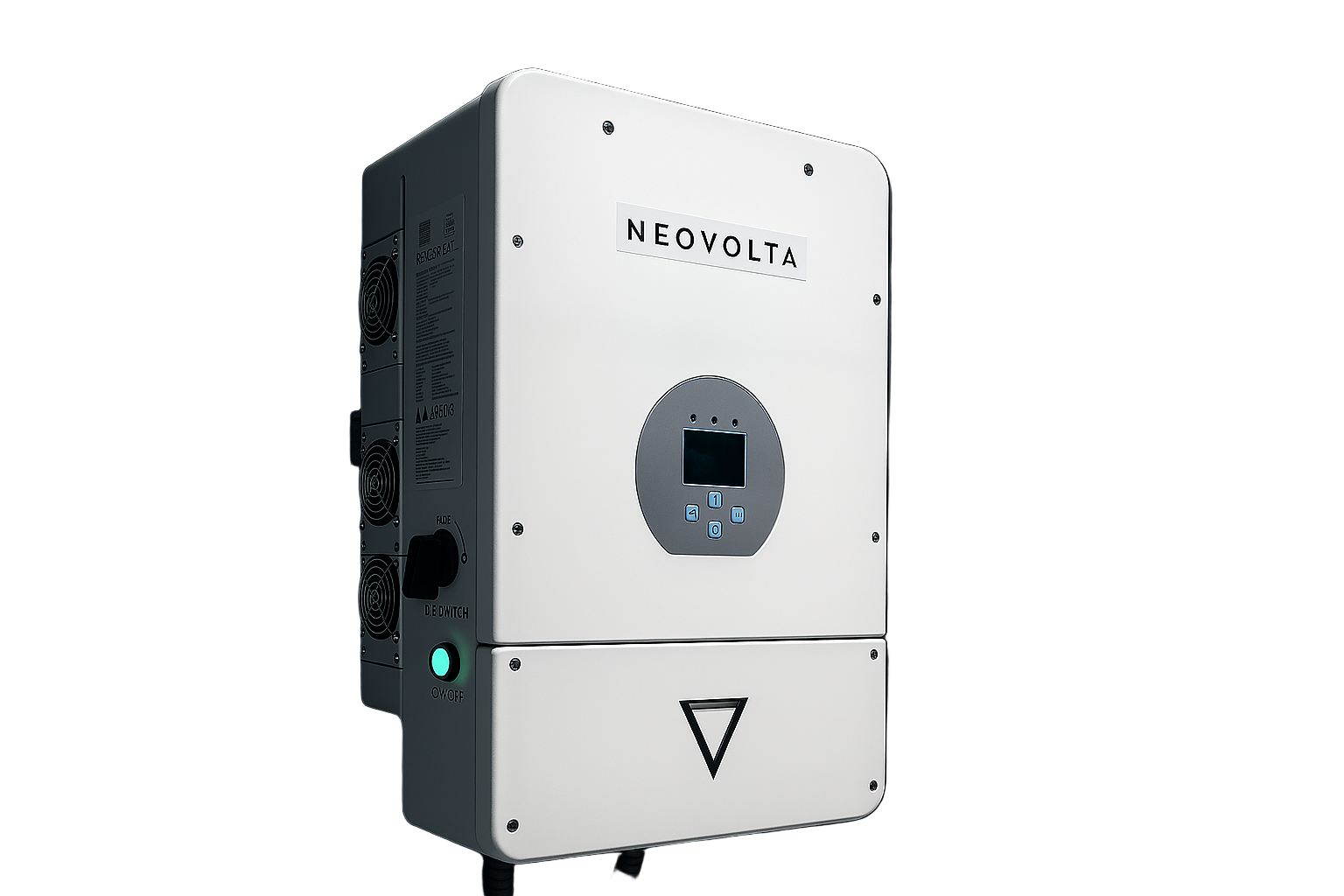

The NeoVolta NV7600 is a residential hybrid inverter for on-grid/off-grid operation with DC & AC solar and generator input. It offers dual MPPTs, up to 11.4 kW PV input, 7.6 kW rated AC output at 120/240 Vac (also supports 120/208 Vac), and a compact Type 3R outdoor enclosure.
Key Benefits
Flexible Power Modes: On-grid and off-grid operation with AC-coupled PV and generator readiness.
High Solar Throughput: Up to 11,400 W PV input across 2 MPPTs (2 strings per tracker).
Robust Output: 7,600 W rated with 15,200 W peak (10 s) for motor starts.
Scalable: Parallel up to 4 units at 120/240 Vac (3 units at 120/208 Vac).
Outdoor-Ready & Quiet: Type 3R enclosure with intelligent air cooling and <30 dB noise.
Special Technology
Dual MPPT Architecture: 150–425 V MPPT window, 500 Vdc max Voc, high >99% MPPT efficiency.
Comprehensive Protection: Reverse-polarity, GFDI/monitoring, island protection, RCD, insulation monitoring, and optional AFCI; Type II surge protection on DC & AC.
Connected Monitoring: RS485/RS232/CAN with optional Wi-Fi, Bluetooth, 4G, LAN.
Warranty
15-Year Manufacturer Warranty.
Best Uses
Residential PV + Storage: Self-consumption, TOU shifting, and whole-home backup with LFP batteries.
Generator-Assisted Sites: Integrates AC solar or generator input to maintain loads during outages.
Specifications Table
| Specification | Data |
|---|---|
| Model | NV7600 |
| PV Input | |
| Max PV Input Power | 11,400 W (inverter self-limits combined solar input) |
| Max PV Voltage (Voc) | 500 Vdc |
| Startup Voltage | 125 V |
| MPPT Voltage Range | 150 – 425 Vdc |
| Rated PV Voltage | 370 Vdc |
| Max Operating Current @ MPPT | 26 A + 26 A |
| Max Short-Circuit Current @ MPPT | 44 A + 44 A |
| MPPTs / Strings | 2 MPPTs / 2+2 strings |
| AC Input / Output | |
| Rated AC Output (W / VA) | 7,600 W / 8,360 VA |
| Max AC Solar or Generator Input | 8,360 VA |
| Rated / Max AC I/O Current | 31.7 A / 34.8 A |
| Max Continuous AC Passthrough | 50 A (grid → load) |
| Peak Power (off-grid) | 15,200 W for 10 s |
| Nominal Voltages | 120/240 Vac split-phase; 120/208 Vac three-phase |
| Frequency | 60 Hz (55–65 Hz range) |
| Grid Form / THDi | 2L + N + PE / <3% |
| Parallel Capability | Up to 4 units (120/240 Vac) · up to 3 units (120/208 Vac) |
| Battery (DC) | |
| Battery Type | LiFePO₄ (LFP) |
| Battery Voltage Range | 40–60 Vdc |
| Max Charge / Discharge Current | 190 A / 190 A |
| Battery Inputs | 1 (positive & negative) |
| Equipment & Protection | |
| Integrated Protections | Reverse-polarity, AC OC/OV, short-circuit, thermal, load drop, surge; monitoring for GFDI, earth fault, islanding; DC switch; insulation & RCD detection; optional AFCI |
| Surge Protection | Type II (DC) and Type II (AC) |
| Communications | RS485, RS232, CAN; Wi-Fi/Bluetooth/4G/LAN optional |
| General | |
| Operating Temperature | −40 °F to 140 °F |
| Humidity / Altitude | Up to 100% RH; 2000 m (10% derate at 3000 m) |
| Noise | < 30 dB |
| Enclosure | Type 3R (outdoor) |
| Topology / OVC | Non-isolated / OVC II (DC), OVC III (AC) |
| Dimensions (W × H × D) | 16.5 × 26.4 × 9.2 in |
| Weight | 66 lb |
| Cooling | Intelligent air cooling |
| Max / MPPT Efficiency | 97.6% / >99.0% |
| Certifications | IEEE 1547.1 SRD V2.0; UL 1741 CRD; UL 1741 SB; UL 1699B; CEC |
| Warranty | 15 Years |
| Load Start Capability | Up to 80 A |
