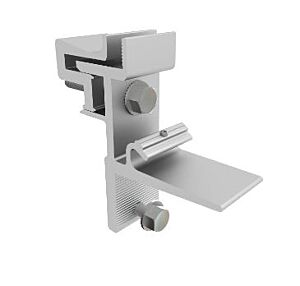

SunModo NANORACK-UNI Universal Bracket

About the NanoRack System

The SunModo NanoRack System is a rail-less solar mounting solution designed for fast and efficient installation, primarily on residential composition shingle roofs. Here's a breakdown of its key aspects.

Eliminates the Need for Rails: Unlike traditional solar mounting systems that require rails to attach the solar panels, the NanoRack system mounts the panels directly to the roof using specialized brackets and hardware.

Ground Assembly: A significant advantage is that much of the assembly can be done on the ground, with components attached directly to the modules before lifting them onto the roof. This simplifies the process and can save time and labor.

Self-Aligning: The system features a patent-pending hook-and-loop design that automatically aligns the solar panels as they are installed, eliminating the need for precise measuring between modules after the initial row.

Key Components of the NanoRack System:

NanoRack Module Hook (NANORACK-HOOK): Attaches to the module frame and hooks onto the Universal Bracket.

NanoRack Universal Bracket (NANORACK-UNI): Connects to the roof deck via the NanoPlus base and interlocks with the Module Hook to secure the panels.

NanoPlus Base (NANOPLUS-B): The foundation that attaches directly to the roof deck using screws.

NanoRack End Bracket (NANORACK-END): Provides a clean and secure finish for the outer edges of the solar array.

Grounding Lug (GRND-SMR): For code-compliant bonding to the racking system.

Wire Management Clips: To organize and secure PV wires and cables.

MLPE Mount (MLPE-MODULE): For attaching Module-Level Power Electronics (MLPEs) like microinverters or optimizers.

Skirts (Optional): To provide a clean aesthetic finish around the perimeter of the array

Key Benefits

• Universal Module Compatibility: Accommodates a wide range of module frame heights, simplifying procurement and ensuring a perfect fit.
• Rapid, Tool-Free Installation: Significantly reduces installation time thanks to intuitive, tool-less module placement.
• Superior Structural Performance: Engineered for enhanced structural integrity and exceptional wind uplift resistance, ensuring long-term reliability.
• Simplified Inventory Management: One versatile bracket design covers diverse applications, streamlining inventory and logistics.
• Broad Roof Compatibility: Perfectly suited for both asphalt shingle and metal roof surfaces, offering versatile deployment options.

Special Technology

• Precision-engineered for compatibility with the SunModo NanoRack system
• Features integrated grounding and bonding for code-compliant installations
• Includes patented components to ensure UL 2703 listing and safety
• Designed for top-down clamping, allowing for smooth array alignment
• Anodized aluminum construction provides superior corrosion resistance

Warranty

SunModo offers a 25-year limited warranty on the NANORACK-UNI bracket, covering defects in materials and manufacturing under standard environmental conditions.

Best Use

• Suitable for residential and commercial rooftop solar installations
• Ideal for use with framed photovoltaic modules across multiple brands
• Designed for asphalt shingle, standing seam, and corrugated metal roofs
• Supports UL-compliant grounding and bonding without additional tools

Specifications Table

About SunModo

SunModo is a leading innovator in solar racking solutions, providing cost-effective mounting systems for residential, commercial, and industrial applications. Headquartered in Vancouver, Washington, SunModo focuses on installer-friendly products that reduce labor time while meeting rigorous safety and code standards.

From rail-less to rail-based systems, SunModo’s engineering-driven solutions are trusted by professionals across North America to streamline solar installations with durability, precision, and performance.
